Ifm | SKU:
IF-DI5026-E

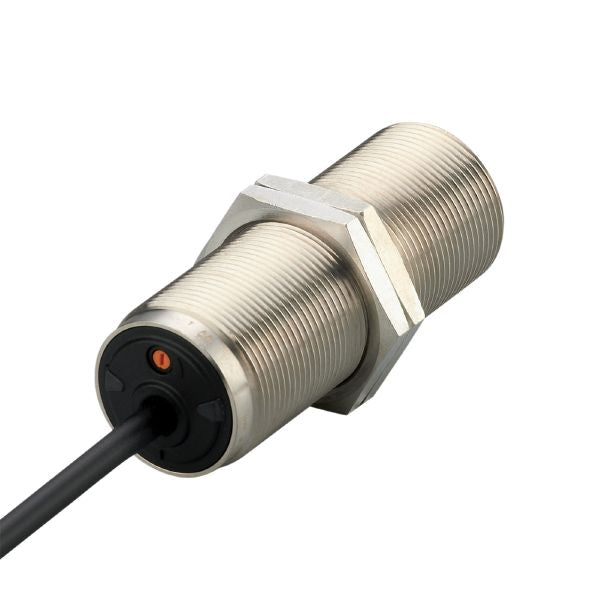

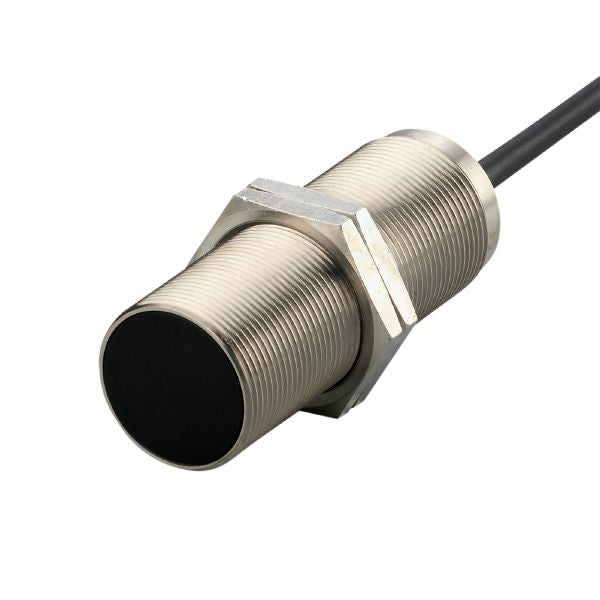

Ifm DI5026 Compact Evaluation Unit For Speed Monitoring
$231.11 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm DI5026 Compact Evaluation Unit For Speed Monitoring is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm DI5026 Compact Evaluation Unit For Speed Monitoring
$231.11 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / closed; (configurable) |
| Sensing range [mm] | 10 |
| Communication interface | IO-Link |
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 80 |
Application
| Application | simple evaluation of rotating and linear movement with regard to underspeed; blocking |
|---|
Electrical data
| Nominal voltage DC [V] | 10...36 |
|---|---|
| Current consumption [mA] | < 22 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Short-time current rating of switching output [mA] | 250 |
| Short-circuit proof | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 10 |
|---|---|
| Sensing range adjustable | no |
| Operating distance [mm] | 0...8.1 |
Measuring/setting range
| Setting range [Imp/min] | 5...3600 |
|---|---|
| Measuring principle | inductive |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 10 |
Reaction times
| Start-up delay [s] | 0...30 |
|---|---|
| Max. damping frequency [Imp/min] | 18000 |
Software / programming
| Adjustment of the switch point | Multiturn potentiometer or IO-Link |
|---|
Interfaces
| Communication interface | IO-Link |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| MTTF [years] | 656 |
|---|
Mechanical data
| Weight [g] | 182.7 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 80 |
| Thread designation | M30 x 1.5 |
| Material | brass special coating; PA; TPE-U |
| Tightening torque [Nm] | 50 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Electrical connection
| Connection | Cable: 2 m, PUR; 3 x 0.5 mm² |
|---|
