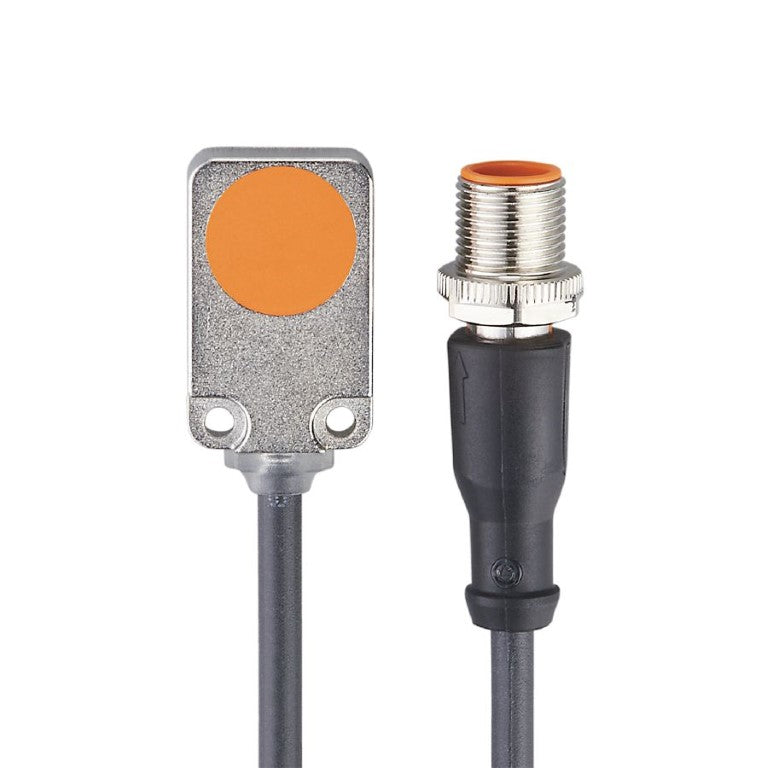

Efector Ifm IQ2003 IQ23008BAPKG/0.3M/PUR/US Inductive Sensor
Product Characteristics:
- Electrical Design: PNP
- Output Function: Normally closed
- Sensing Range: 8 mm
- Housing: Rectangular
- Dimensions: 20 x 8 x 32 mm
Special Features:
- Increased sensing range
Electrical Data:
- Operating Voltage: 10...30 DC
- Current Consumption: < 10 mA
- Protection Class: III
- Reverse Polarity Protection: Yes
- Max. Voltage Drop Switching Output DC: 2.5 V
- Permanent Current Rating of Switching Output DC: 100 mA
- Switching Frequency DC: 400 Hz
- Short-Circuit Protection: Yes
- Overload Protection: Yes
Detection Zone:
- Sensing Range: 8 mm
- Real Sensing Range (Sr): 8 ± 10%
- Operating Distance: 0...6.48 mm
