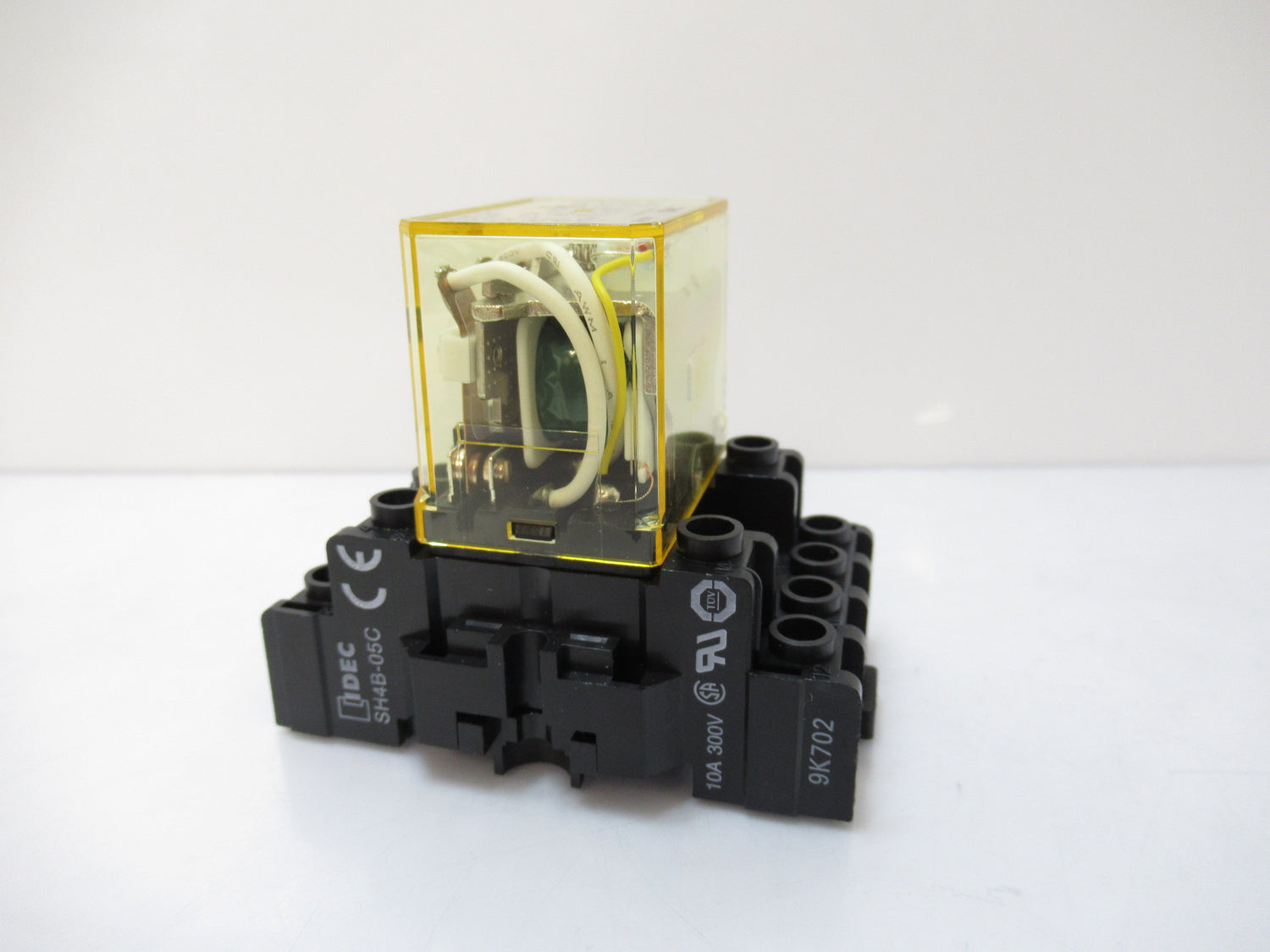

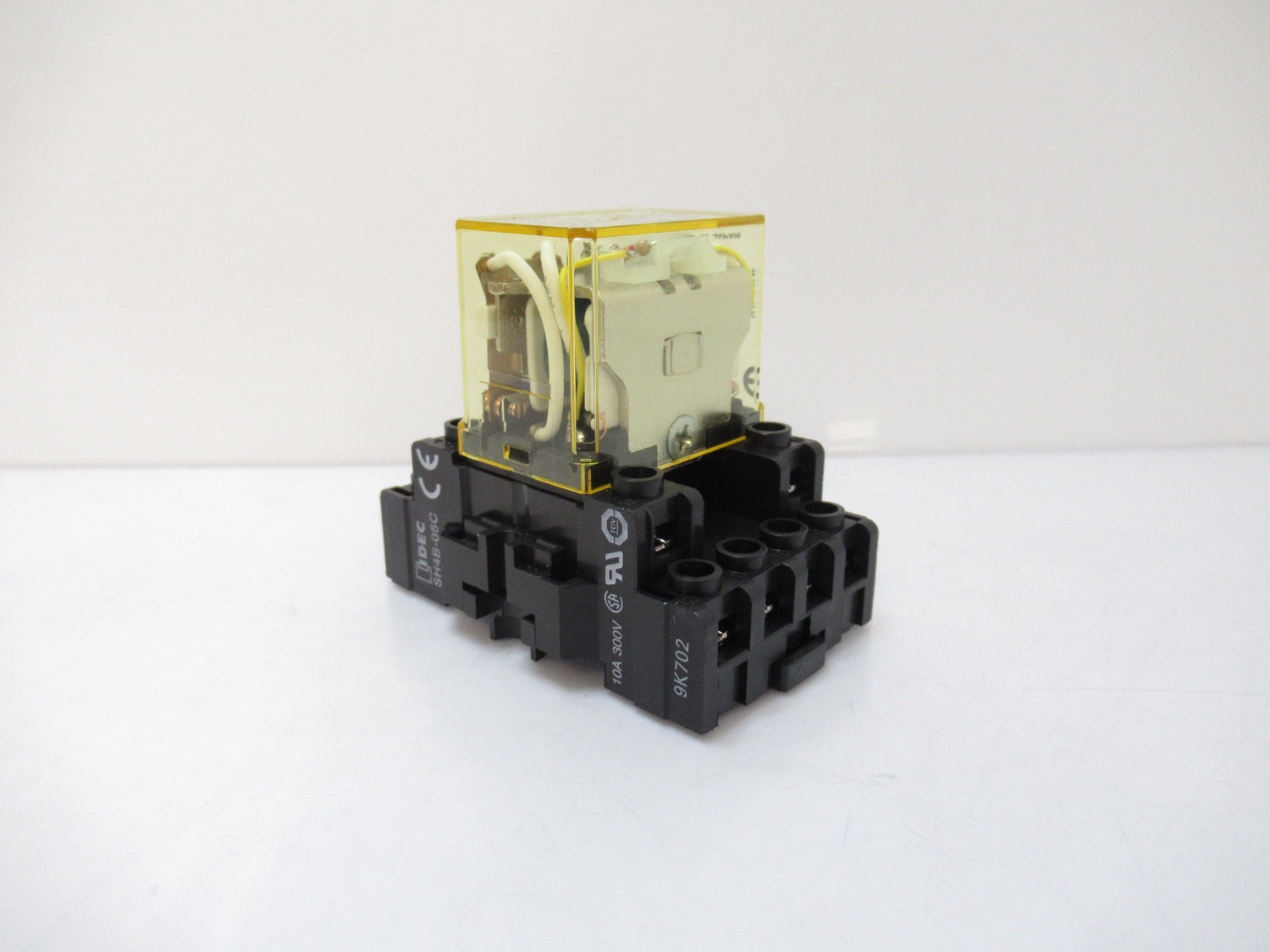

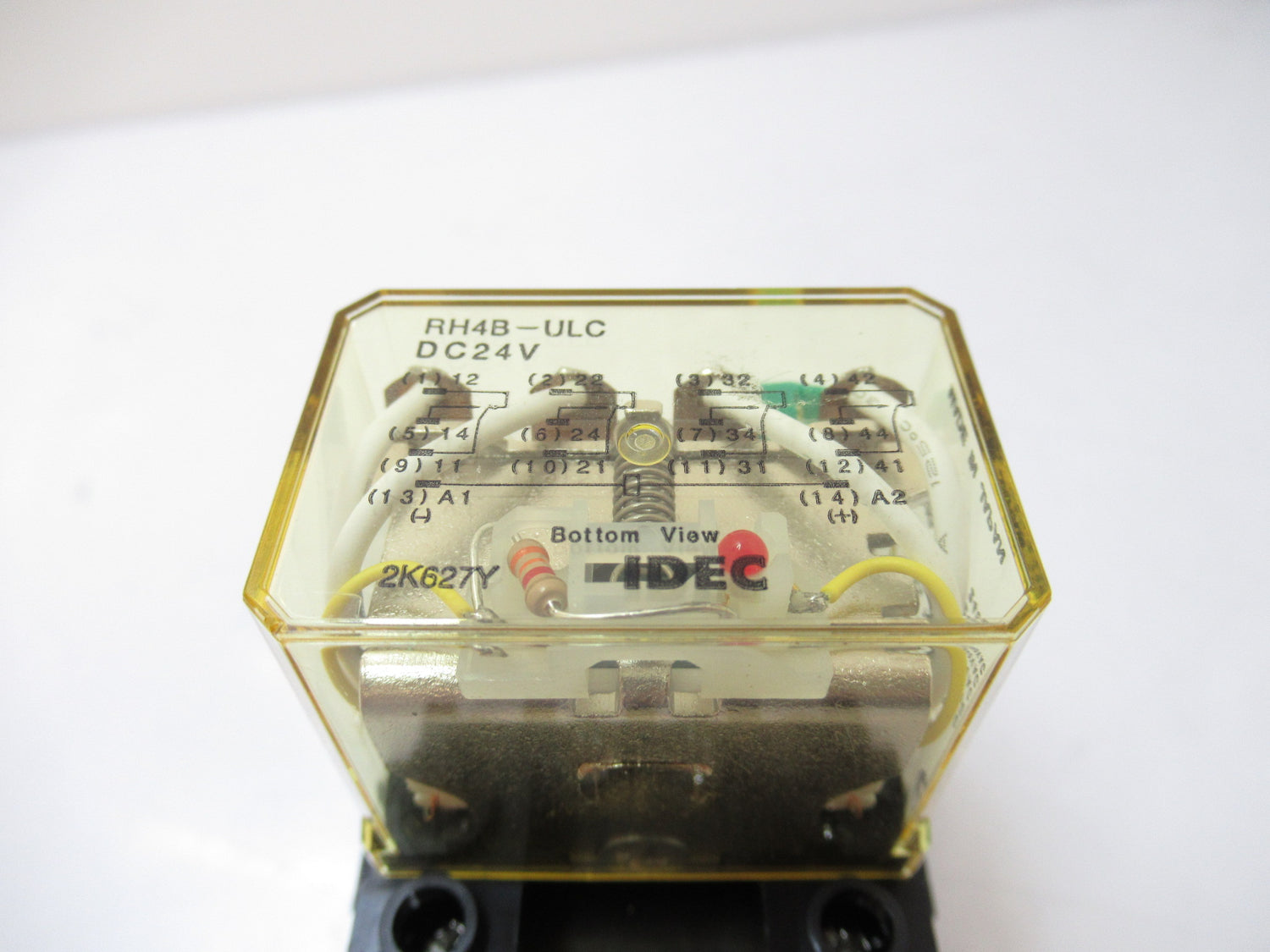

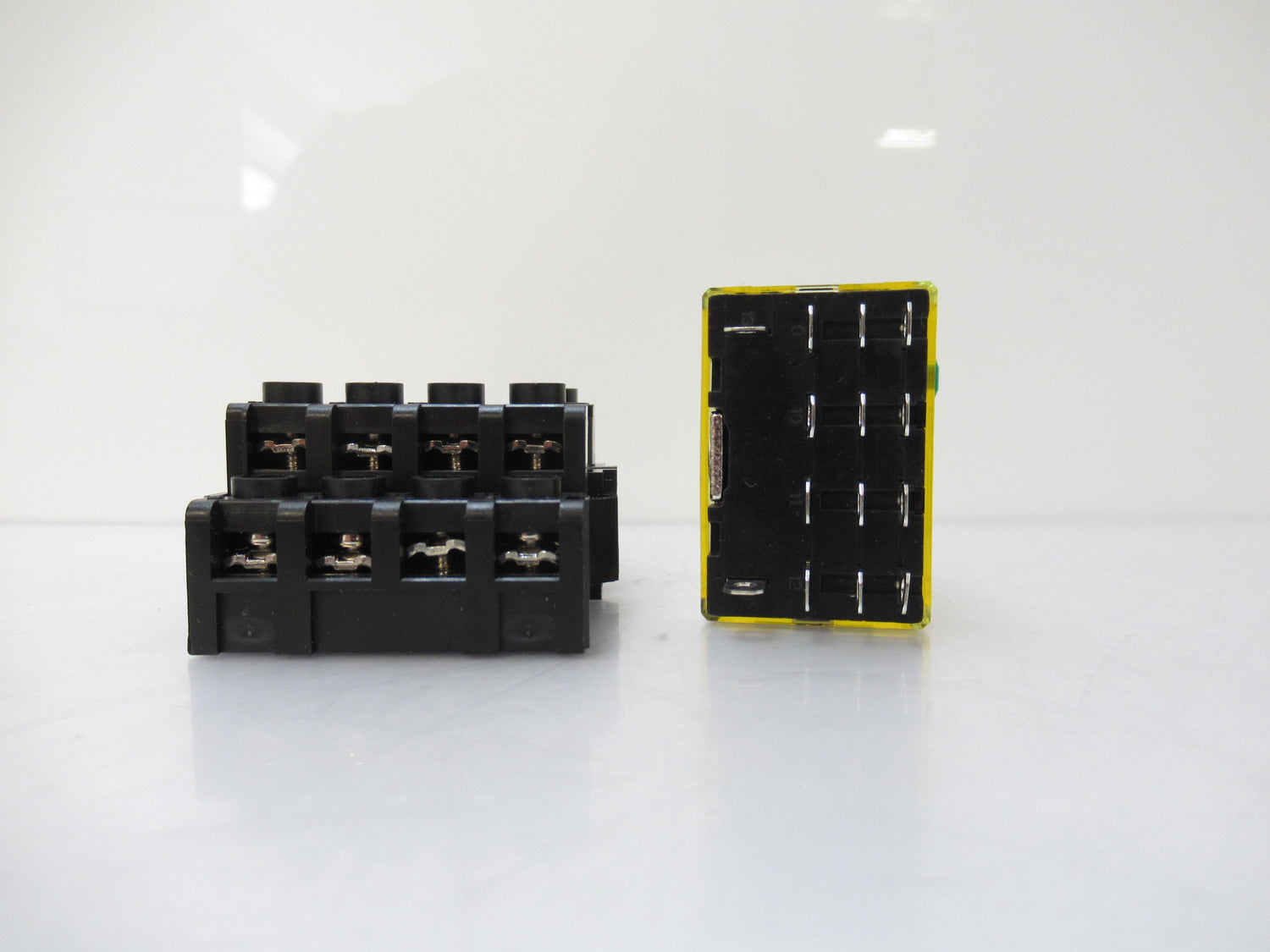

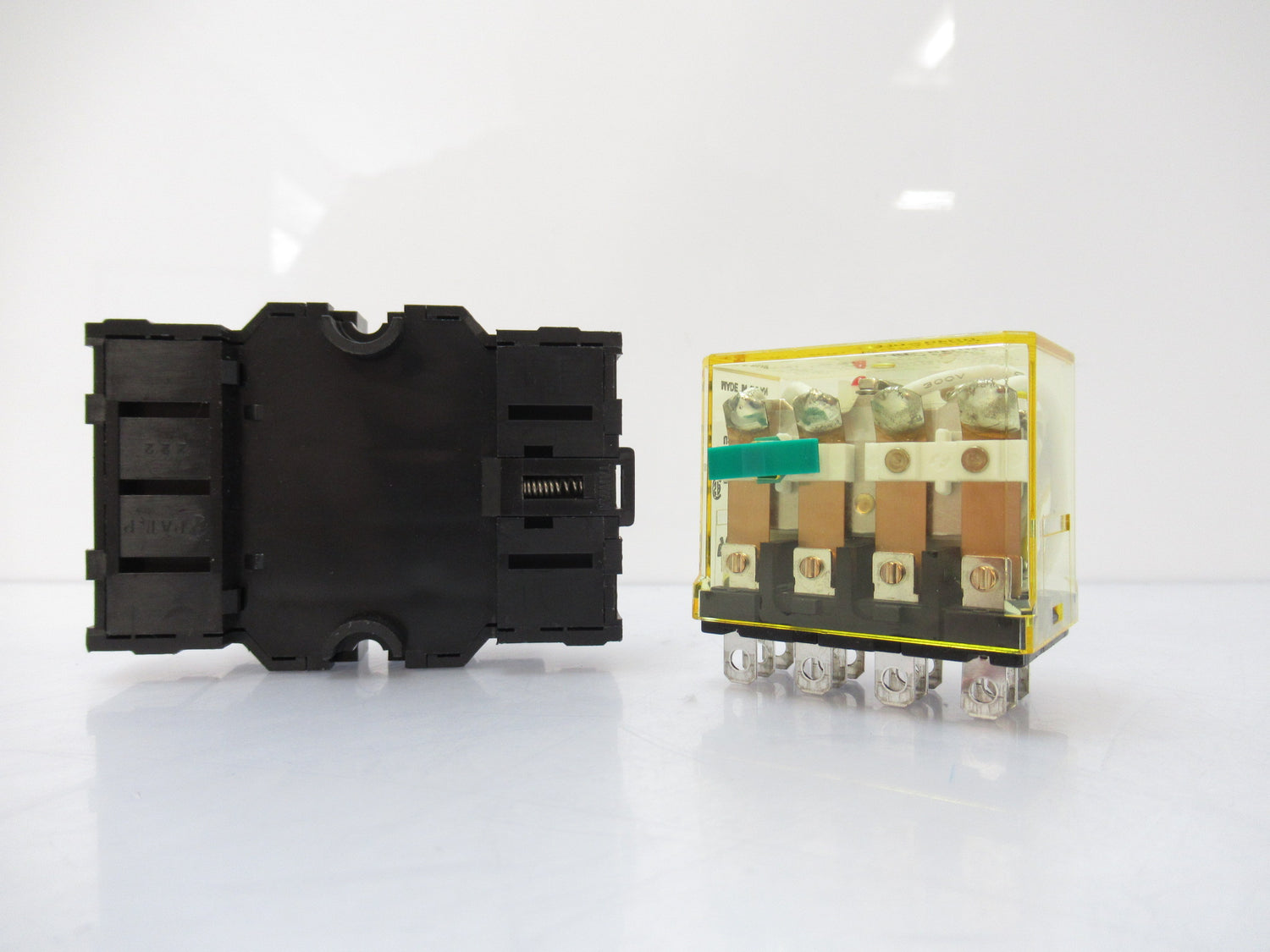

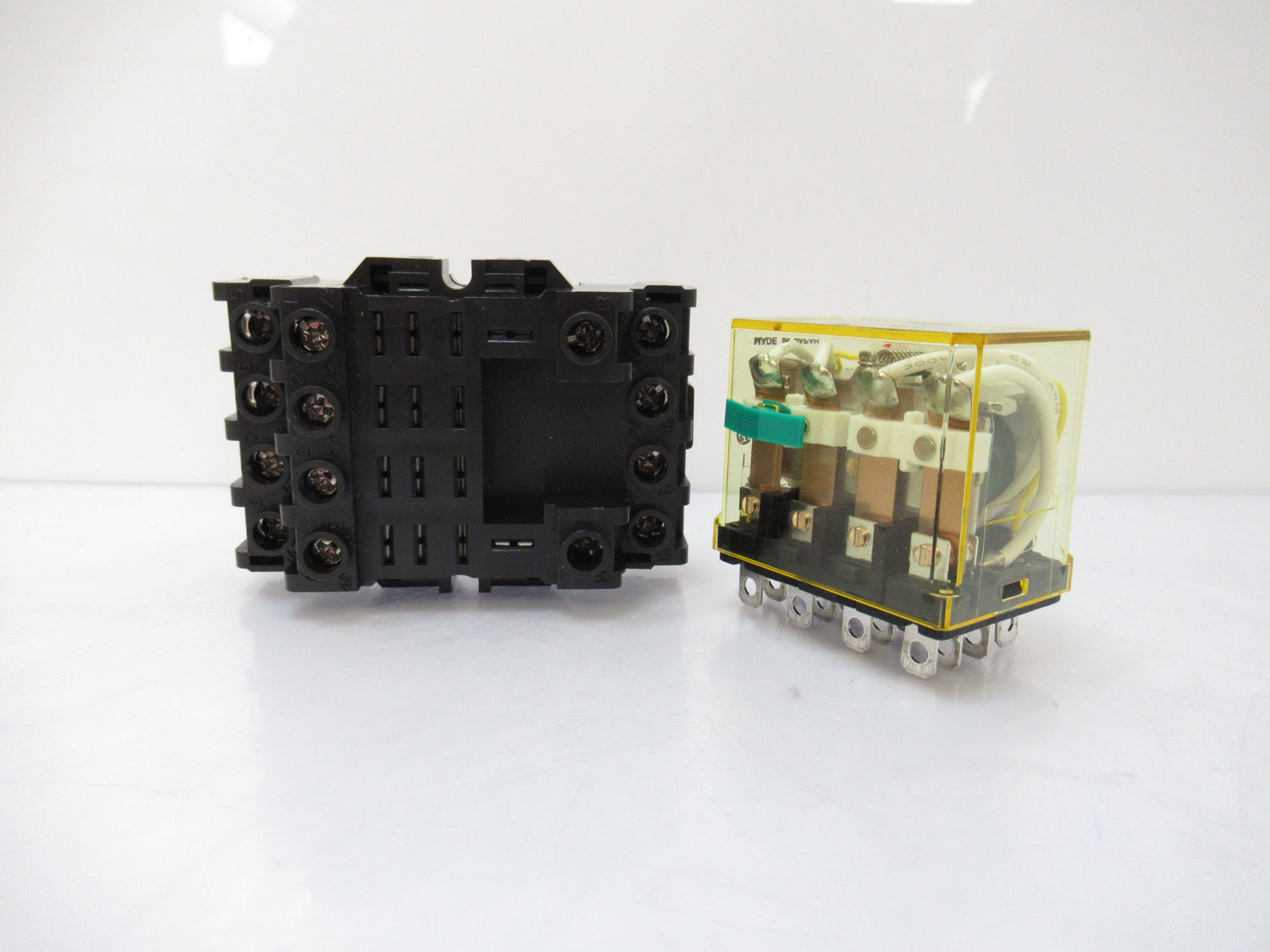

RH4B-ULC SH4B-05C IDEC Power Relay 30V DC Assembly With Relay Socket

RH4B-ULC RH4BULC SH4B-05C SH4B05C

IDEC

Power Relay Assembly With Relay Socket

(New And Sold By Kit)

The RH Series Compact Power Relay With 10A SPDT Through 4PDT Contacts And A Large Capacity.

Description

• Power Relay: RH4B
• Contact Configuration: 4PDT
• Coil Voltage: 120V AC
• Relay Mounting: Panel Mount
• Contact Voltage VAC: 110V DC
• Relay Terminals: Quick Connect
• Contact Voltage VDC: 30V DC
• Coil Resistance: 7.36 kohm
• Approvals & Standards: CE, UL

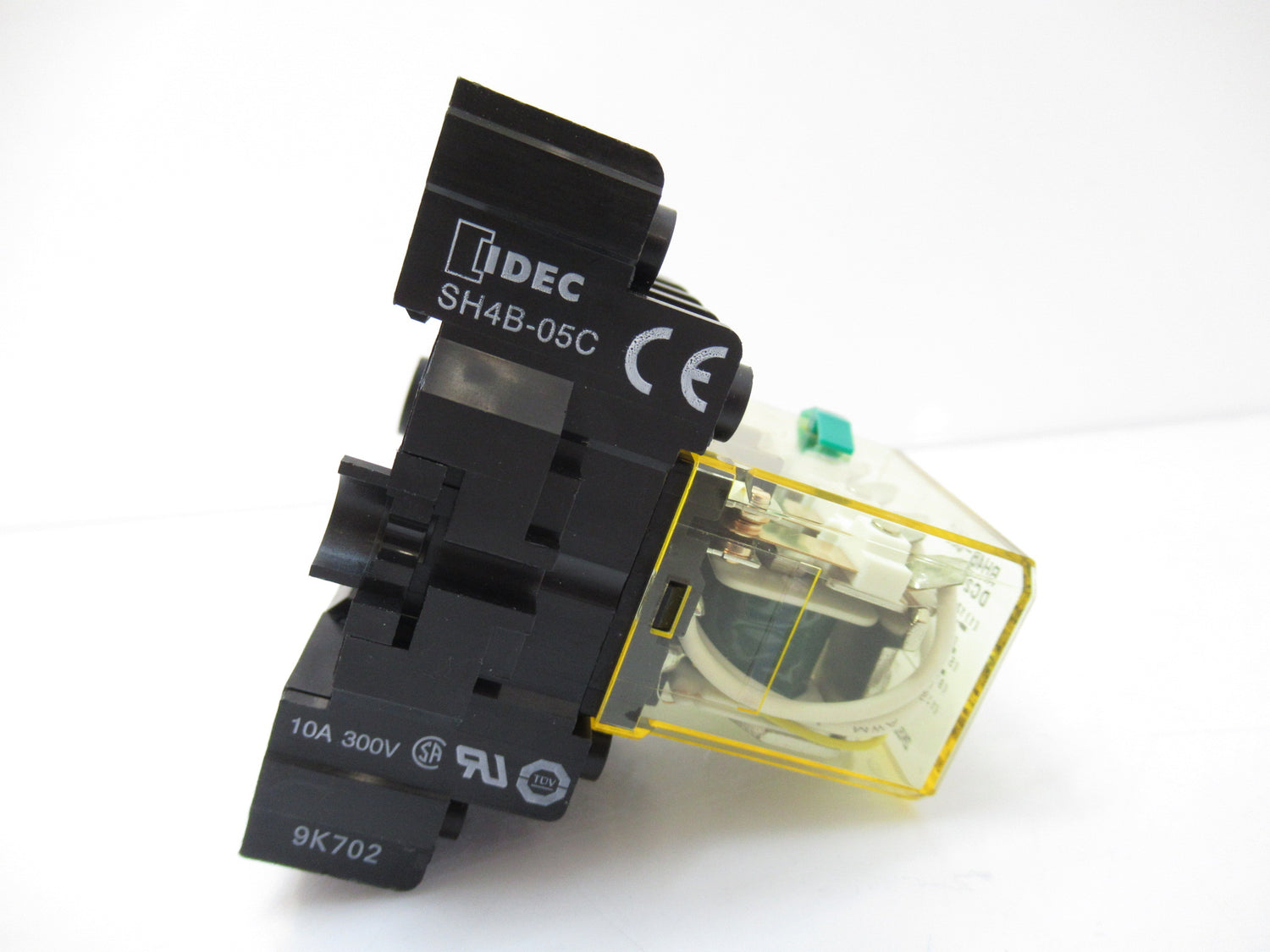

The SH4B-05C Is A 14-Pin Finger-Safe Relay Socket With Screw Terminals. Suitable For Use With RH4B Relays And Blade Terminal Models. The Compact Midget Size Of This Socket Saves Space And Is Ideal For Snap-Mount/Surface Mounting.

• Relay Socket: SH4B
• Socket Mounting: Panel
• Socket Terminals: Screw
• No. Of Pins: 14 Pins
• Current Rating: 10A
• Voltage Rating: 300V
