ZAL-VB6 ZALVB6
Schneider Electric

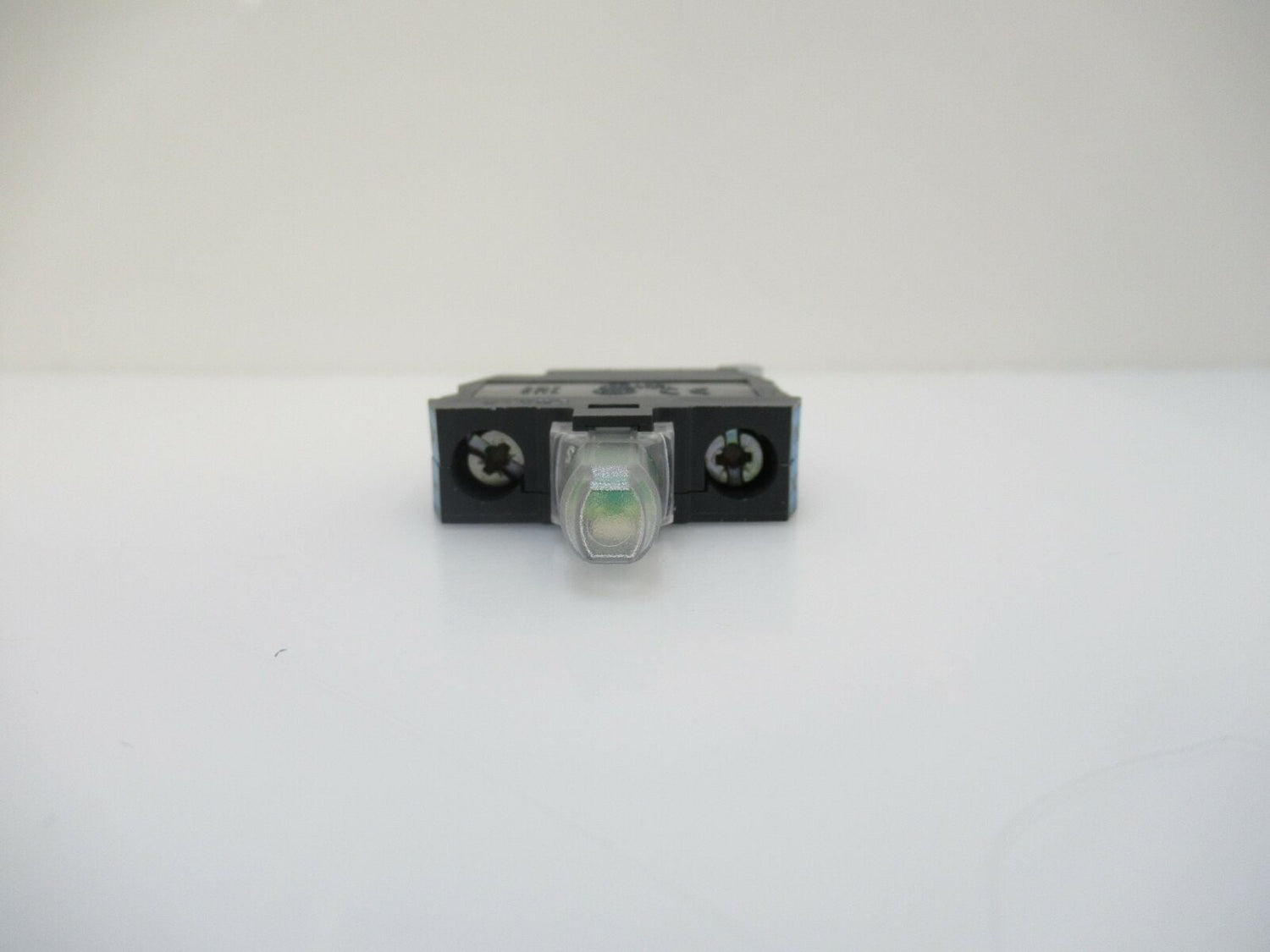

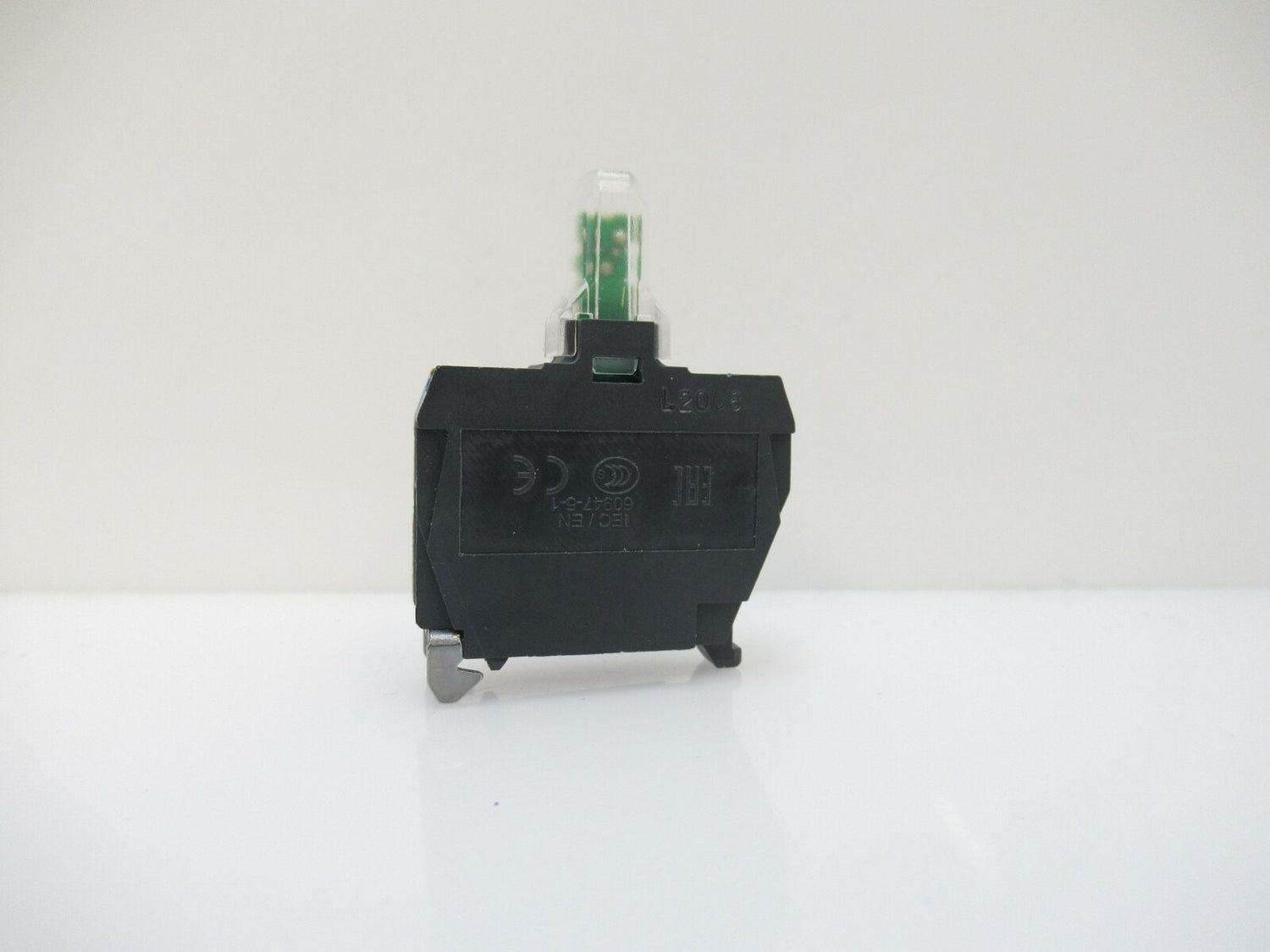

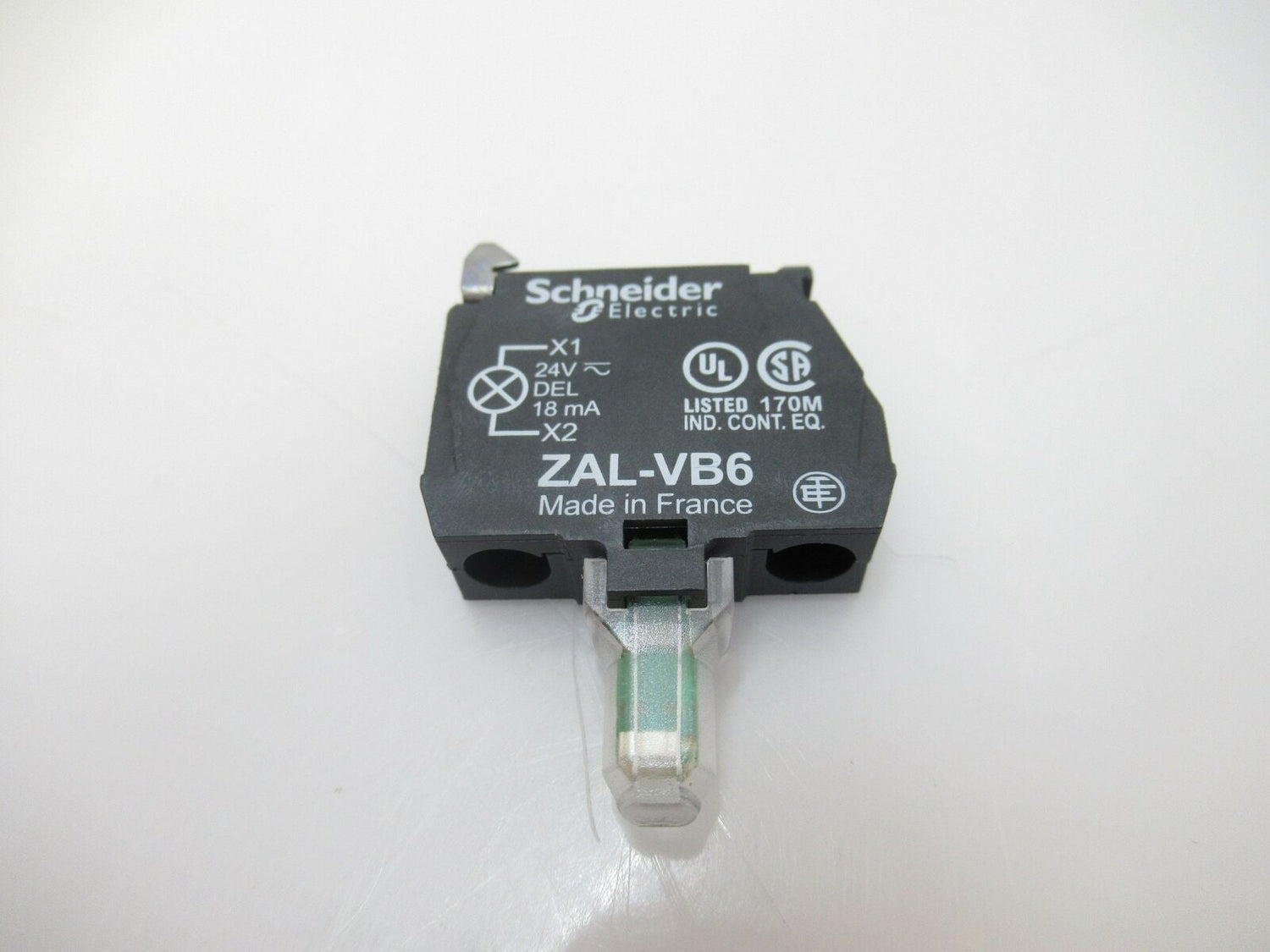

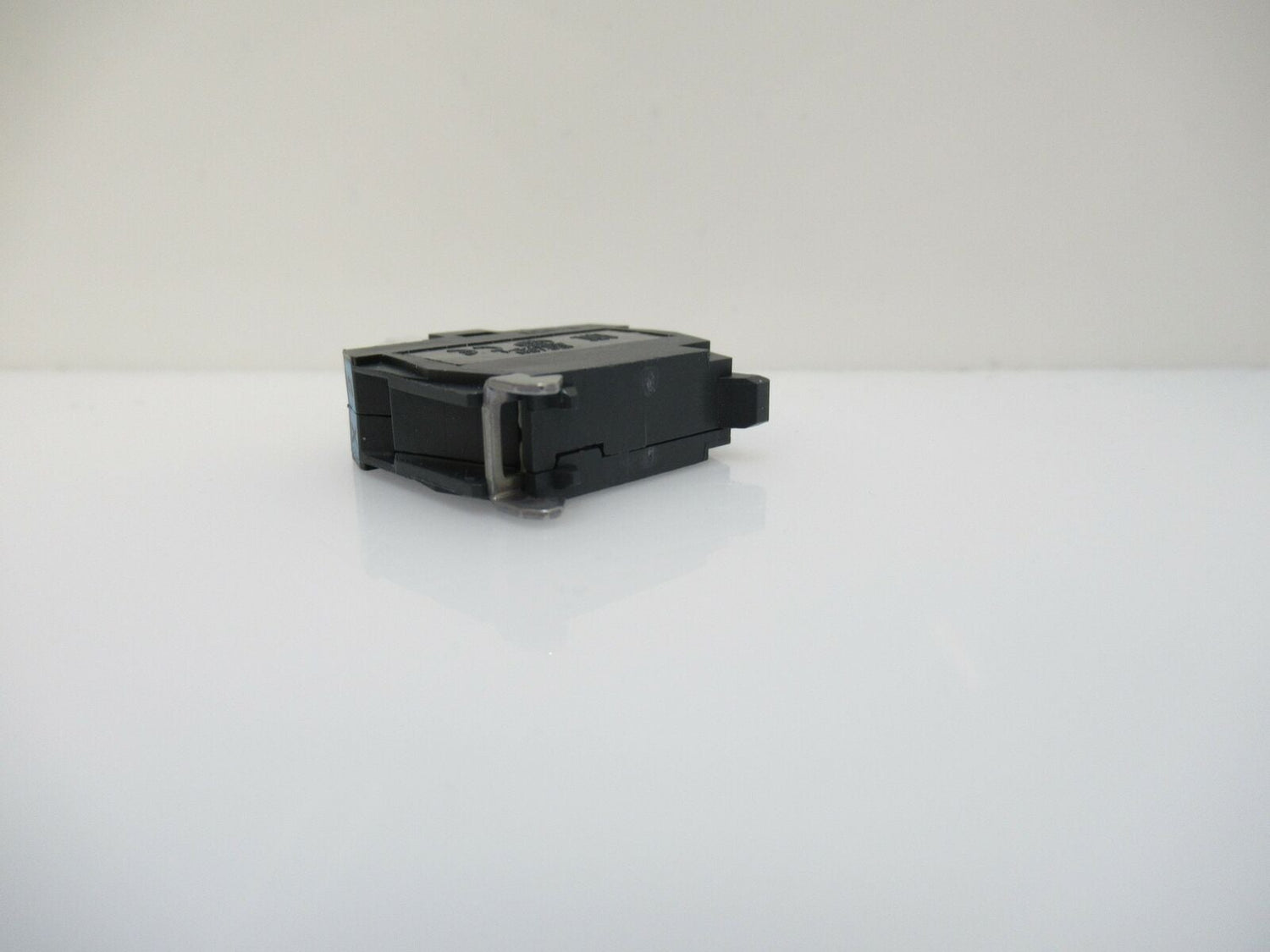

Light Block For Head Ø22, Blue, Integral LED, Mounting In Back Of Enclosure, Screw Clamp Terminal, 24V AC/DC
Sold By Unit New
| range of product |
Harmony XAL
|
|
|---|---|---|
| product or component type |
Light block
|
|
| device short name |
ZALV
|
|
| product destination |
For XB5 Ø 22 mm control and signalling units
|
|
| mounting of block |
Rear mounting
|
|
| sale per indivisible quantity |
5
|
|
| light source colour |
Blue
|
|
| [Us] rated supply voltage |
24 V AC/DC
|
| assembly style |
For customer assembly
|
|
|---|---|---|
| net weight |
0.015 kg
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| [Ui] rated insulation voltage |
250 V (pollution degree 3) conforming to EN/IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
EN/IEC 60947-1 4 kV
|
|
| signalling type |
Steady
|
|
| light source |
Integrated and protected LED
|
|
| supply voltage limits |
19.2…30 V DC
21.6…26.4 V AC |
|
| current consumption |
18 mA
|
|
| service life |
100000 h at rated voltage and 25 °C
|
|
| surge withstand |
1 kV conforming to IEC 61000-5-1
|
|
| light block supply |
Direct
|
|
| bulb base |
Integral LED
|
|
| electrical composition code |
MR1
PR1 |
