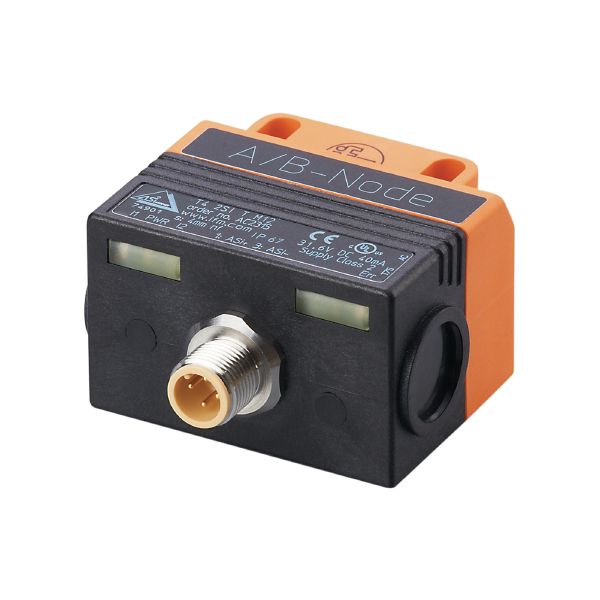

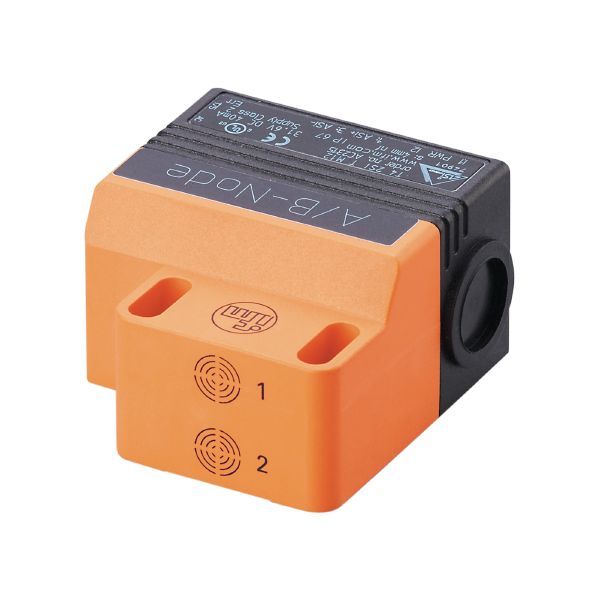

Ifm AC2315 As-Interface Dual Sensor For Pneumatic Quarter-Turn Actuators

Name: Ifm AC2315 As-Interface Dual Sensor For Pneumatic Quarter-Turn Actuators
Availability: BackOrder

SKU IF-AC2315-E

$317.22 USD - $317.22 USD

$317.22 USD

$317.22 USD - $317.22 USD

$317.22 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Electrical design	AS-i
Sensing range [mm]	4
Dimensions [mm]	55 x 60 x 35

Electrical data

Operating voltage [V]	26.5...31.6 DC; (cULus - Class 2 source required)
Current consumption [mA]	< 40

Outputs

Electrical design	AS-i

Monitoring range

Sensing range [mm]	4

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Tests / approvals

EMC

EN 50295
EN 61000-6-2

MTTF [years]

924

AS-i classification

AS-i version	2.1
Extended addressing mode	yes
AS-i I/O configuration [hex]	0
AS-i ID code [hex]	A.F
AS-i certificate	74901

Mechanical data

Weight [g]	149.5
Mounting	non-flush mountable
Dimensions [mm]	55 x 60 x 35
Material	PBT

Displays / operating elements

Display

Switching status

2 x LED, yellow

Accessories

Items supplied

reinforcement bracket

socket head screws: 2 x M5 x 35

washers: 2

Remarks

Pack quantity	1 pcs.
