Ifm | SKU: IF-AC2310-E | Barcode: DOES NOT APPLY

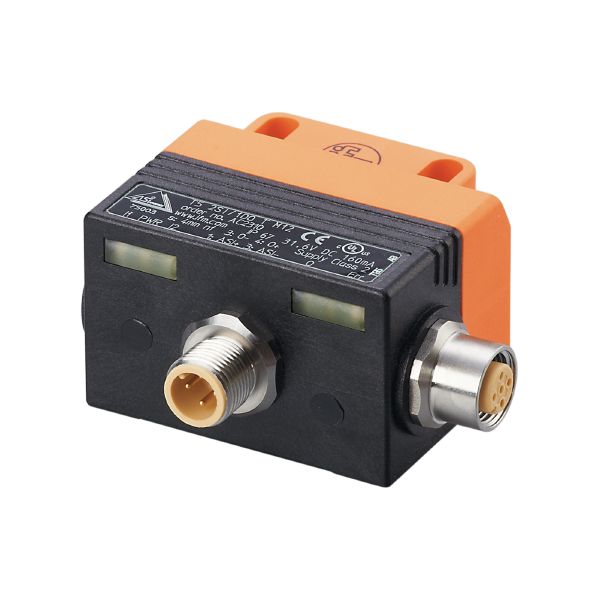

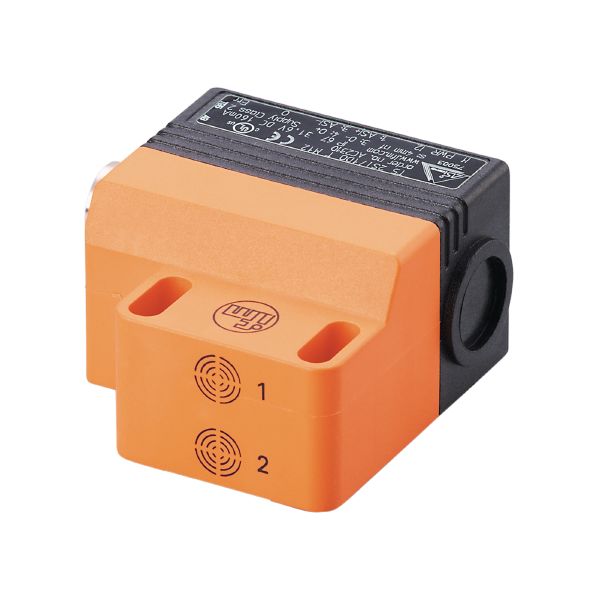

Ifm AC2310 As-Interface Dual Sensor For Pneumatic Quarter-Turn Actuators

Name: Ifm AC2310 As-Interface Dual Sensor For Pneumatic Quarter-Turn Actuators
Availability: BackOrder

$360.00 USD

Shipping calculated at checkout.

Ifm AC2310 As-Interface Dual Sensor For Pneumatic Quarter-Turn Actuators is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	AS-i
Sensing range [mm]	4
Dimensions [mm]	55 x 60 x 35

Electrical data

Operating voltage [V]	26.5...31.6 DC; (cULus - Class 2 source required)
Current consumption [mA]	< 160

Outputs

Electrical design	AS-i
Permanent current rating of switching output DC [mA]	100
Short-circuit proof	yes

Monitoring range

Sensing range [mm]	4

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Tests / approvals

EMC

EN 50295
EN 61000-6-2

MTTF [years]

394

AS-i classification

AS-i version	2.1
Extended addressing mode	no
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	F.F
AS-i certificate	75003

Mechanical data

Weight [g]	179.5
Mounting	non-flush mountable
Dimensions [mm]	55 x 60 x 35
Material	PBT; PC

Displays / operating elements

Display

Power	1 x LED, green
Function	1 x LED, yellow
error	LED, red

Accessories

Items supplied

reinforcement bracket

socket head screws: 2 x M5 x 35

washers: 2

Remarks

Pack quantity	1 pcs.
