Ifm AC0017 As-Interface Value-Added Automation Set For Pneumatic Quarter-Turn Actuators

Name: Ifm AC0017 As-Interface Value-Added Automation Set For Pneumatic Quarter-Turn Actuators
Availability: BackOrder

SKU IF-AC0017-E

$468.89 USD - $468.89 USD

$468.89 USD

$468.89 USD - $468.89 USD

$468.89 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for Delock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

Product characteristics

Output function	PNP
Sensing range [mm]	4

Application

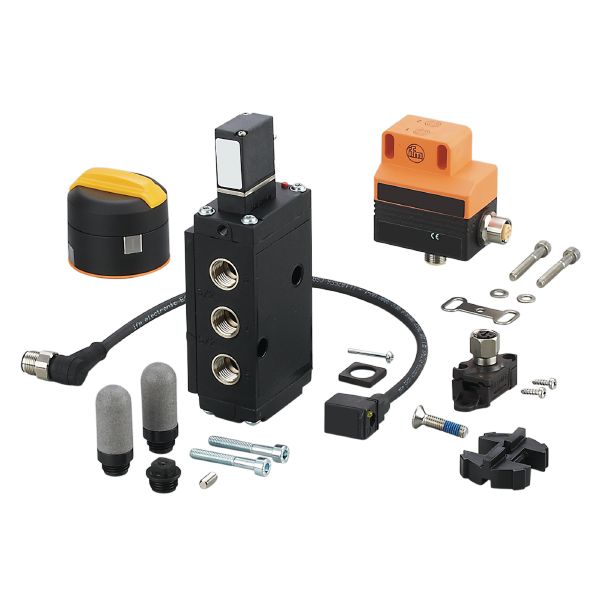

Components

Dual sensor for actuator feedback: 1, AC2316

Target puck: 1, E12517

Spacer: 1, E12526

Single solenoid valve: 1, Bürkert 428623

Silencer: 2, 780780N

Connection cable: 1, E10844

Flat cable insulation displacement connector: 1, E75471

Electrical data

Max. current consumption from AS-i [mA]	160
Operating voltage AUX DC [V]	26.5...31.6; (cULus - Class 2 source required)

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 1

Inputs

Number of digital inputs	2

Outputs

Number of digital outputs	1
Output function	PNP

Monitoring range

Sensing range [mm]	4

AS-i classification

AS-i version	2.1
AS-i profile	S-7.A.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	A.E

Mechanical data

Weight [g]	867
Mounting	non-flush mountable
Hole spacing [mm]	80
Shaft height of actuator stem [mm]	20

Remarks

Pack quantity	1 pcs.

Ifm AC0017 As-Interface Value-Added Automation Set For Pneumatic Quarter-Turn Actuators
