Festo | SKU:
CYL-0800-E

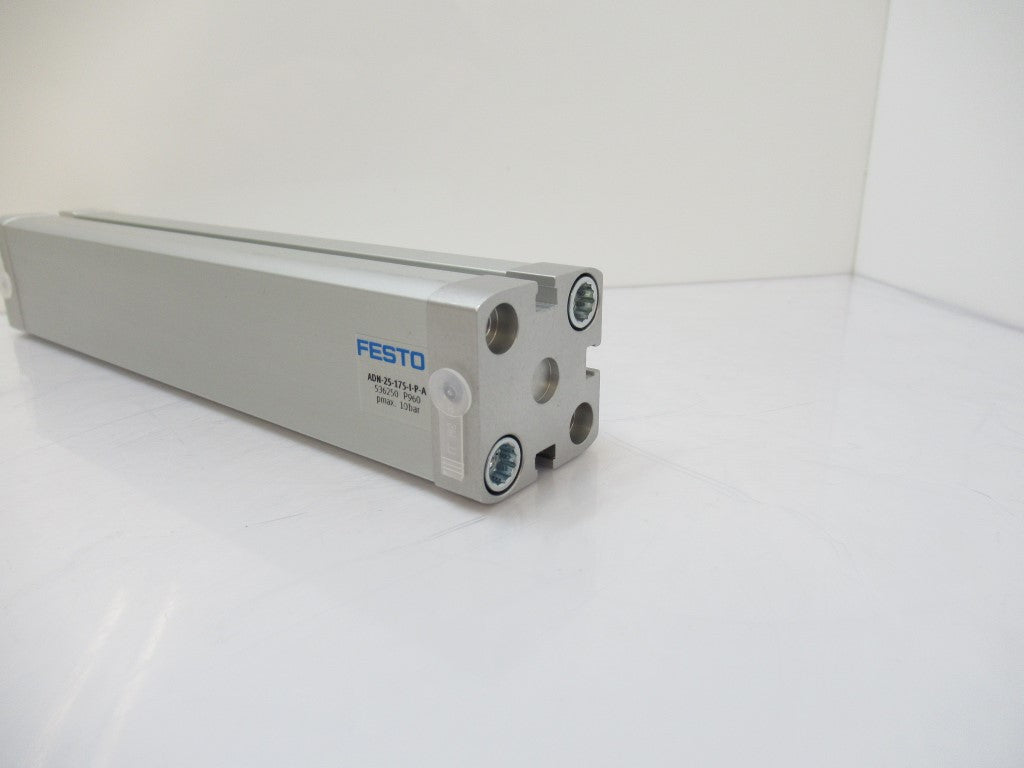

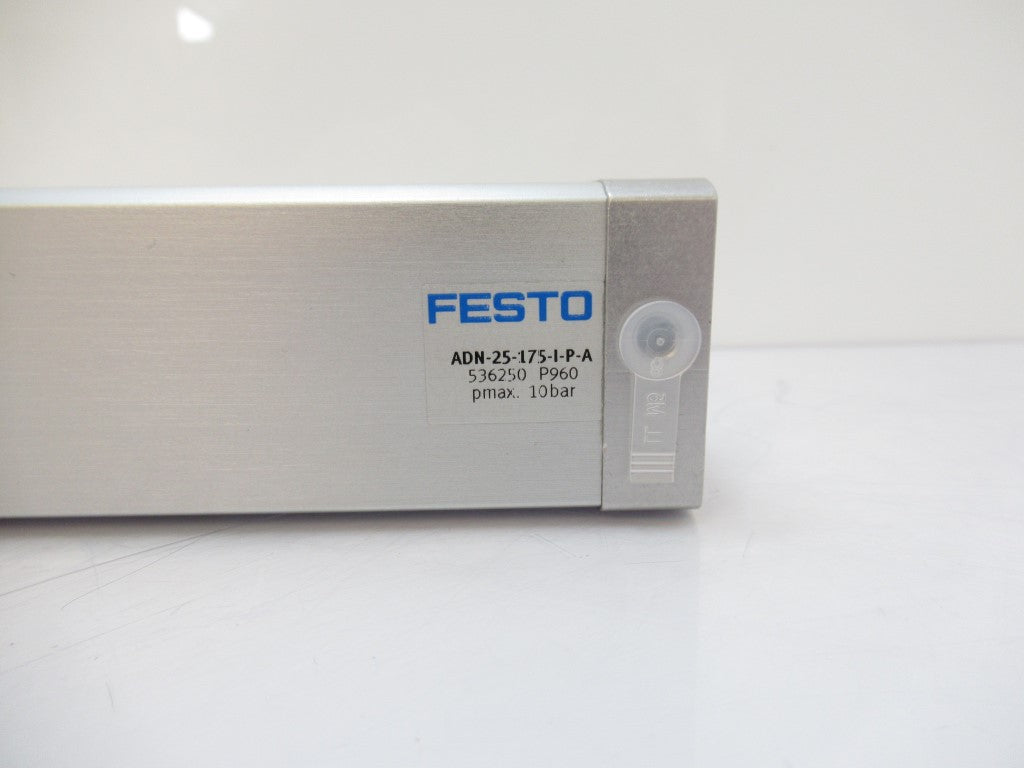

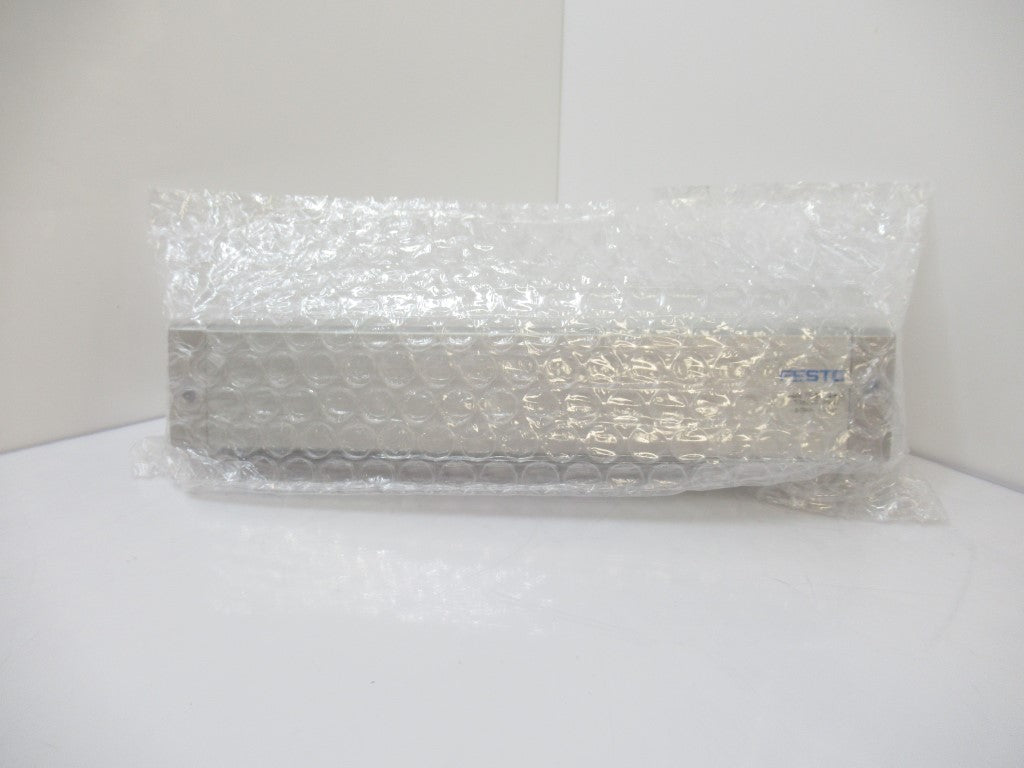

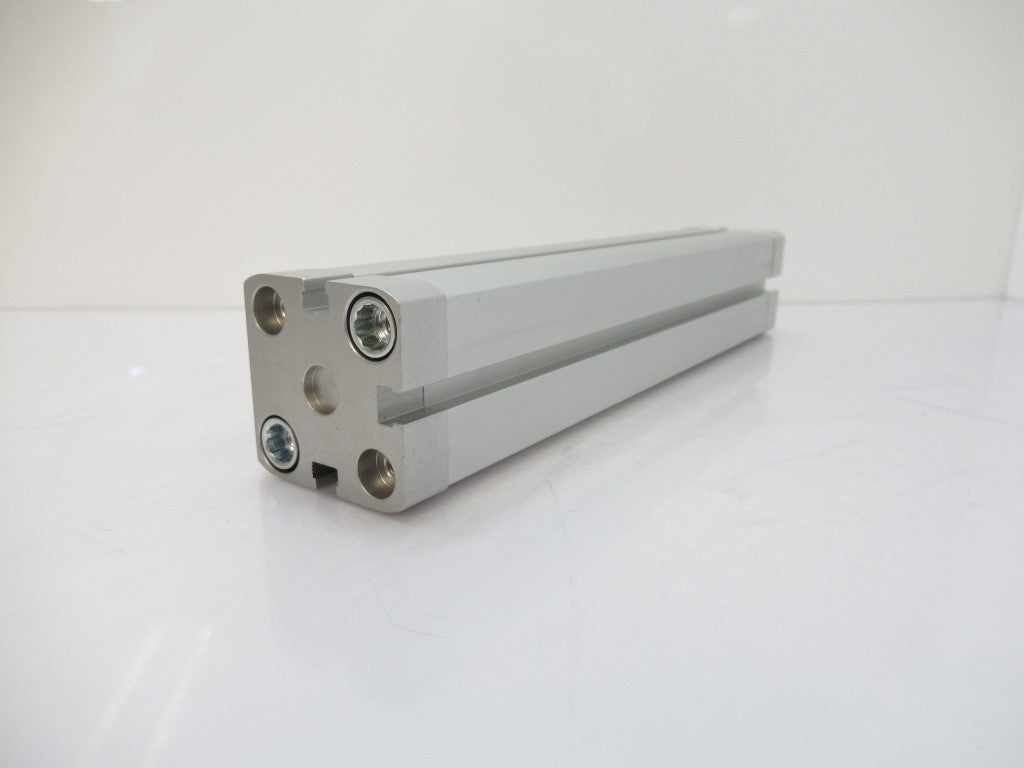

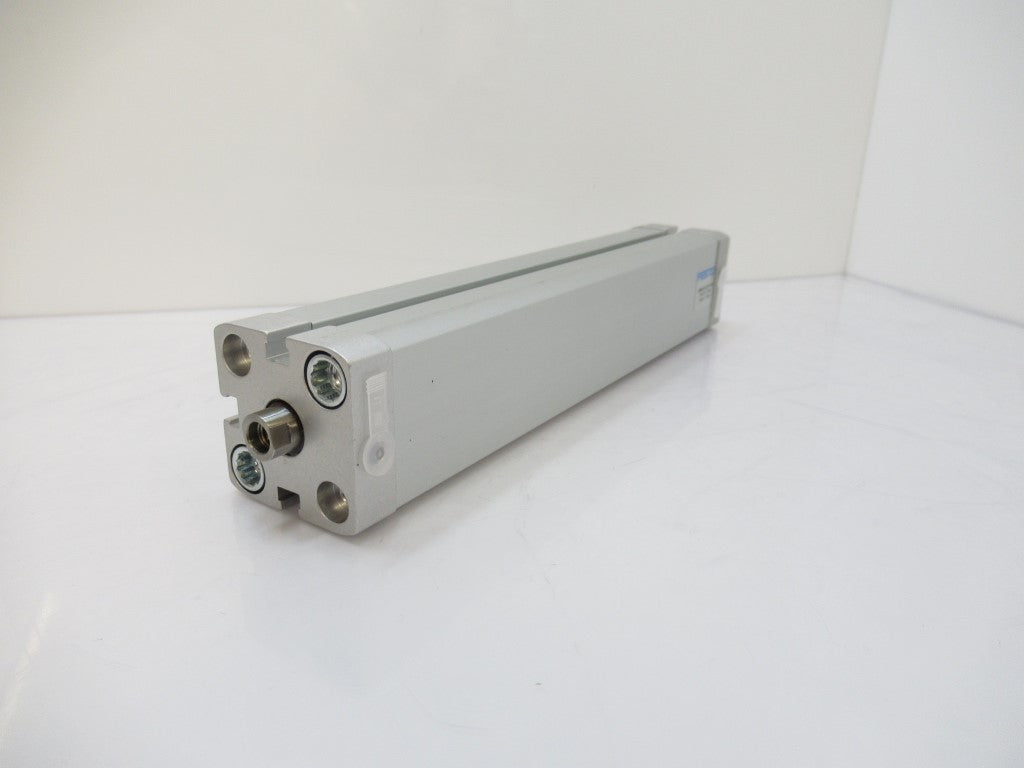

ADN-25-175-I-P-A 536250 Festo Compact Air Cylinder
$128.75 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
ADN-25-175-I-P-A 536250 Festo Compact Air Cylinder is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
ADN-25-175-I-P-A 536250 Festo Compact Air Cylinder
$128.75 USD
Unit price
/
Unavailable
Product Information
- ADN25175IPA
- Stroke: 1 mm ... 300 mm
- Piston diameter: 25 mm
- Based on norm: ISO 21287
- Cushioning: Elastic cushioning rings/pads at both ends, Self-adjusting pneumatic end-position cushioning
- Mounting position: Any
- Structural design: Piston, Piston rod, Profile barrel
- Position sensing: For proximity sensor
- Mode of operation: Double-acting
- Ambient temperature: -40 °C ... 120 °C
- Moving mass at 0 mm stroke: 50 g
- Additional moving mass per 10 mm stroke: 6 g
- Basic weight with 0 mm stroke: 156 g
- Additional weight per 10 mm stroke: 23 g
- Pneumatic connection: M5
- Note on materials: RoHS-compliant
- Cover material: Aluminum Anodized
- Piston rod material: High-alloy steel
- Material of cylinder barrel: Wrought aluminum alloy, Smooth anodized
