Festo | SKU:
CYL-0144-E

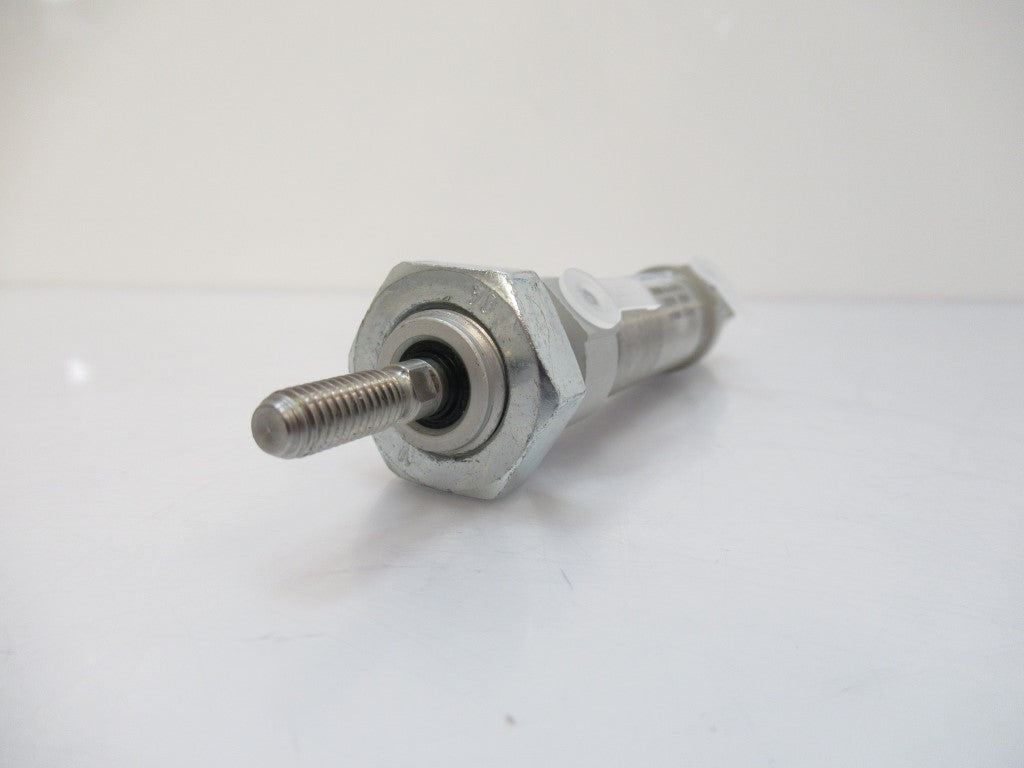

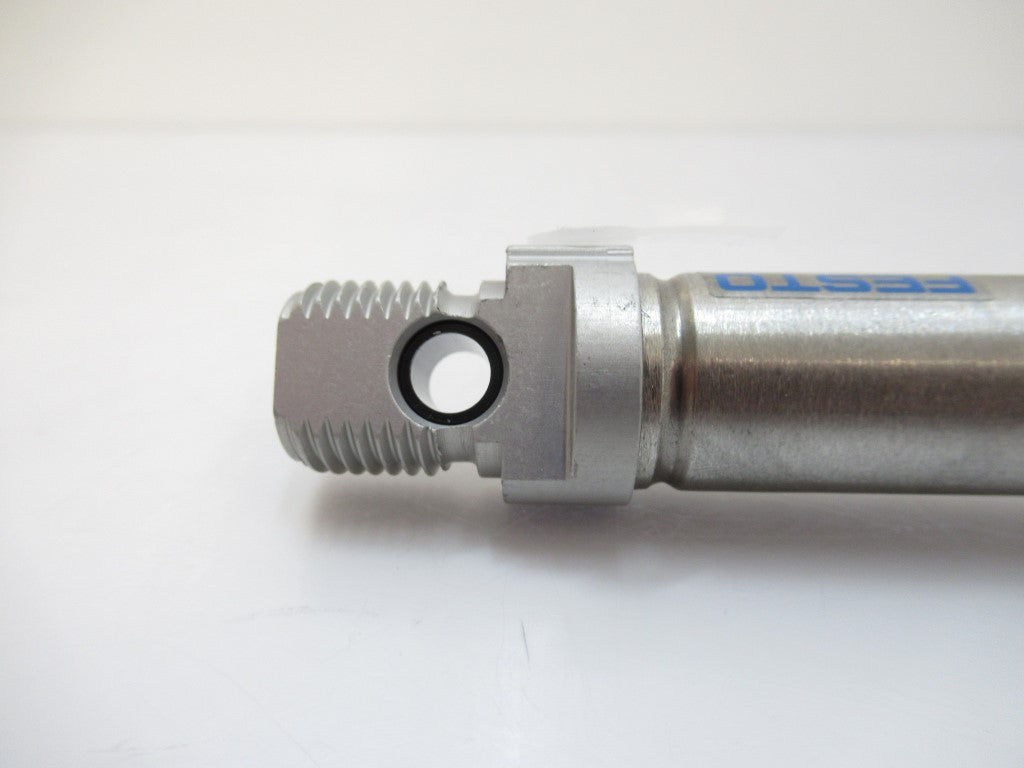

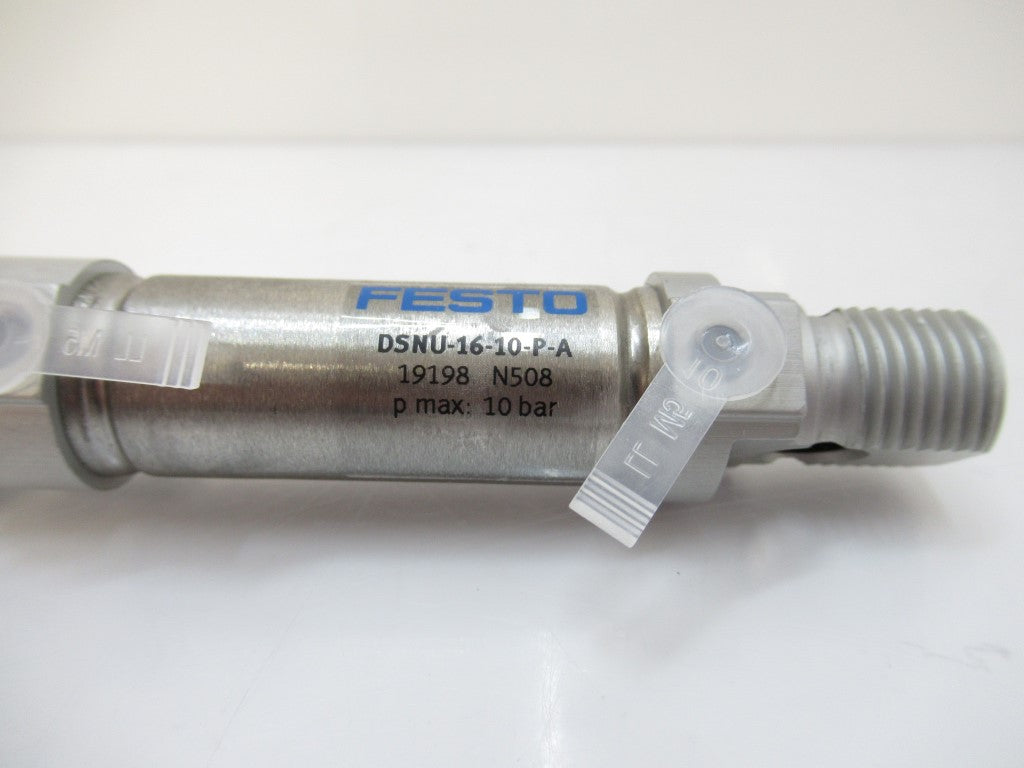

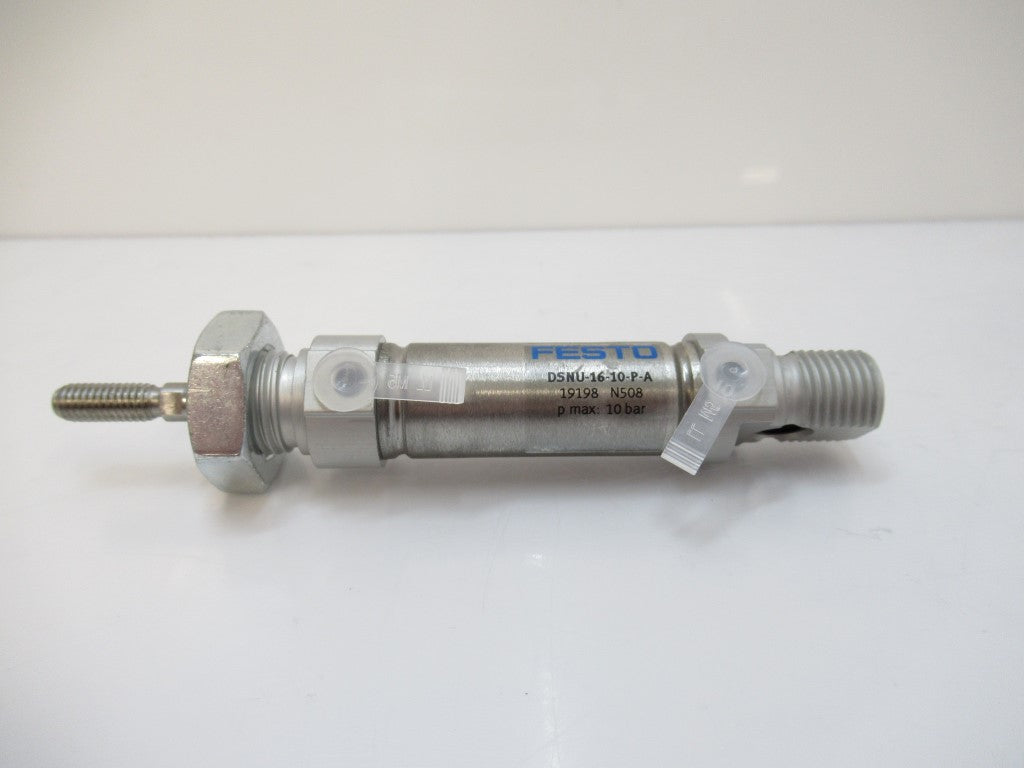

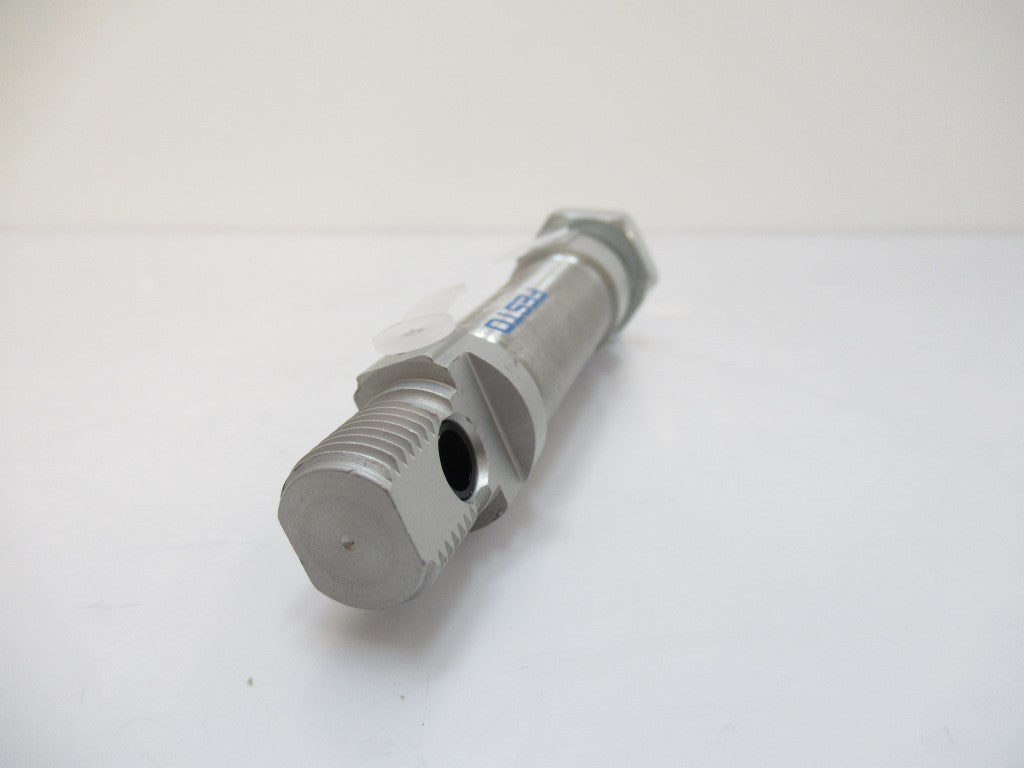

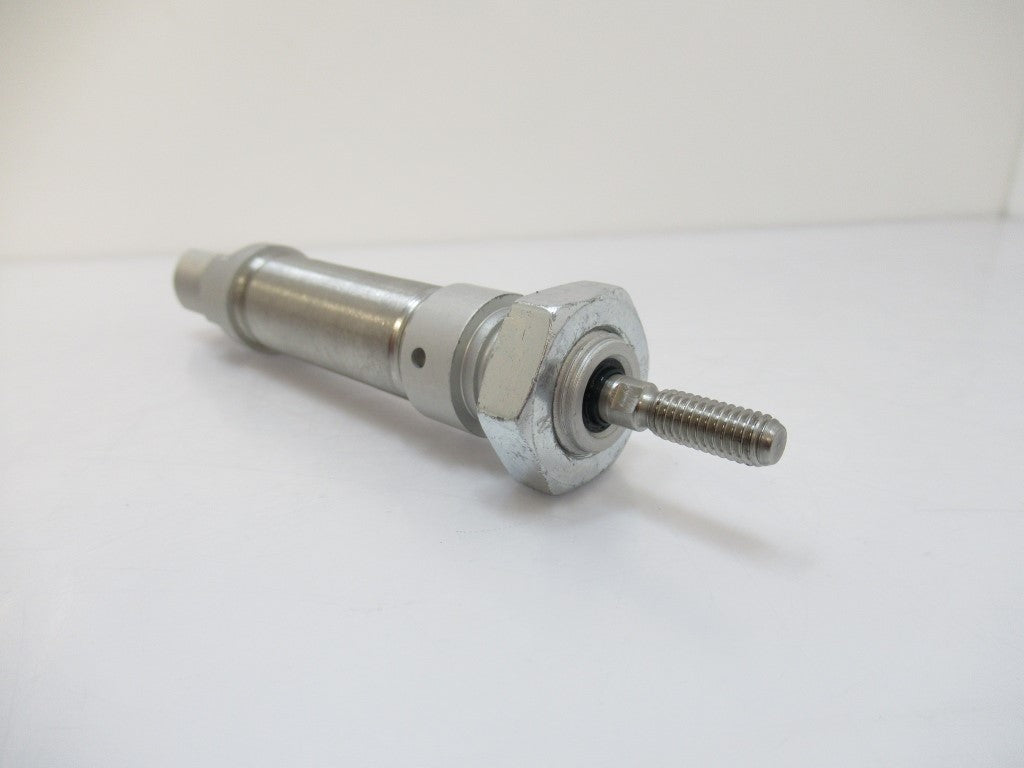

Festo 19198 DSNU-16-10-P-A ISO Cylinder
$71.25 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Festo 19198 DSNU-16-10-P-A ISO Cylinder is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Festo 19198 DSNU-16-10-P-A ISO Cylinder
$71.25 USD
Unit price
/
Unavailable
Description
- P/n: DSNU1610PA
- Stroke: 10mm
- Piston Diameter: 16 mm
- Piston Rod Thread: M6
- Piston Rod End: External Thread
- Position Sensing: For Proximity Sensor
- Variants: Piston Rod At One End
- Operating Pressure: 0.1 MPa ... 1 MPa
- Operating Pressure: 1 bar ... 10 bar
- Mode Of Operation: Double-Acting
- Operating Medium: Compressed Air As Per ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class (CRC): 2 - Moderate Corrosion Stress
- Ambient Temperature: -20 ... 80 Deg C
- Impact Energy In The End Positions: 0.15 J
- Theoretical Force At 6 bar, Retracting: 103.7 N
- Theoretical Force At 6 bar, Advancing: 120.6 N
- Basic Weight With 0 mm Stroke: 89.9 g
- Additional Moving Mass Per 10 mm Stroke: 2 g
- Pneumatic Connection: M5
- Seals Material: NBR; TPE-U(PU)
- Piston Rod Material: High-Alloy Stainless Steel
- Material Of Cylinder Barrel: High-Alloy Stainless Steel
- UPC: 4052568003104
