Ifm | SKU:
IF-AC2032-E

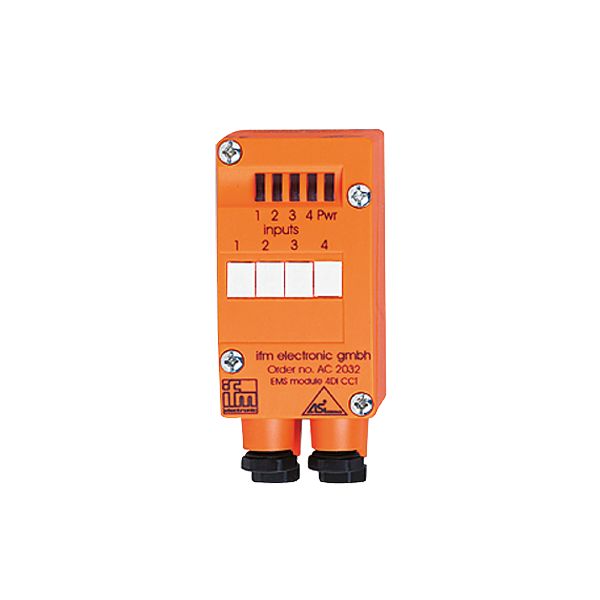

Ifm AC2032 As-Interface Universal Module
$234.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm AC2032 As-Interface Universal Module is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm AC2032 As-Interface Universal Module
$234.44 USD
Unit price
/
Unavailable
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 200 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Voltage supply [V] | 20...30 |
| Max. total current rating of inputs [mA] | 160 |
| Input current High [mA] | > 5 |
| Input current low [mA] | < 3 |
| Switching level high [V] | > 10 |
| Digital inputs protected against short circuits | yes |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
|---|
AS-i classification
| AS-i master profile | M2; M3; M4 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AS-i profile | S-0.0.F | ||||||||||
| AS-i I/O configuration [hex] | 0 | ||||||||||
| AS-i ID code [hex] | 0.F | ||||||||||
| Data bits |
|
Mechanical data
| Weight [g] | 182 |
|---|---|
| Type of mounting | AS-i interface to FC and SC lower parts |
| Material | PA 6-GF30; stainless steel (1.4305 / 303) |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Module connection | Flat cable |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| cage clamps: |
