Ifm | SKU:
IF-AC1401-E

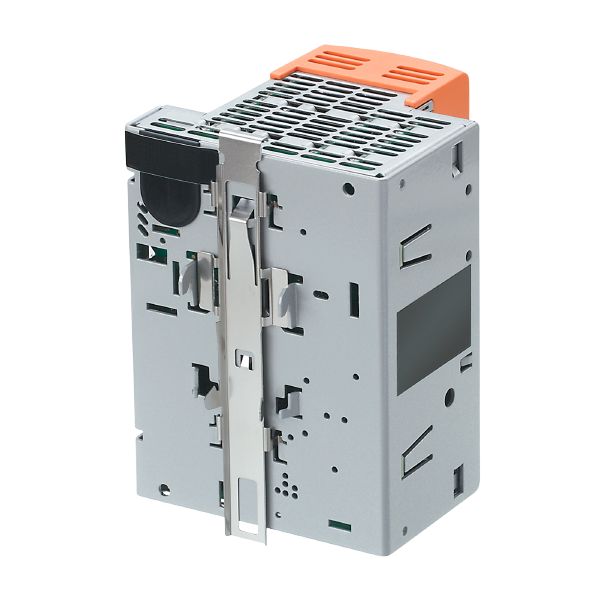

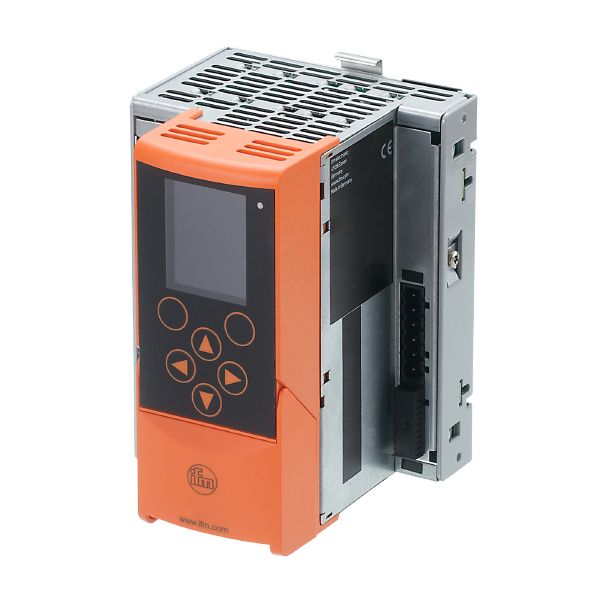

Ifm AC1401 As-Interface Profinet Gateway
$1,518.89 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm AC1401 As-Interface Profinet Gateway is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm AC1401 As-Interface Profinet Gateway
$1,518.89 USD
Unit price
/
Unavailable
Application
| Application | PROFINET gateway |
|---|
Electrical data
| Operating voltage [V] | 18...32 DC; (AUX; AS-i: 21...31,6 V DC) |
|---|---|
| Current consumption [mA] | < 500; (AUX / AS-i 1) |
| Max. current consumption from AS-i [mA] | 500; (with external supply: 10 mA) |
| Number of AS-i masters | 1 |
| Electrical separation | yes |
Outputs
| Voltage range DC [V] | to PELV |
|---|
Interfaces
| Communication interface | Ethernet |
|---|
Ethernet - Modbus TCP
| Transmission rate | 10 MBaud; 100 MBaud |
|---|---|
| Type of connector | RJ45 |
| Protocol | Modbus TCP |
| Usage type | Programming |
Ethernet - PROFINET
| Transmission rate | 100 MBaud | |
|---|---|---|
| Type of connector | RJ45 | |
| Protocol | PROFINET | |
| Usage type | Data transmission | |
| Note on interfaces |
|
Ethernet - TCP/IP
| Transmission rate | 10 MBaud; 100 MBaud |
|---|---|
| Type of connector | RJ45 |
| Protocol | TCP/IP |
| Usage type | Programming |
Ethernet - UDP/IP
| Transmission rate | 10 MBaud; 100 MBaud |
|---|---|
| Type of connector | RJ45 |
| Protocol | UDP/IP |
| Usage type | Programming |
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | -20...70 |
| Protection | IP 20 |
Tests / approvals
| MTTF [years] | 46 |
|---|
AS-i classification
| AS-i version | 3.0 |
|---|---|
| AS-i master profile | M4 |
| AS-i certificate | 97301 |
Mechanical data
| Weight [g] | 711 |
|---|---|
| Housing | housing for DIN rail mounting |
| Material | aluminum powder-coated; steel sheet galvanized; PC |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|
|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | terminals: ...2.5 mm² |
|---|
