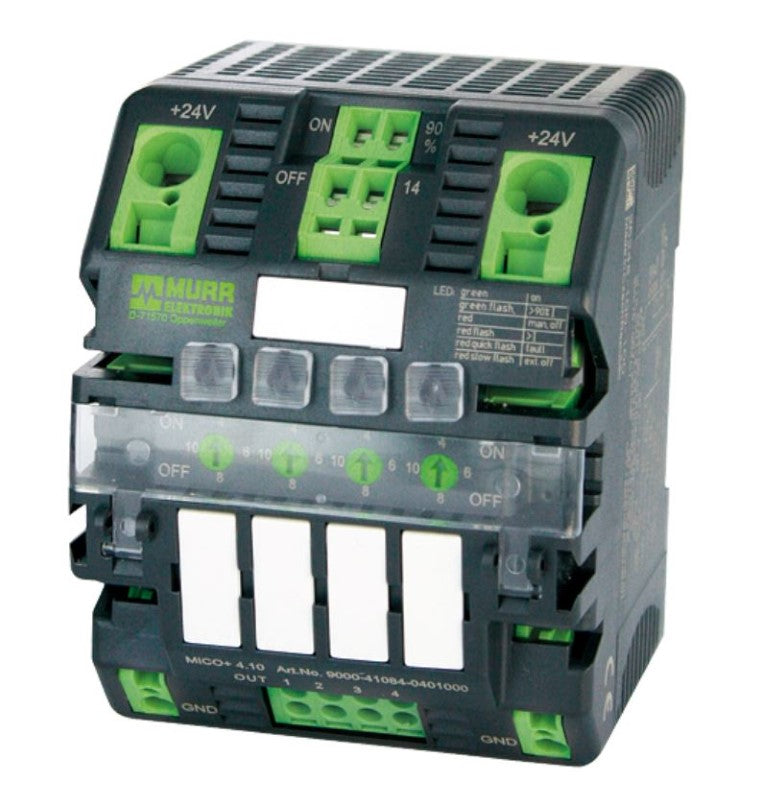

MurrElektronik 9000-41084-0401000 MICO Electronic Circuit Protection
Product Information
9000410840401000
General Data
- Connection: Spring Clamp Terminals
- Input Terminals: 2× 16 mm²
- Output Terminals: Per Output 2× 1.5 mm²
- Alarm Terminals: 2.5 mm²
- Bridging Concept: Two Sides, With Spring Clamp Terminals Or Bridge Set (Max. 40 A)
- Mounting Method: DIN-Rail Mountable TH35 (En 60715)
- Dimensions HxWxD: 90×70×80 mm
- Temperature Range: 0...+55 °c (Storage Temperature -40...+80 °c)
Output
- Current Adjustment: 4 A, 6 A, 8 A, 10 A, By Countersinked Rotary Switch, Sealed
- Inrush Capacity: Max. 20 mF (Per Channel)
Input
- Operating Voltage: 24 V DC (18...30 V DC)
Control Inputs
- Input Voltage (On): 10...30 V DC
- Remote Start (Off): 10...30 V DC
- Impulse Length (On): Min. 20 ms
