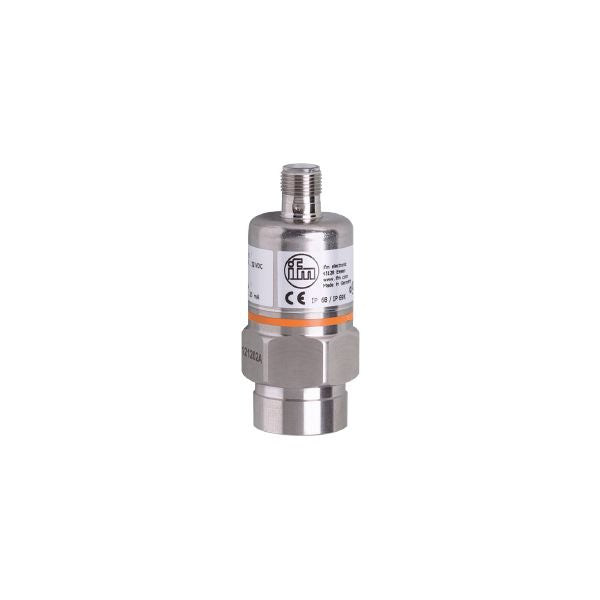

Ifm PA6229 Pressure Transmitter With Ceramic Measuring Cell
| Number of inputs and outputs | Number of analog outputs: 1 | ||||
|---|---|---|---|---|---|
| Measuring range |
|
||||
| Process connection | threaded connection 1/4" NPT Internal thread |
| System | gold-plated contacts | |||
|---|---|---|---|---|
| Application | for industrial applications | |||
| Media | liquids and gases | |||
| Medium temperature [°C] | -25...90; (on request: -40...90 °C) | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure; vacuum |
| Operating voltage [V] | 9.6...32 DC |
|---|---|
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | analog signal |
| Number of analog outputs | 1 |
| Analog current output [mA] | 20...4 |
| Max. load [Ω] | 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA) |
| Overload protection | yes |
| Measuring range |
|
|---|
| Repeatability [% of the span] | < 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Long-term stability [% of the span] | < ± 0,05; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] | 0,1; (0...80 °C) |
| Temperature coefficient span [% of the span / 10 K] | 0,2; (0...80 °C) |
| Step response time analog output [ms] | 3 |
|---|
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 65 |
| EMC |
|
||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||||||||||
| Vibration resistance |
|
||||||||||||||||
| MTTF [years] | 506 | ||||||||||||||||
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight [g] | 221.5 |
|---|---|
| Material | stainless steel (1.4404 / 316L); FKM; PA; EPDM/X |
| Materials (wetted parts) | stainless steel (1.4305 / 303); ceramics; FKM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection 1/4" NPT Internal thread |
| Restrictor element integrated | no (can be retrofitted) |
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
