Ifm | SKU:
IF-OVP810-E

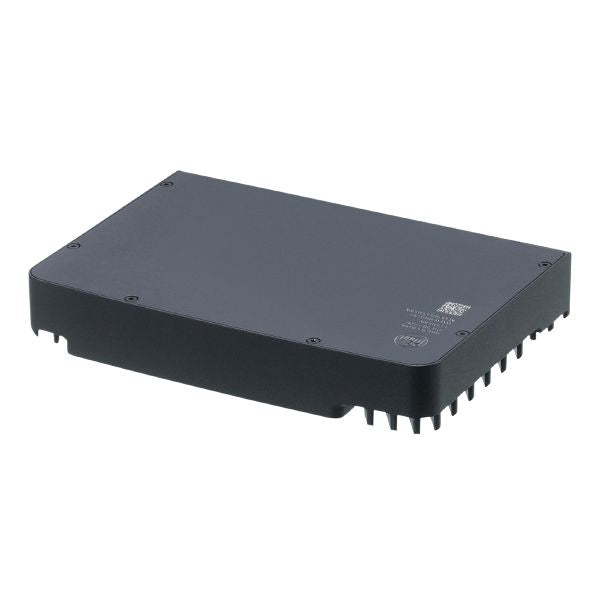

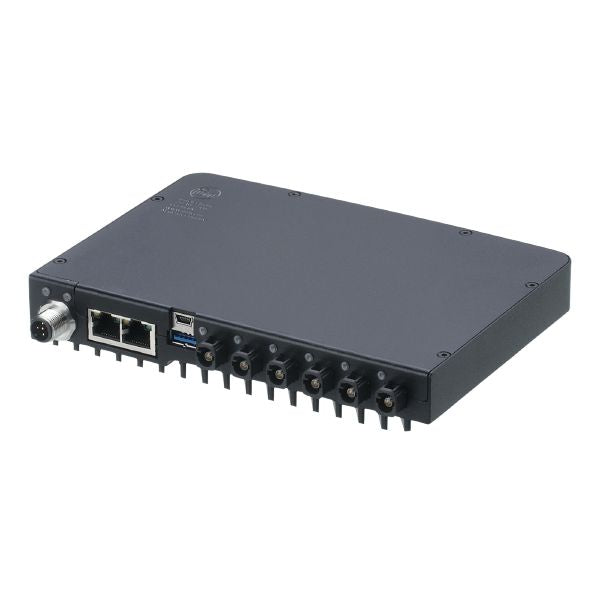

Ifm OVP810 Video Processing Unit (Vpu)
$1,000.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm OVP810 Video Processing Unit (Vpu) is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm OVP810 Video Processing Unit (Vpu)
$1,000.00 USD
Unit price
/
Unavailable
Application
| Application | Vision sensors |
|---|
Electrical data
| Operating voltage [V] | 19.2...28.8 DC |
|---|---|
| Max. current consumption [mA] | 1100+n* (630/20) * FPS; n = number of cameras; FPS = camera frame rate |
| Power consumption [W] | 10,8 +(n* (9,36/20) *FPS; typical n = 3 ; the voltage and power supply are provided by the VPU and are therefore listed in the VPU data sheet. |
Interfaces
| Number of CAN interfaces | 1 |
|---|---|
| Number of Ethernet interfaces | 2 |
| Number of USB interfaces | 2 |
CAN
| Protocol | free protocol |
|---|
Ethernet
| Transmission standard | 1GBase-T | ||||
|---|---|---|---|---|---|
| Transmission rate | 1000 MBit/s | ||||
| Type of connector | RJ45 | ||||
| Protocol | TCP/IP | ||||
| Factory settings |
|
Sensor interface
| Transmission standard | FPD-Link | |
|---|---|---|
| Type of connector | HFM (Mini-FAKRA) | |
| Note on interfaces |
|
USB
| Type of connector | Mini-USB; type A |
|---|---|
| Version | 2.0; 3.0 |
Operating conditions
| Ambient temperature [°C] | -10...40 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 50 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| Electrical safety |
|
Mechanical data
| Weight [g] | 1285 |
|---|---|
| Dimensions [mm] | 126.5 x 29 x 180.4 |
| Material | housing: aluminum |
| Tightening torque [Nm] | < 5.5 |
Hardware
| Processor | SOM: Nvidia Jetson TX2NX 4GB Module CPU: Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor; GPU: 256-core NVIDIA Pascal™ architecture GPU |
|---|---|
| Working memory | 4GB 128-bit LPDDR4, 1600 MHz - 51.2 GB/s |
| Mass storage | 32GB eMMC 5.1 Flash (16GB for docker) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Other data
Connection
| Port 0 | Port 1 | Port 2 | Port 3 | Port 4 | Port 5 | |
| example 1 | camera 1 (3D) | camera 2 (3D) | camera 1 (2D) | camera 2 (2D) | camera 3 (3D) | camera 4 (3D) |
| example 2 | camera 1 (2D) | camera 2 (2D) | camera 1 (3D) | camera 2 (3D) | camera 3 (2D) | camera 4 (2D) |
| example 3 | camera 1 (3D) | camera 2 (3D) | camera 3 (3D) | camera 4 (3D) | camera 5 (3D) | camera 6 (3D) |
| example 4 | camera 1 (3D-VGA) | camera 2 (3D-VGA) | camera 3 (3D-VGA) | camera 4 (3D-VGA) | - | - |
| ports 0 and 1, 2 and 3, 4 and 5 must be assigned to the same type of image sensor. | |
| please note the different 3D image sensor types 38k and VGA when connecting the cameras. | |
| Remarks: Further information on the free memory required for specific applications can be found in the firmware-specific version information (ifm.3d.com). |
