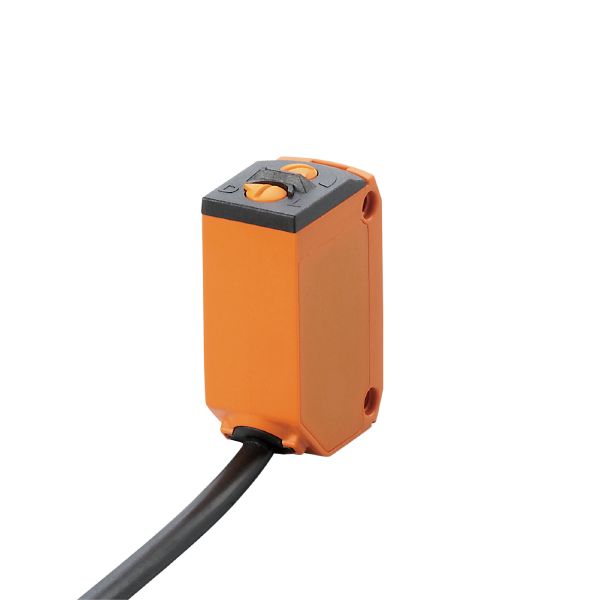

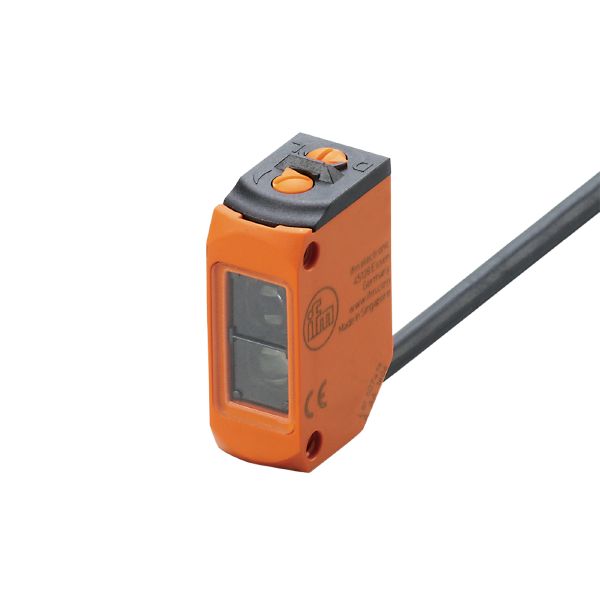

Ifm O6H200 Diffuse Reflection Sensors With Background Suppression
- Operating voltage: 10...30 V DC
- Current consumption: 22 mA (at 24 V)
- Protection class: III
- Reverse polarity protection: Yes
- Type of light: Red light
- Wavelength: 633 nm
Outputs:
- Electrical design: PNP
- Output function: Light-on/dark-on mode (selectable)
- Max. voltage drop at switching output (DC): 2.5 V
- Permanent current rating of switching output (DC): 100 mA
- Switching frequency (DC): 1000 Hz
- Short-circuit protection: Yes
- Type of short-circuit protection: Pulsed
Detection zone:
-
Range: 2...200 mm (on white paper 200 x 200 mm)
- On white object (90% remission): 2...200 mm
- On grey object (18% remission): 4...200 mm
- On black object (6% remission): 8...200 mm
- Range adjustable: Yes
- Max. light spot diameter: 8 mm
