Ifm | SKU:
IF-O3M960-E

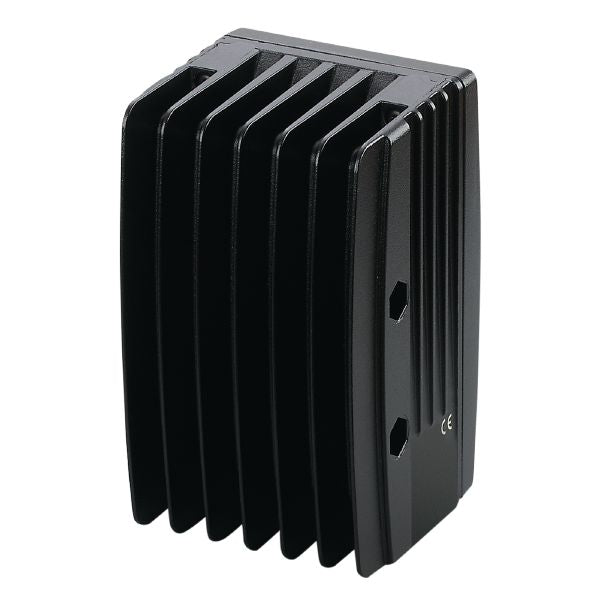

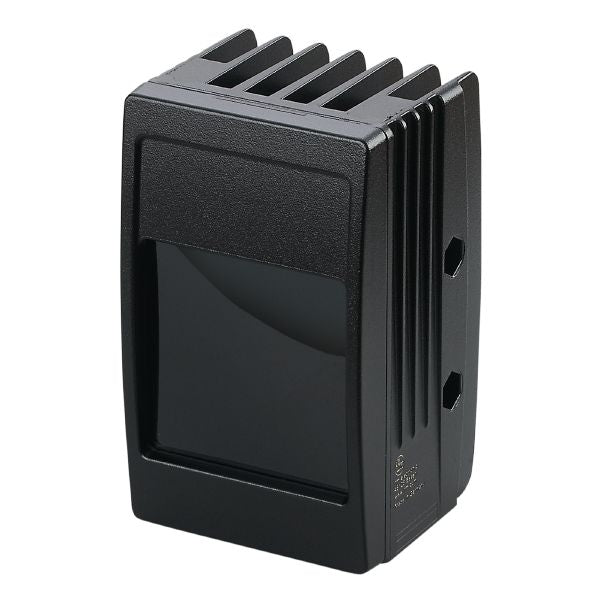

Ifm O3M960 Ir Illumination Unit
$1,080.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm O3M960 Ir Illumination Unit is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm O3M960 Ir Illumination Unit
$1,080.56 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | Infrared light |
|---|---|
| Angle of aperture [°] | 95 x 32 |
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
Electrical data
| Operating voltage [V] | 9...32 DC |
|---|---|
| Current consumption [mA] | < 5000 |
| Power consumption [W] | 45 |
| Protection class | III |
| Type of light | Infrared light |
| Wave length [nm] | 850 |
Monitoring range
| Angle of aperture [°] | 95 x 32 |
|---|---|
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
Software / programming
| Parameter setting options | Via PC and O3M16x / O3M26x with ifm Vision Assistant |
|---|
Interfaces
| Communication interface | MCI |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -40...105 | |
| Protection | IP 67; IP 69K; (with mounted connectors or protective caps) |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| Photobiological safety | risk group 1; (DIN EN 62471) | ||||
| Electrical safety |
|
||||
| MTTF [years] | 78 |
Mechanical data
| Weight [g] | 1422.8 |
|---|---|
| Dimensions [mm] | 143 x 85 x 83.5 |
| Material | housing: diecast aluminium; disc: polycarbonate |
Remarks
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: 1 x M12; coding: A |
