Ifm | SKU:
IF-DTM435-E

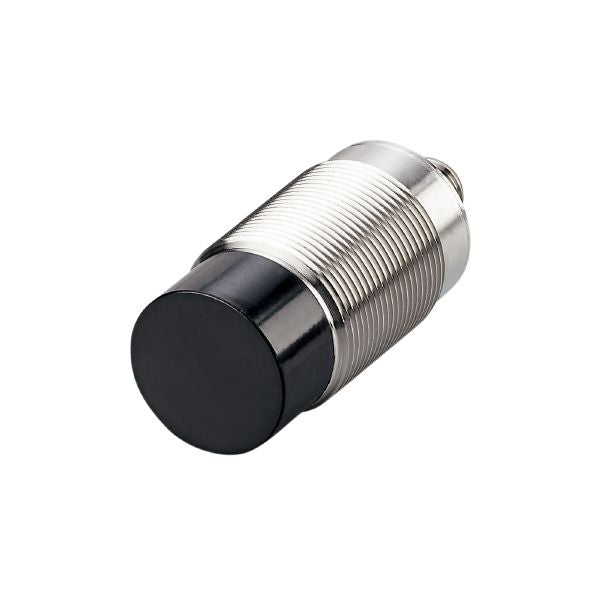

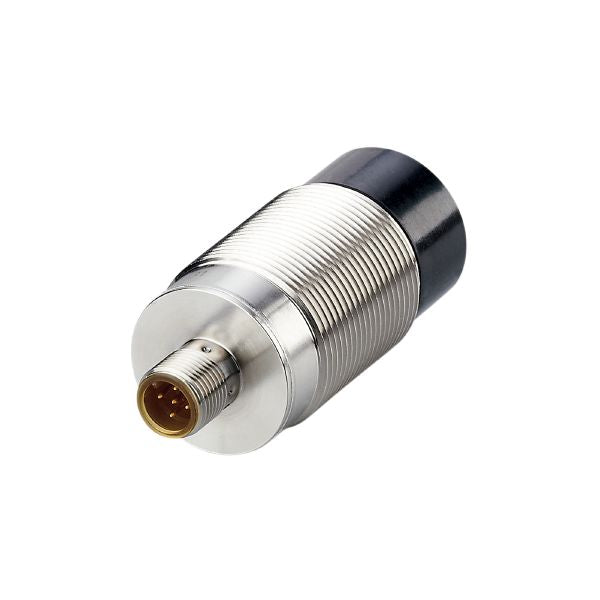

Ifm DTM435 Rfid Read/Write Head With Can Interface And Canopen Protocol
$321.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm DTM435 Rfid Read/Write Head With Can Interface And Canopen Protocol is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm DTM435 Rfid Read/Write Head With Can Interface And Canopen Prot...
$321.67 USD
Unit price
/
Unavailable
Application
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine; Brazil | |
|---|---|---|
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 9...32 DC |
|---|---|
| Current consumption [mA] | < 50 (24 V) / < 80 (12 V) |
| Protection class | III |
| Operating frequency [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Monitoring range
| Distance write/read head front [mm] | 200 | |||
|---|---|---|---|---|
| Distance write/read head side [mm] | 100 | |||
| Distance to the ID tag [mm] |
|
Interfaces
| Communication interface | CAN |
|---|
CAN
| Protocol | CANopen |
|---|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance |
|
||||
|---|---|---|---|---|---|
| Vibration resistance |
|
||||
| MTTF [years] | 475 |
Mechanical data
| Weight [g] | 175.15 |
|---|---|
| Housing | Threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 70 |
| Thread designation | M30 x 1.5 |
| Material | housing: stainless steel; Protective cover: PPS; LED window: PEI |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: 1 x M12; coding: A |
