Ifm | SKU:
IF-DTI901-E

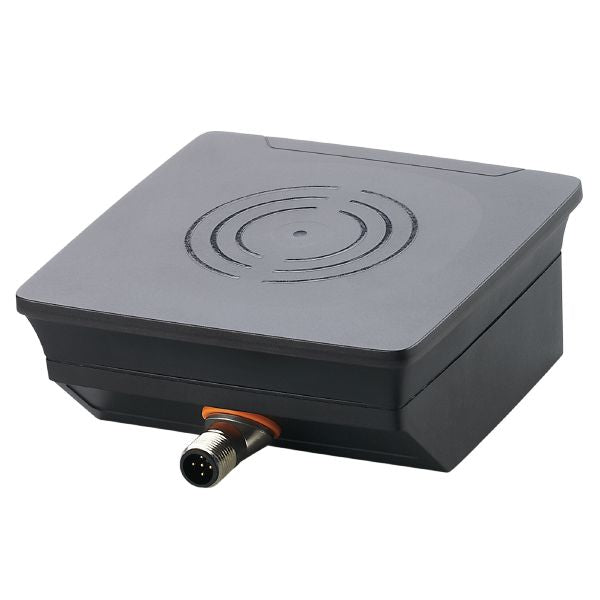

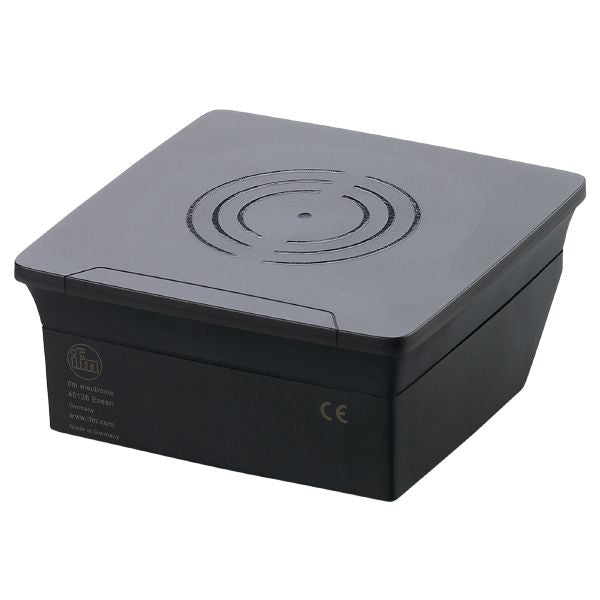

Ifm DTI901 Rfid Uhf Compact Unit
$1,083.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm DTI901 Rfid Uhf Compact Unit is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm DTI901 Rfid Uhf Compact Unit
$1,083.33 USD
Unit price
/
Unavailable
Application
| Application | Detection of objects on transport equipment |
|---|---|
| Radio approval for | Canada; USA |
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 250 |
| Power consumption [W] | 4.8 |
| Protection class | III |
| Operating frequency [MHz] | 902...928 |
| RFID standard | EPC Class1 GEN2/ISO 18000-63 |
| Transmission power EIRP [mW] | 200; (maximum: 410 mW) |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM3 (230,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||
| Electrical safety |
|
||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 635.8 |
|---|---|
| Dimensions [mm] | 120 x 50 x 113 |
| Material | PBT; PC; stainless steel; aluminum |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: 1 x M12; coding: A |
