Ifm | SKU:
IF-DTI410-E

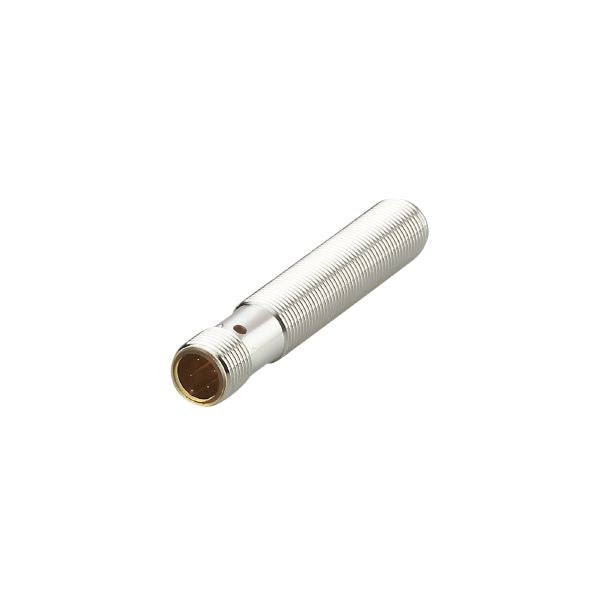

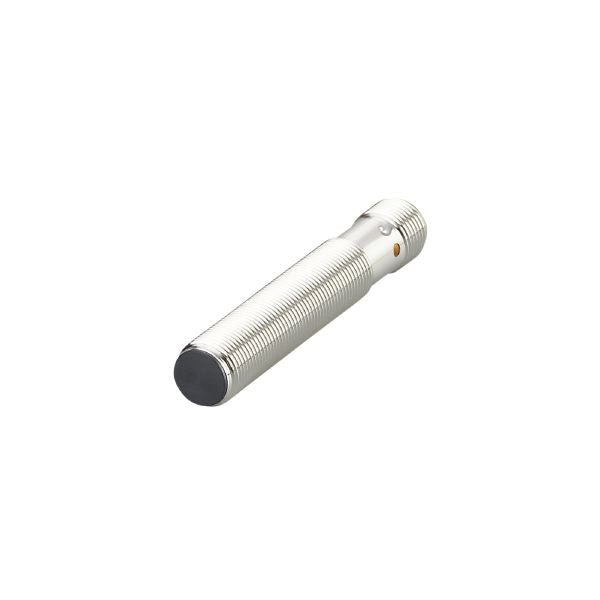

Ifm DTI410 Rfid Read/Write Head Hf
$260.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm DTI410 Rfid Read/Write Head Hf is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm DTI410 Rfid Read/Write Head Hf
$260.00 USD
Unit price
/
Unavailable
Application
| Application | Detection of objects on transport equipment | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 19.2...28.8 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Operating frequency [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Monitoring range
| Distance write/read head front [mm] | 40 | |||
|---|---|---|---|---|
| Distance write/read head side [mm] | 20 | |||
| Distance to the ID tag [mm] |
|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Device Identification | ||||
| SIO mode | no | ||||
| Required master port class | A | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| Shock resistance |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||
| MTTF [years] | 610.46 | ||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 111 |
|---|---|
| Housing | tubular |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 / L = 70 |
| Thread designation | M12 x 1 |
| Material | housing: stainless steel; Protective cover: PPS |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
