Ifm | SKU:
IF-DTE605-E

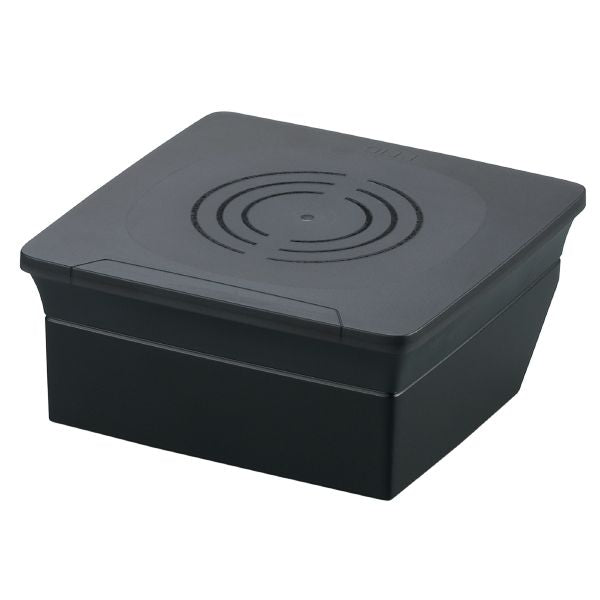

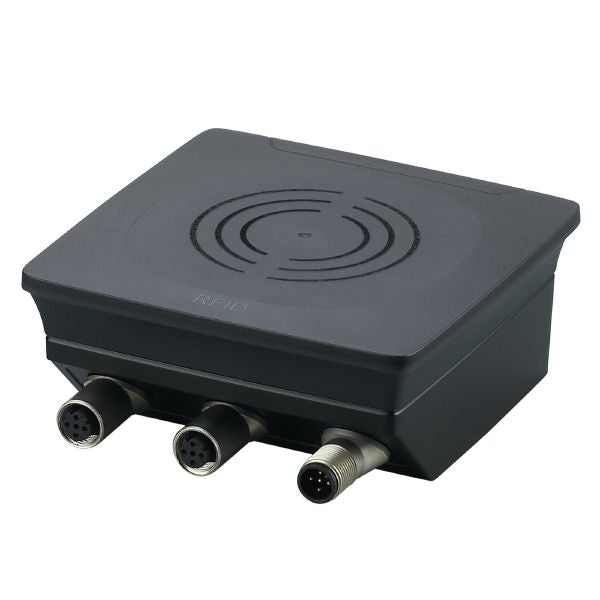

Ifm DTE605 Compact Rfid Device With Fieldbus Interface
$856.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm DTE605 Compact Rfid Device With Fieldbus Interface is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm DTE605 Compact Rfid Device With Fieldbus Interface
$856.67 USD
Unit price
/
Unavailable
Application
| Radio approval for | USA; Canada; South Korea; Japan; Taiwan; Singapore; China; EU/RED; India; Malaysia; Vietnam | |
|---|---|---|
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 19.2...28.8 DC |
|---|---|
| Current consumption [mA] | 500 |
| Protection class | III |
| Operating frequency [MHz] | 13,56 |
| RFID standard | ISO 15693 |
Outputs
| Max. current load per output [mA] | 100; (max.) |
|---|
Monitoring range
| Distance write/read head front [mm] | 600 | ||||||
|---|---|---|---|---|---|---|---|
| Distance write/read head side [mm] | 850 | ||||||
| Note on distance write/read head |
|
||||||
| Distance to the ID tag [mm] |
|
Interfaces
| Communication interface | Ethernet |
|---|
Ethernet - Internet of Things
| Transmission standard | 10Base-T; 100Base-TX | |||
|---|---|---|---|---|
| Transmission rate | 10 MBit/s; 100 MBit/s | |||
| Protocol | MQTT JSON | |||
| Factory settings |
|
|||
| Usage type | Parameter setting; Data transmission |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 645.1 |
|---|---|
| Dimensions [mm] | 113 x 118.6 x 50 |
| Material | PBT / PC; stainless steel; aluminum |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Ethernet
| ETH1 / ETH2 | Connector: 2 x M12; coding: D |
|---|
Electrical connection - voltage supply
| PWR | Connector: 1 x M12; coding: A |
|---|
