Ifm | SKU:
IF-DSU100-E

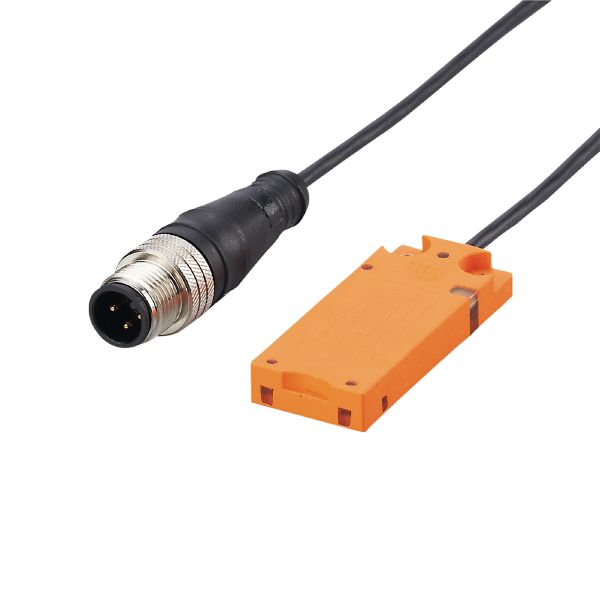

Ifm DSU100 Io-Link Data Memory
$146.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm DSU100 Io-Link Data Memory is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm DSU100 Io-Link Data Memory
$146.67 USD
Unit price
/
Unavailable
Application
| Application | data storage via IO-Link |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Memory size [bit] | 1042432 |
| Memory type | FRAM |
| Max. read cycles | unlimited |
| Max. write cycles | unlimited |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM3 (230,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Device Identification | ||||
| SIO mode | no | ||||
| Required master port class | A | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 59.8 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 20 x 7 x 48 |
| Material | PBT; TPU (urethane); stainless steel |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 1 m, PUR; 3 x 0.14 mm² |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
