Ifm | SKU:
IF-DF3110-E

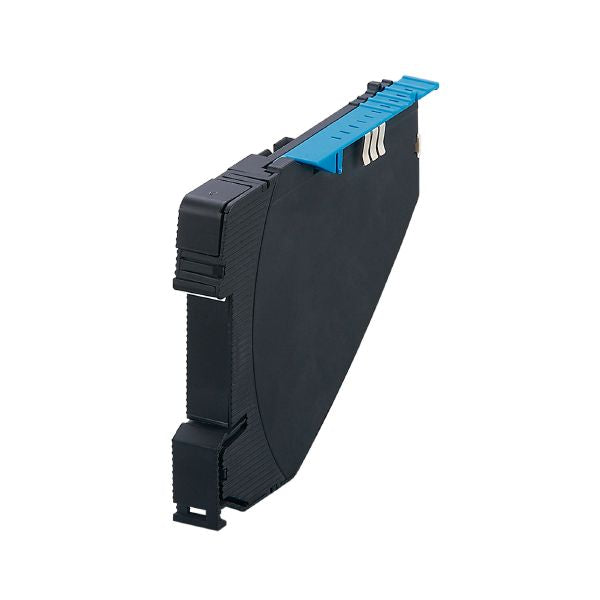

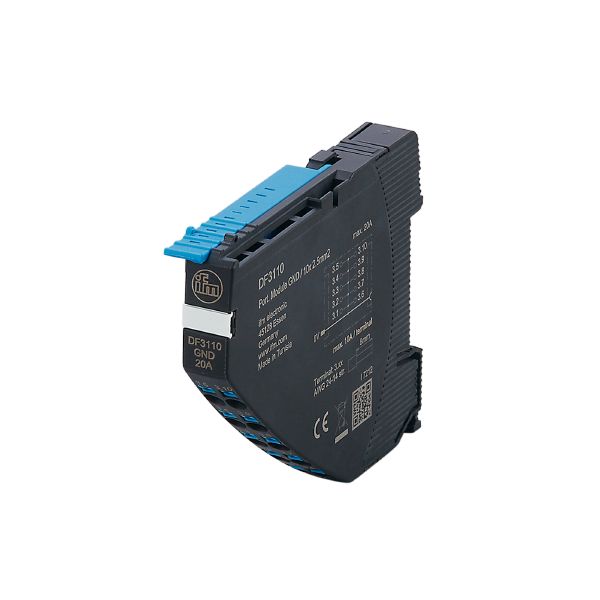

Ifm DF3110 Distribution Module For Ground Potential
$45.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm DF3110 Distribution Module For Ground Potential is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm DF3110 Distribution Module For Ground Potential
$45.56 USD
Unit price
/
Unavailable
Application
| Design | potential module GND (10 x 2,5 mm²) |
|---|
Electrical data
| Operating voltage [V] | 18...30 DC |
|---|---|
| Nominal voltage DC [V] | 24 |
| Protection class | III |
| Max. load current [A] | 20 |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Storage temperature [°C] | -40...70 |
| Protection | IP 20 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 62.5 |
|---|---|
| Type of mounting | Mounting on DIN rail |
| Installation instruction | String mounting possible |
| Dimensions [mm] | 80 x 12.5 x 98.5 |
Electrical connection
| Connection | push-in terminals: |
|---|
