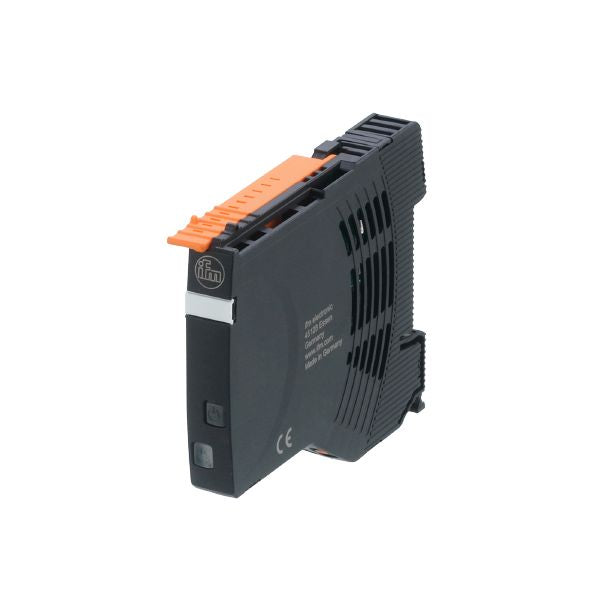

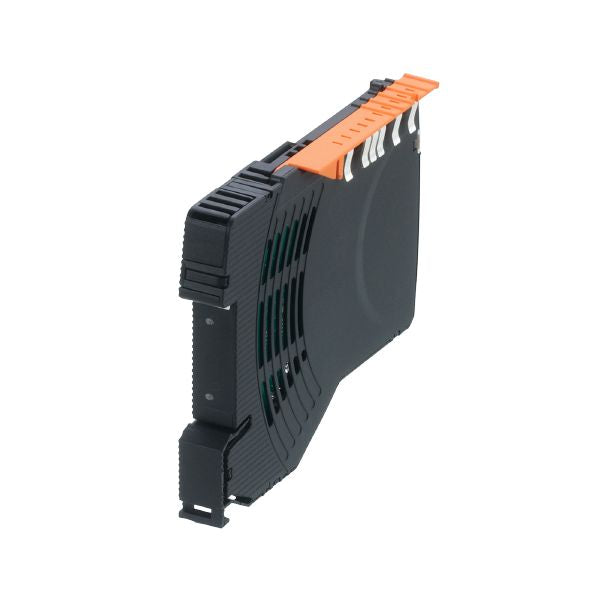

Ifm DF2524 Circuit Protection Module For An Uninterrupted Power Supply

Name: Ifm DF2524 Circuit Protection Module For An Uninterrupted Power Supply
Availability: BackOrder

$93.33 USD

Shipping calculated at checkout.

Ifm DF2524 Circuit Protection Module For An Uninterrupted Power Supply is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Application

Installation	rail TH35; according to EN 60715

Electrical data

Operating voltage [V]	to SELV/PELV ; “supply class 2” according to UR
Nominal voltage DC [V]	24
Input voltage DC [V]	19.2...30
Protection class	III
Reverse polarity protection	yes
Mains buffering time (nominal voltage 24 V DC) [ms]	10
Closed-circuit current [mA]	12
Number of channels	2
Nominal current [A]	1...4
Nominal current (Fail Safe Element) [A]	4

Outputs

Load capacitance, total [mF]	20

Operating conditions

Ambient temperature [°C]	-25...60
Storage temperature [°C]	-40...70
Protection	IP 20; (on the front)
Degree of soiling	2

Tests / approvals

EMC

EN 61000-6-3	radiation of interference
EN 61000-6-2	noise immunity

Mechanical data

Weight [g]	73.5
Dimensions [mm]	80 x 12.5 x 98

Displays / operating elements

Display

status

2 x LED, red / green / orange

Operating elements

2 x	pushbuttons

Electrical connection

Connection	push-in terminals:

Diagrams and graphs

Output curve

	Time-current characteristics
