EVW078 Ifm Electronic, Connection Cable

Name: EVW078 Ifm Electronic, Connection Cable
Availability: BackOrder

SKU WIR-1239-E

$32.01 USD - $32.01 USD

$32.01 USD

$32.01 USD - $32.01 USD

$32.01 USD

Availability:

0 in stock, ready to be shipped

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

by Ifm

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

Description

EVW078 VDOGF030SCS0001T03STGH030SCS

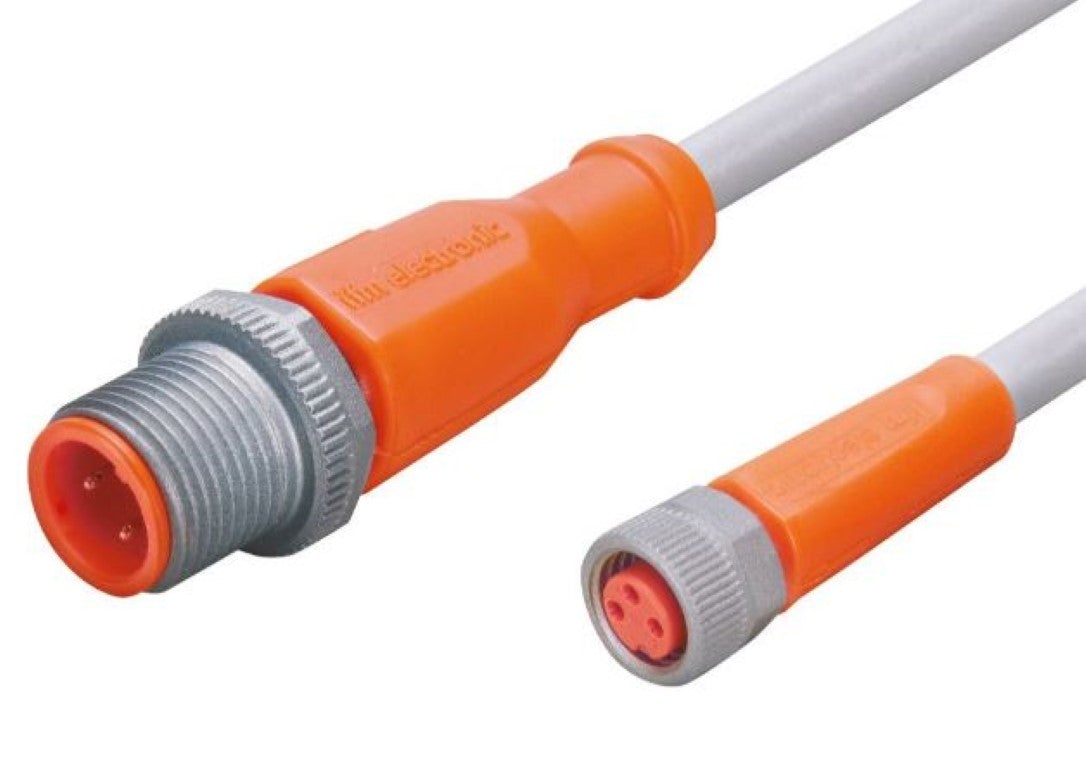

Ifm Electronic, Connection Cable M12 Plug M8 3 Pin

Weld-Slag Resistant Pur Cable With Drag Chain Suitability

Nut With Special Weld-Slag Resistant Coating

High Protection Rating For The Requirements Of Harsh Industrial Environments

Vibration And Shock Resistant Thanks To Coupling Ring With Locking Mechanism

Mechanical End Stop To Protect The O-Ring From Destruction

Special Feature: Free From Silicone; Halogen-free; Gold-plated Contacts; Drag Chain Suitability

Application: Welding Applications

Free From Silicone: Yes

Operating Voltage [V]: < 50 AC / < 60 DC

Protection Class: III

Max. Current Load Total [A]: 3

Ambient Temperature [°C]: -25...90

Note On Ambient Temperature: cULus: ...75

Ambient Temperature (Moving) [°C]: -25...90

Note On Ambient Temperature (Moving): cULus: ...75

Protection: IP 65; IP 67; IP 68; IP 69K

Weight [g]: 51

Materials: Housing: TPU Orange; Sealing: FKM

Material Nut: Brass, Anti-Spatter / Brass, Anti-Spatter
