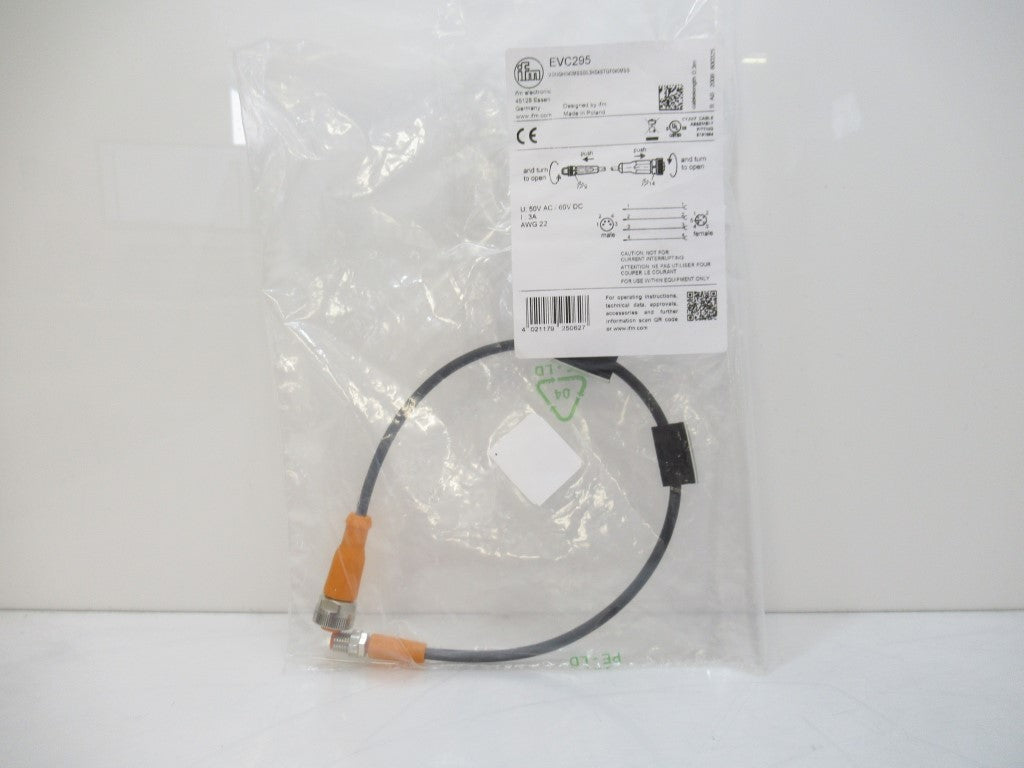

EVC295 Ifm Electronic 0.3 m PUR-Cable; M8 / M12 Connector (New In Bag)

EVC295 Ifm Electronic 0.3 m PUR-Cable; M8 / M12 Connector

SKU WIR-1230-E
$17.76 USD - $17.76 USD
$17.76 USD
$17.76 USD - $17.76 USD
$17.76 USD
Availability:
Only 1 left!

Delivery Option

Ups Express next day air or standard shipping is available at the checkout !

Request a quote
by Ifm

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Condition :

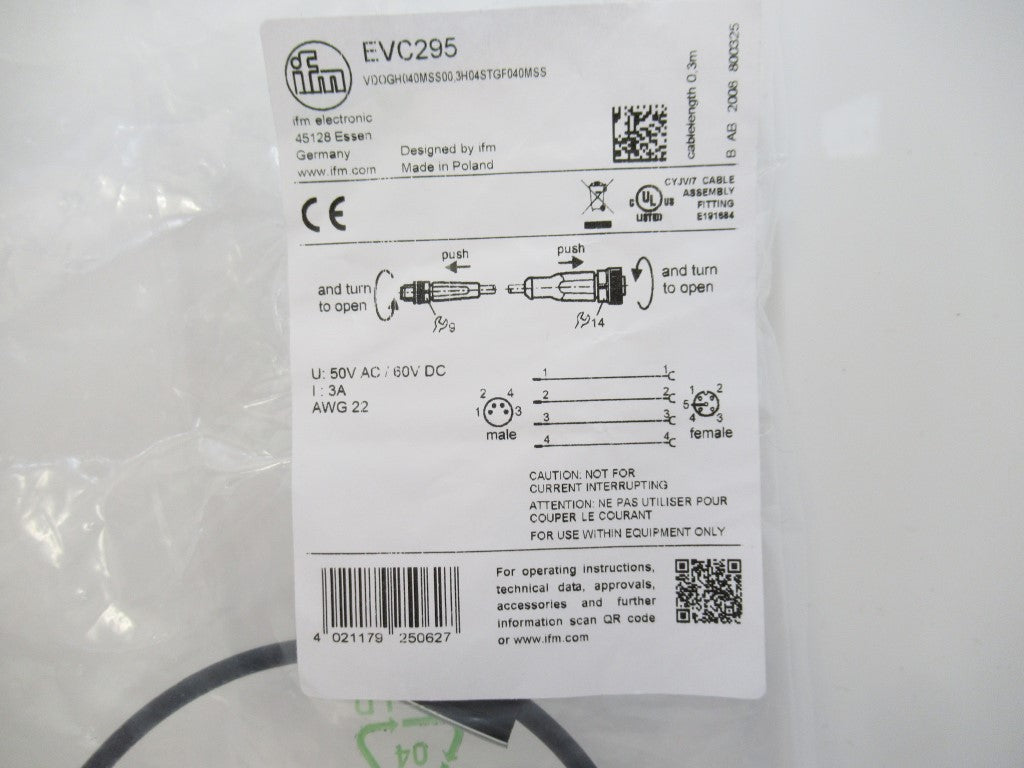

EVC295

VDOGH040MSS00,3H04STGF040MSS VDOGH040MSS003H04STGF040MSS

Ifm Electronic

New In Bag Sealed

Connection cable 0.3 m PUR-Cable; M8 / M12 Connector

Connection cable; Operating voltage < 50 V AC; 0.3 m; PUR; housing materials housing: TPU orange; Sealing: FKM; IP 65; IP 67; IP 68; IP 69K; Free from silicone yes; Halogen-free yes; Gold-plated contacts yes

  • Resistant to oils and coolants
  • Permanent, reliable sealing even when mounted without tools
  • High protection rating for the requirements of harsh industrial environments
  • Vibration and shock resistant thanks to coupling ring with locking mechanism
  • Mechanical end stop to protect the O-ring from destruction
Application
Special feature Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Free from silicone yes
Electrical data
Operating voltage [V] < 50 AC / < 60 DC
Protection class III
Max. current load total [A] 3
Operating conditions
Ambient temperature [°C] -25...90
Note on ambient temperature
cULus: ...75 °C
Ambient temperature (moving) [°C] -25...90
Note on ambient temperature (moving)
cULus: ...75 °C
Protection IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g] 37
Materials housing: TPU orange; Sealing: FKM
Material nut brass, nickel-plated / brass, nickel-plated
Drag chain suitability yes
Drag chain suitability
bending radius for flexible use min. 10 x cable diameter
travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
bending cycles > 5 Mio.
torsional strain ± 180 °/m
Remarks
Notes
Pack quantity 1 pcs.
Electrical connection - plug

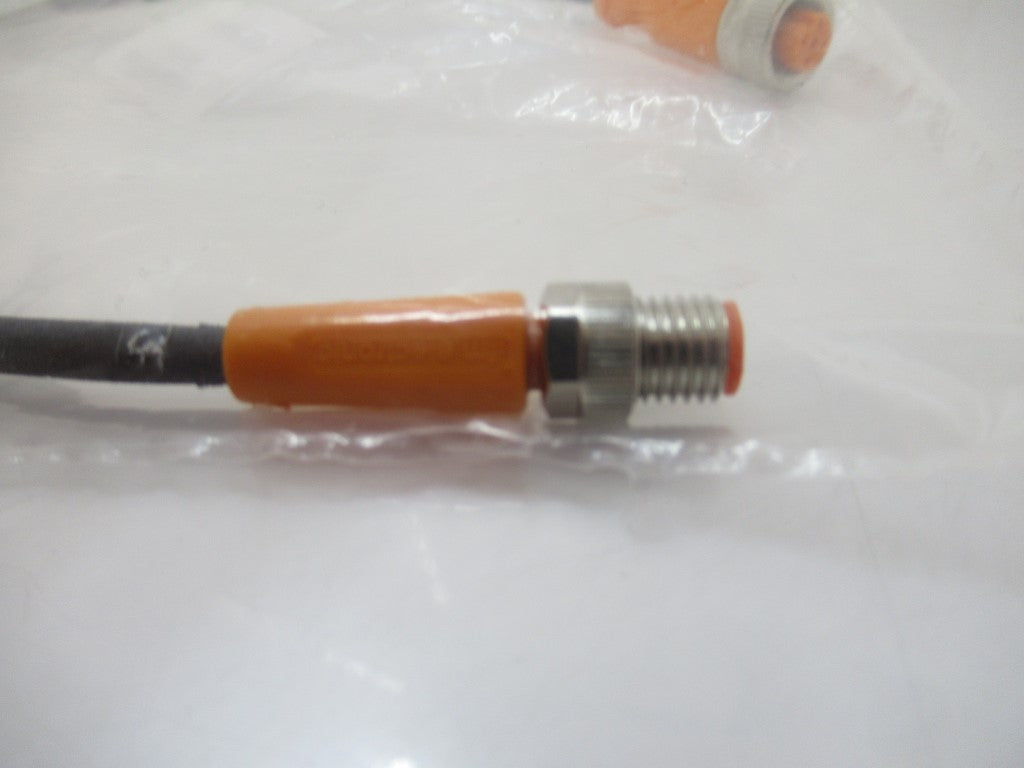

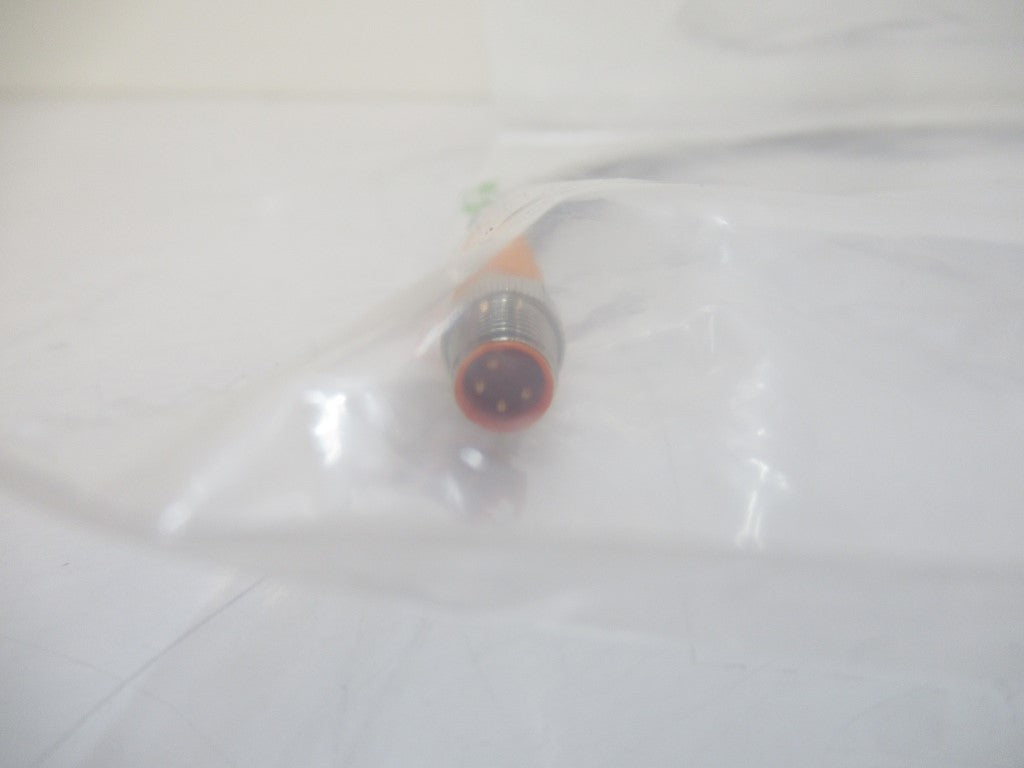

  Connector: 1 x M8, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
Electrical connection
Connection Cable: 0.3 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - socket

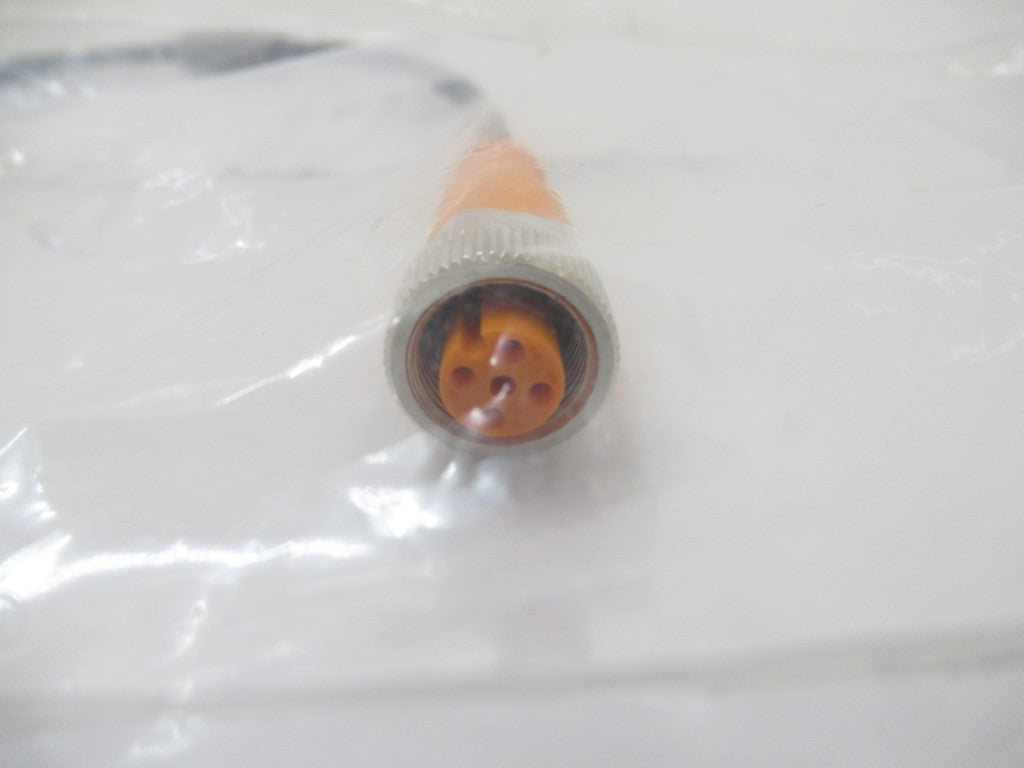

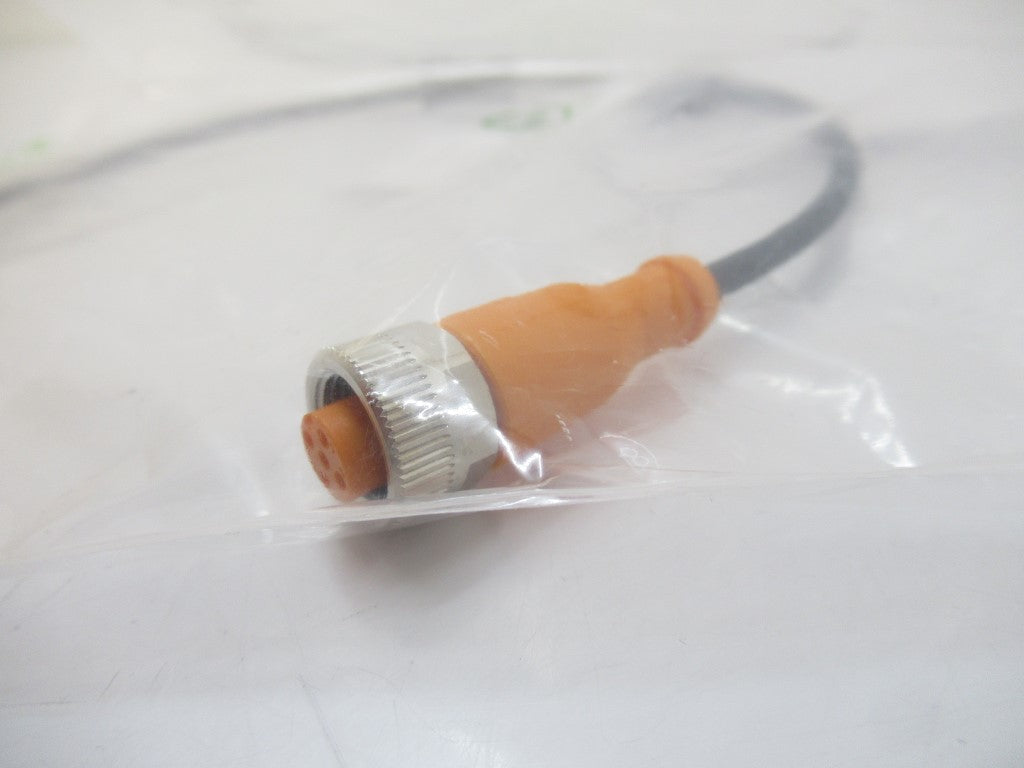

  Connector: 1 x M12, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
