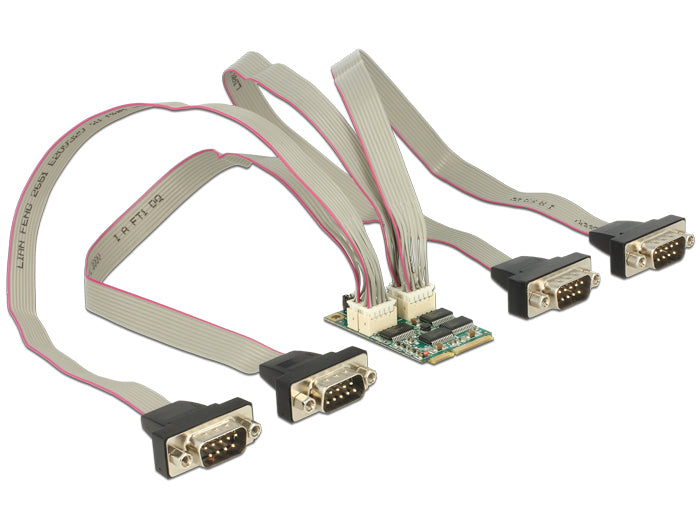

Delock 95244 Module Minipcie I/O Pcie Full Size 4 X Serial Rs-232

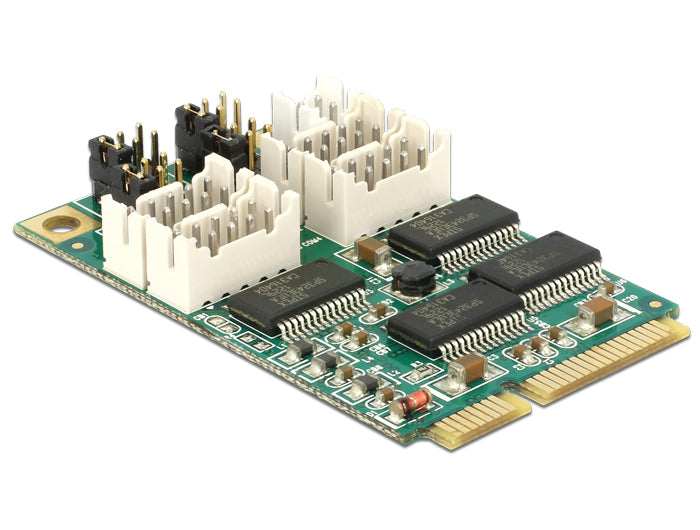

on the module:
4 x 10 pin pin header male

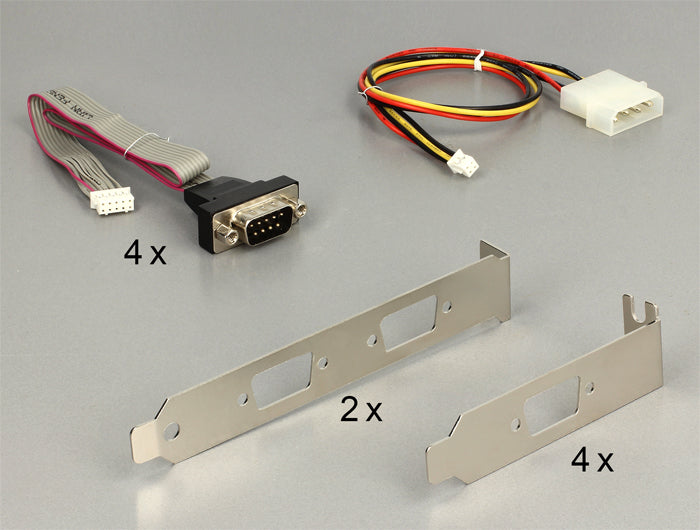

on the slot bracket (standard) 2 x:
2 x serial RS-232 DB9 male with screw nuts
or on the slot bracket (low profile) 4 x:
1 x serial RS-232 DB9 male with screw nuts
• Chipset: Exar XR17V354
• Form factor: MiniPCIe full size
• Interface: PCI Express version 2.0
• Data transfer rate up to 921.6 Kb/s
• Selectable voltage supply 5 V / 12 V or RI
• Compatible with 16C550 UART
• Datenbits: 5, 6, 7, 8
• Signals:TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 5V/12V/RI
• Operating Temperature: -30 ~ 75℃
• Storage Temperature: -40 ~ 85 • Cable length: ca. 30 cm (incl. connector)
• Relative humidity: 0 - 95 % (non condensing)
• Cable length incl. connectors: ca. 30 cm
