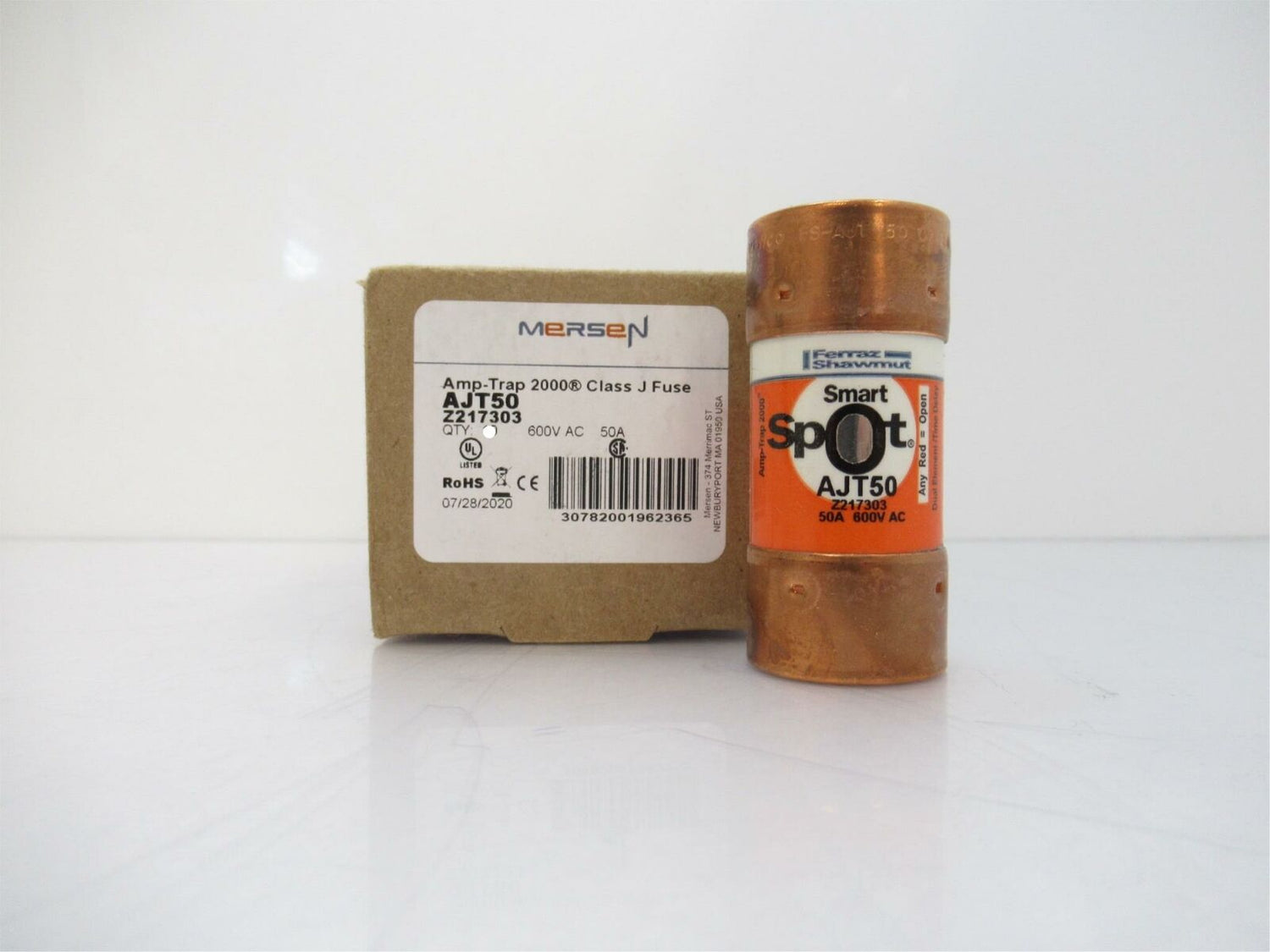

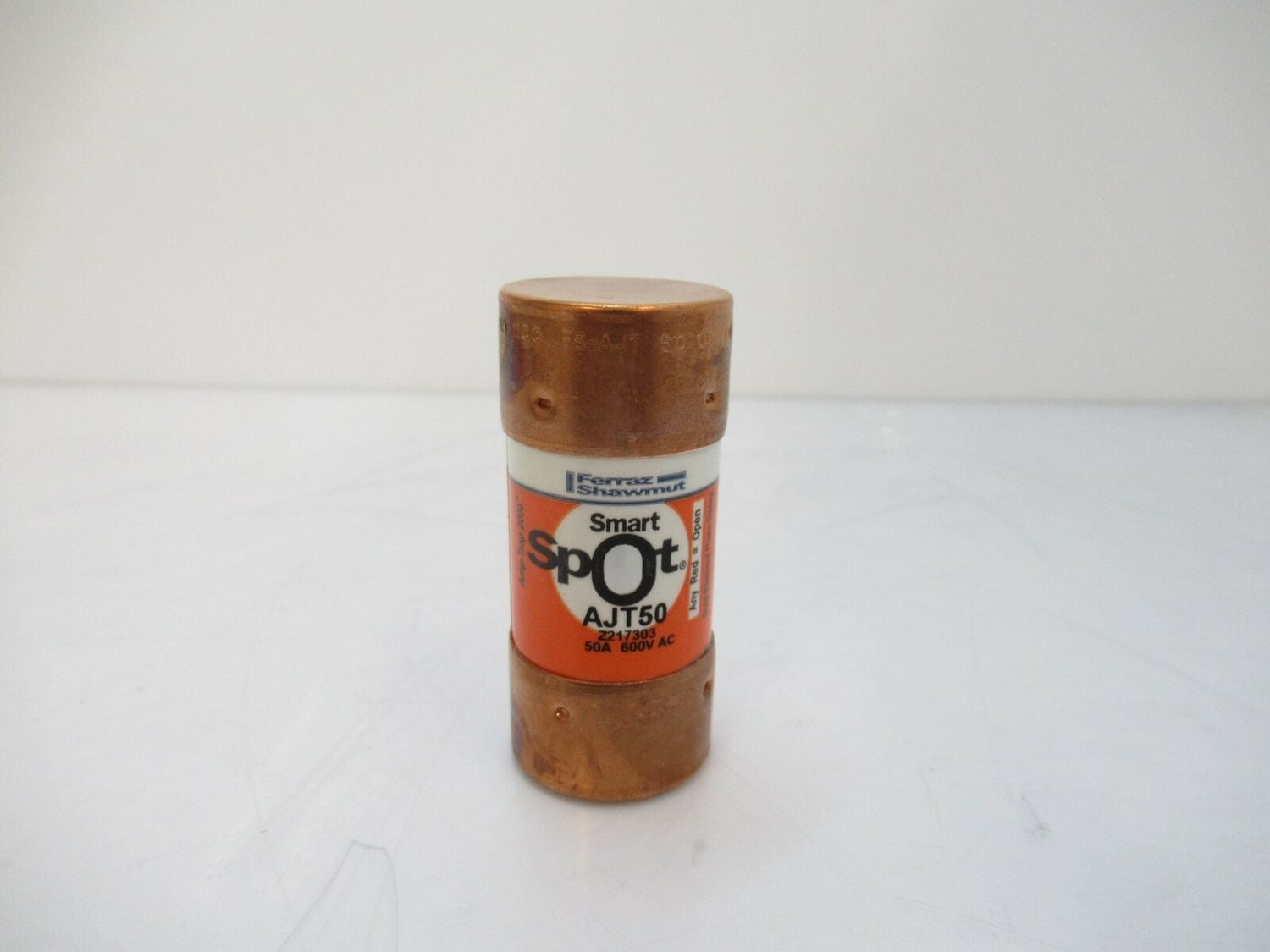

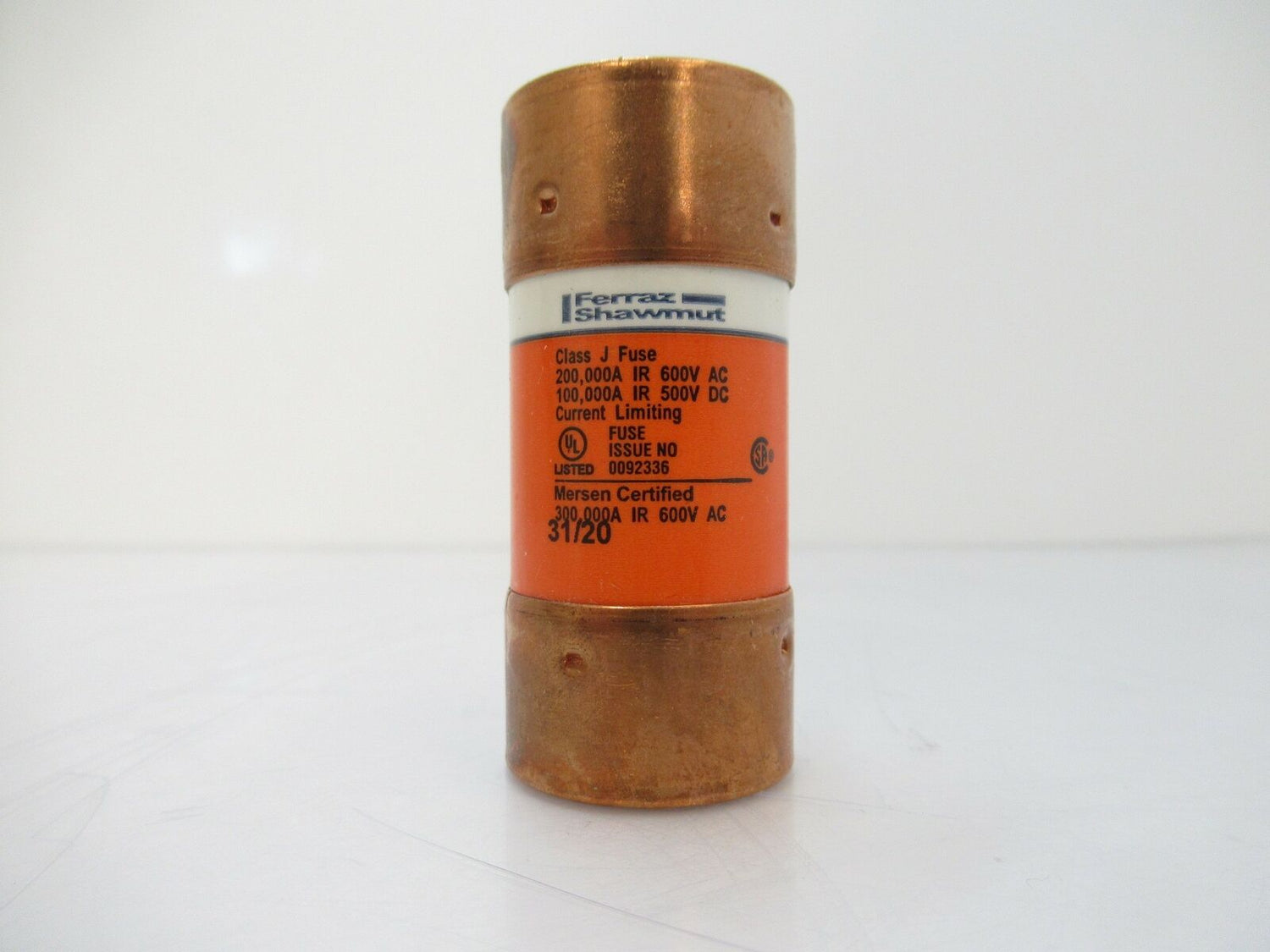

AJT50 Ferraz Shawmut Fuse Time-Delay Class J 50A / 600V AC

AJT50

Mersen Ferraz Shawmut

Fuse, Time-Delay, Class J, Visual Indicator, 200kA AC/100kA DC, 600V AC, 50 Amp

(Sold By Unit, New)

Description

• 0 Amps, 600 Volts AC
• UL Class J Fuse
• Time Delay for Motor Starting and Transformer Inrush
• Solid State SmartSpot Visual Blown Fuse Indicator
• Extremely Current Limiting
• Most Current Limiting UL Class Fuse
• Recommended for Arc Flash Energy Reduction
• Physical Size: 1 1/16" x 2 3/8"
• Metal Embossed Date and Catalog Number for Lasting Identification
• AC Voltage Rating: 600
• DC Voltage Rating: 500
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Listed to Standard 248-8 File E2137
• DC Listed to UL Standard 248
• CSA Certified to Standard C22.2 No. 248.8
• IEC 269-2-1

Related Products

• Ultrasafe Fuse Holders
• 1 Pole: US6J1; 1 Pole with Indicator: US6J1I
• 2 Pole: US6J2; 2 Pole with Indicator: US6J2I
• 3 Pole: US6J3; 3 Pole with Indicator: US6J3I
• Fuse Blocks
• Non-Spring Reinforced, Box Lugs (Al/Cu #2-14)
• 2 Pole: 60602J 3 Pole: 60603J
• Spring Reinforced, Box Lugs (Al/Cu #2-14)
• Adder: 60305J 1 Pole: 60606J 2 Pole: 60607J 3 Pole: 60608J
• Spring Reinforced, Box (Cu #4-14)
• 3 Pole: 60658J
• Fuse Reducers
• 200 Amp to 60 Amp: J266
• 100 Amp to 60 Amp: J166
