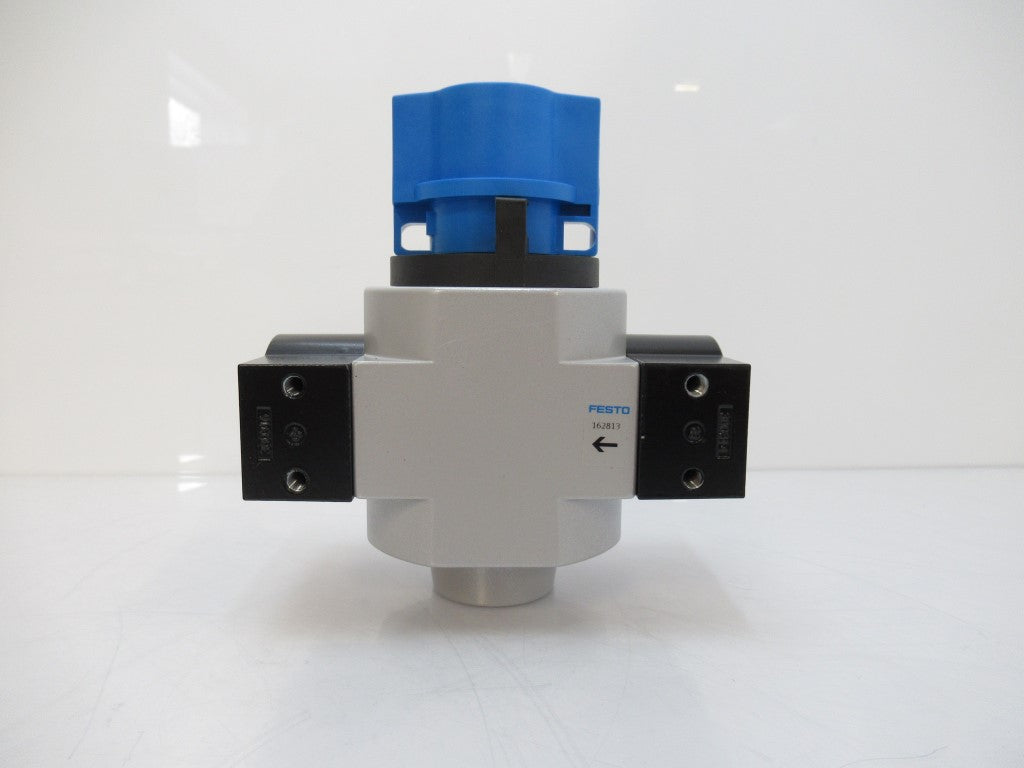

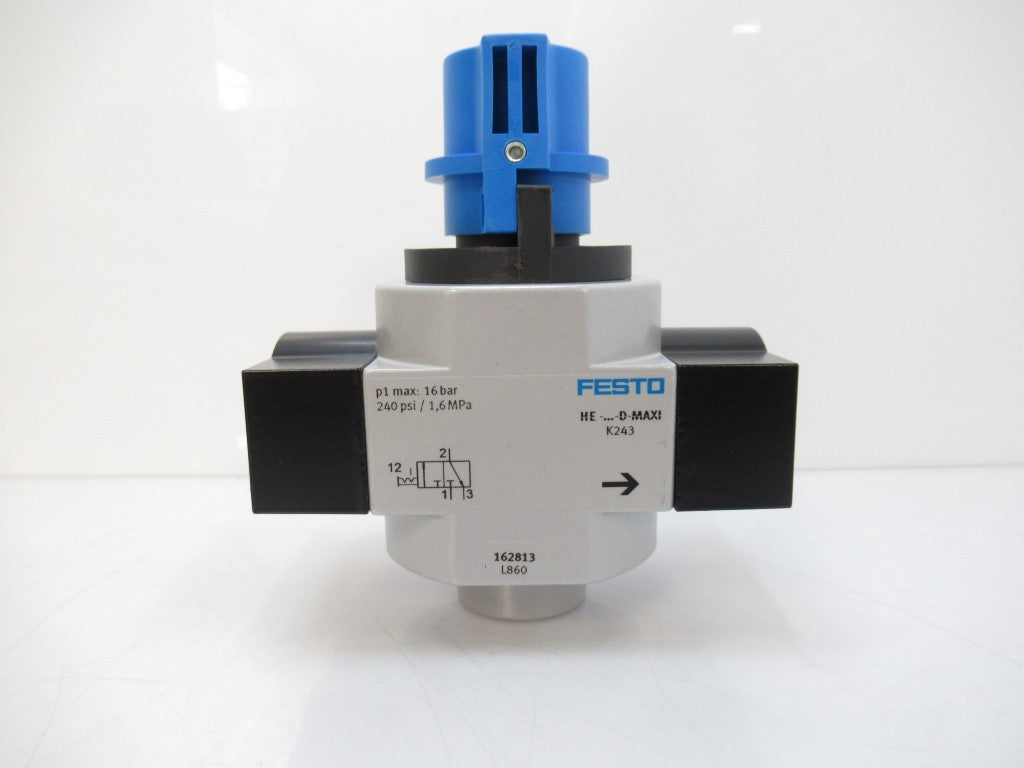

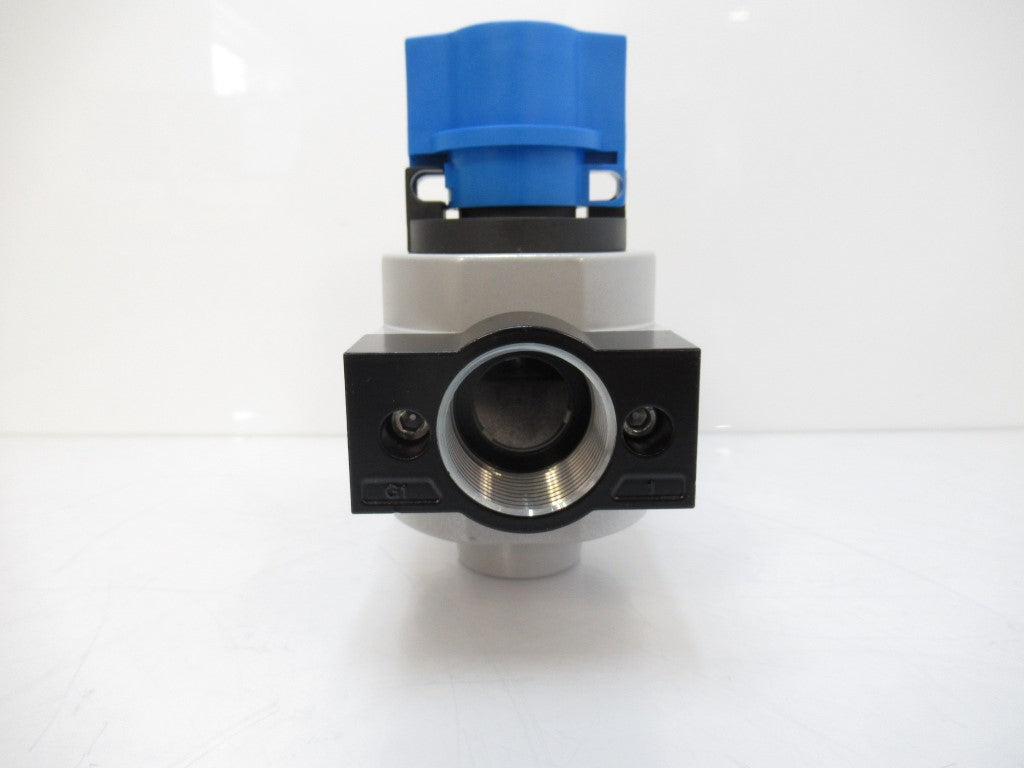

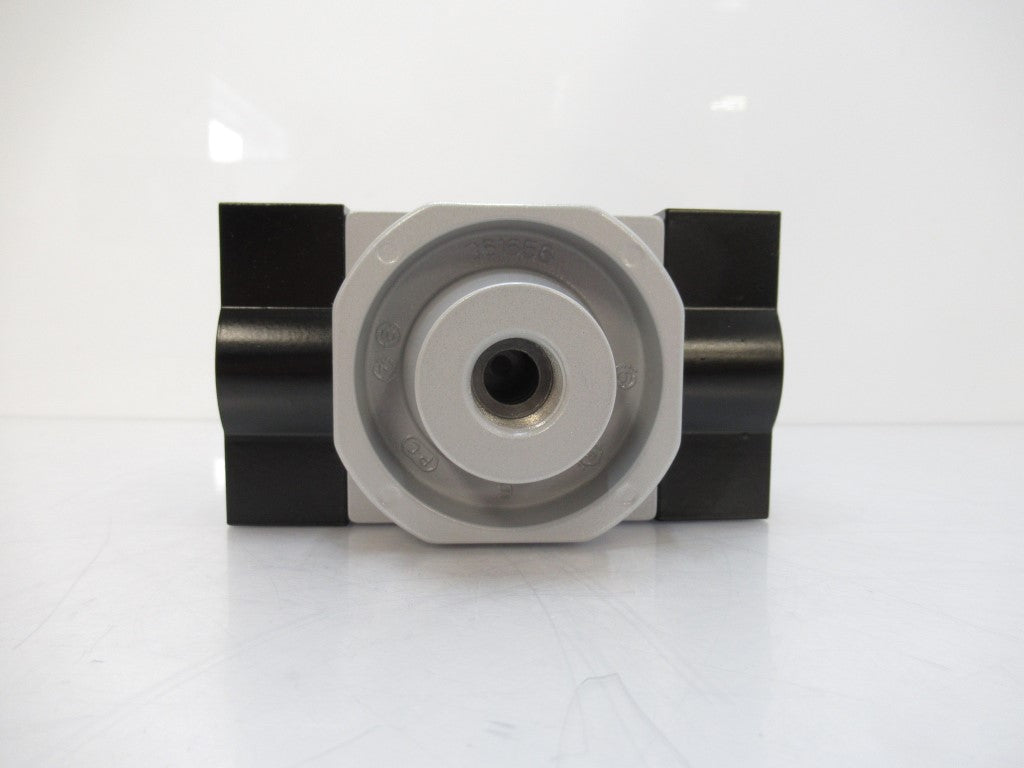

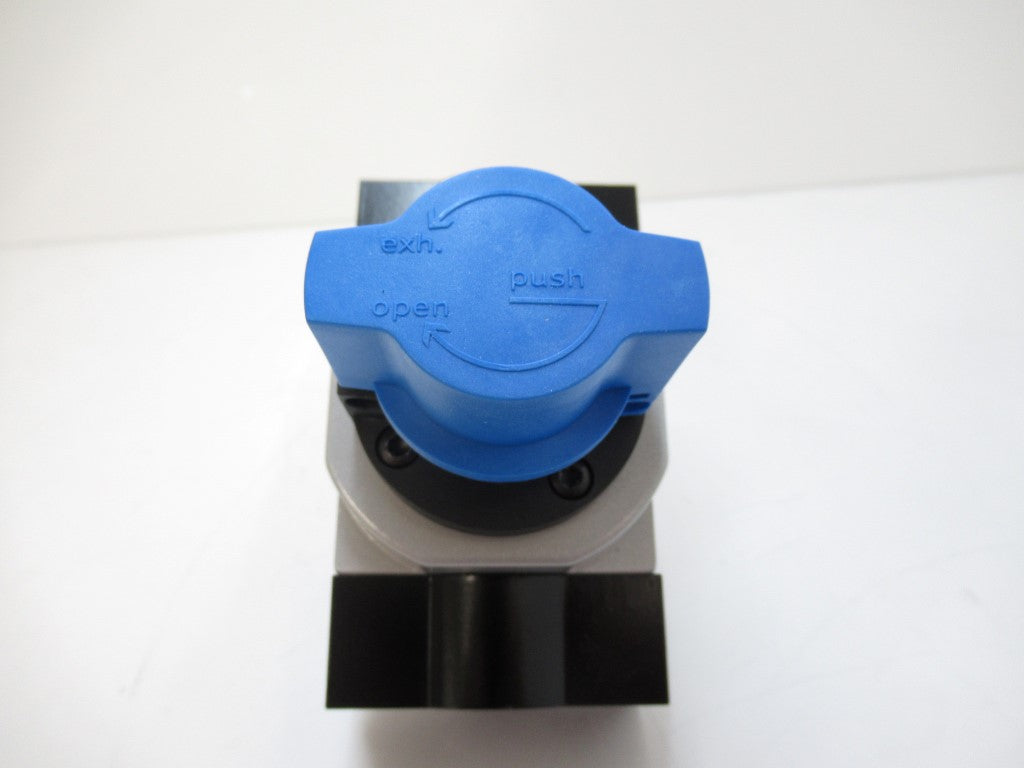

162813 HE-1-D-MAXI Festo On-Off/Soft-Start Valves, D Series
162813 HE-1-D-MAXI HE1DMAXI
Festo
On-Off/Soft-Start Valves, D Series
(New In Box)
Data Sheet
- Design Structure: Piston Slide
- Type Of Actuation: Manual
- Sealing Principle: Soft
- Exhaust-Air Function: Not Throttleable
- Manual Override: None
- Valve Function: 3/2 Bistable
- Operating Pressure: 0 ... 16 bar
- C Value: 25.9 L/s bar
- B Value: 0.37
- Standard Nominal Flow Rate: 6,500 L/Min
- Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4] Inert Gases
- Note On Operating And Pilot Medium: Lubricated Operation Possible (Subsequently Required For Further Operation)
- Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
- Materials Note: Conforms To RoHS
- Medium Temperature: -10 ... 60 °C
- Ambient Temperature: -10 ... 60 °C
- Maritime Classification: See Certificate
- Mounting Type: Line Installation With Accessories
- Assembly Position: Any
- Flow Direction: Non Reversible
- Product Weight: 796 G
- Pneumatic Connection, Port 1: G1
- Pneumatic Connection, Port 2: G1
- Pneumatic Connection, Port 3: G3/8
- Air Purity Class At Output: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4] Inert Gases
- Material Seals: NBR
- Material Housing: Aluminium Die Cast
