Ifm | SKU: IF-SR5900-E | Barcode: DOES NOT APPLY

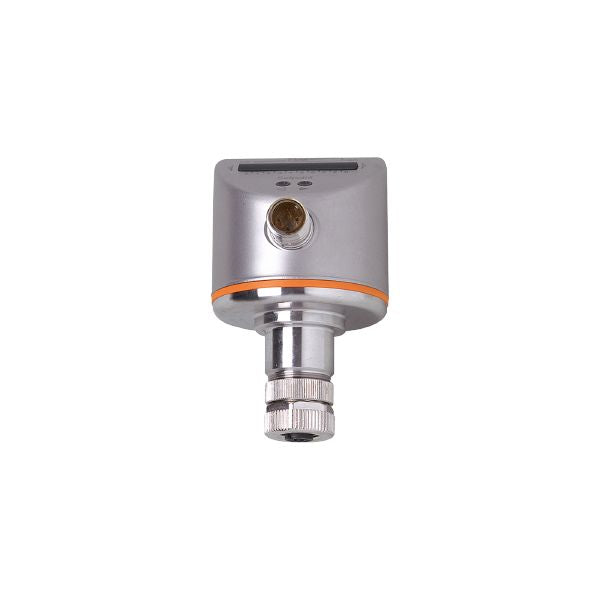

Ifm SR5900 Control Monitor For Flow Sensors

Name: Ifm SR5900 Control Monitor For Flow Sensors
Availability: BackOrder

$421.67 USD

Shipping calculated at checkout.

Ifm SR5900 Control Monitor For Flow Sensors is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Application

Application	Flow monitoring; Wire break monitoring

Electrical data

Operating voltage [V]	19...36 DC
Current consumption [mA]	< 70
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	10
Number of channels	1

Outputs

Electrical design	PNP
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching function flow monitoring	output switches when flow is present: ON for output function = normally open / OFF for output function = normally closed
Short-circuit protection	yes
Overload protection	yes

Software / programming

Adjustment of the switch point	pushbuttons

Operating conditions

Ambient temperature [°C]	-20...60
Protection	IP 67; (with sensor attached)

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V

Shock resistance

DIN IEC 68-2-27

30 g (6 ms)

Vibration resistance

DIN IEC 68-2-6

5 g (55...2000 Hz)

MTTF [years]

342

Mechanical data

Weight [g]	225.5
Material	stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X; brass

Displays / operating elements

Display

Function	LED, bar graph
Switching status	LED, orange flash in case of wire break

Remarks

connection for flow sensor without short-circuit protection / reverse polarity protection

The flow sensor must be directly connected to the control monitor.

A connection by means of extension cables is not allowed.

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
