Ifm | SKU:
IF-SR307A-E

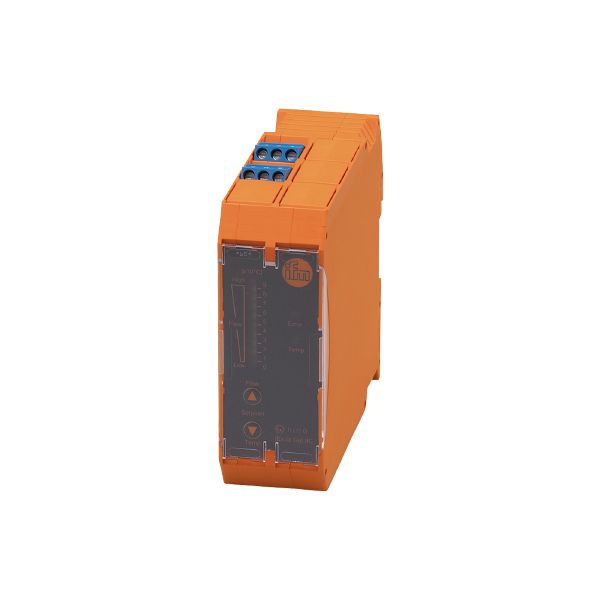

Ifm SR307A Control Monitor For Flow Sensors
$1,138.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm SR307A Control Monitor For Flow Sensors is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm SR307A Control Monitor For Flow Sensors
$1,138.33 USD
Unit price
/
Unavailable
Application
| Application | Flow monitoring; Temperature monitoring; Wire break monitoring |
|---|
Electrical data
| Operating voltage tolerance [%] | -15...15 |
|---|---|
| Operating voltage [V] | 24 DC |
| Current consumption [mA] | 100 |
| Reverse polarity protection | no |
| Power-on delay time [s] | 10 |
| Number of channels | 1 |
Outputs
| Performance in case of a fault | Relay de-energized in case of the following faults: wire break, reverse polarity or short circuit of the sensor cable, undervoltage, internal fault |
|---|---|
| Electrical design | Relay |
| Contact rating | 4 A (250 V AC cos phi > 0,7) ; 0,2 A (250 V DC); 4 A (24 V DC) |
| Switching function flow monitoring | relay energized when flow is present |
| Switching function temperature monitoring | relay de-energized when temperature is exceeded |
| Short-circuit proof | no |
| Overload protection | no |
Software / programming
| Adjustment of the switch point | Programming buttons |
|---|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
Tests / approvals
| Approval | CSANe 21ATEX2238; IECEx CSA 21.0044 |
|---|---|
| ATEX marking |
|
|
|
|
| MTTF [years] | 124 |
Mechanical data
| Weight [g] | 368 |
|---|---|
| Housing | housing for DIN rail mounting |
| Dimensions [mm] | 104.5 x 32.5 x 113.6 |
| Material | PA |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting; Place the fuse outside the hazardous area. |
|---|
Remarks
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: 15 x ...2.5 mm² |
|---|
Other data
Maximum values for control circuit
| in protection rating intrinsic safety | [Ex ia Ga] IIC | [Ex ia Ga] IIB | [Ex ib Gb] IIC | [Ex ib Gb] IIB |
| Voltage [V] | 9.6 | 9.6 | 9.6 | 9.6 |
| Current [mA] | 332 | 332 | 332 | 332 |
| Power [mW] | 531 | 531 | 531 | 531 |
| External inductance [mH] | 0.3 | 1.2 | 0.3 | 1.2 |
| External capacitance [µF] | 3.15 | 25.55 | 3.15 | 25.55 |
