Ifm | SKU: IF-SR0127-E | Barcode: DOES NOT APPLY

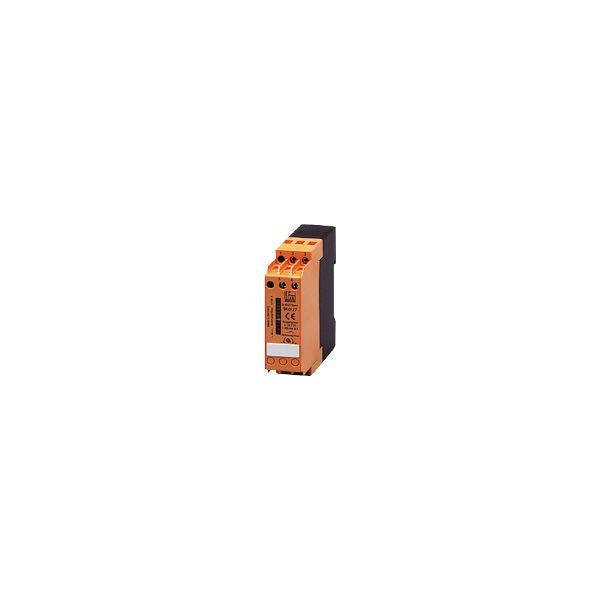

Ifm SR0127 Control Monitor For Flow Sensors

Name: Ifm SR0127 Control Monitor For Flow Sensors
Availability: BackOrder

$295.56 USD

Shipping calculated at checkout.

Ifm SR0127 Control Monitor For Flow Sensors is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Application

Application	Flow monitoring
Media	Liquids

Electrical data

Operating voltage tolerance [%]	-10...10
Operating voltage [V]	24 DC
Current consumption [mA]	< 45
Reverse polarity protection	yes
Power-on delay time [s]	< 20
Number of channels	1

Outputs

Electrical design	PNP
Permanent current rating of switching output DC [mA]	400
Switching function flow monitoring	output switches ON when flow is present
Switching function wire break monitoring	output switches OFF in case of wire break
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Software / programming

Adjustment of the switch point	potentiometer

Operating conditions

Ambient temperature [°C]	0...60
Protection	IP 50
Protection rating terminals	IP 20

Tests / approvals

MTTF [years]	624

Mechanical data

Weight [g]	142.5
Housing	housing for DIN rail mounting
Dimensions [mm]	78 x 22.5 x 100
Material	plastics

Displays / operating elements

Display

Function

11 x LED

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: 12 x ...2.5 mm²
