Ifm | SKU:
IF-SN0151-E

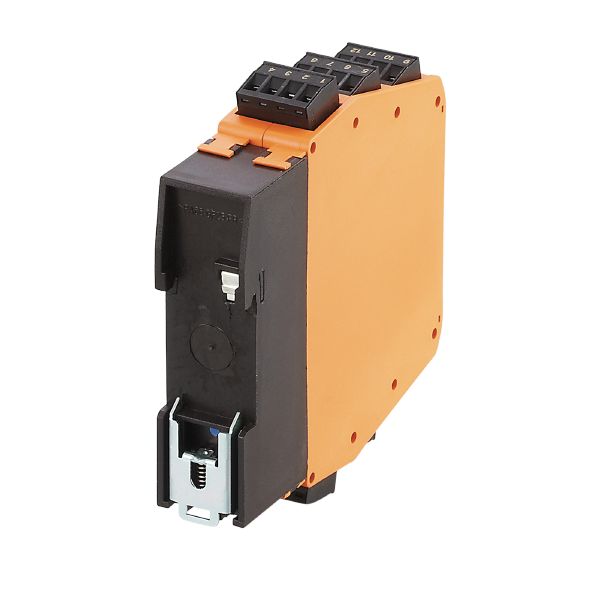

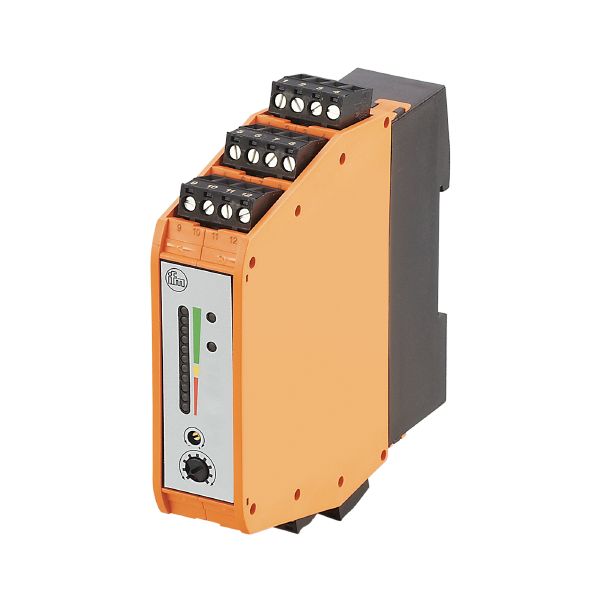

Ifm SN0151 Control Monitor For Flow Sensors
$572.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm SN0151 Control Monitor For Flow Sensors is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm SN0151 Control Monitor For Flow Sensors
$572.22 USD
Unit price
/
Unavailable
Application
| Application | Flow monitoring; Temperature monitoring; Wire break monitoring |
|---|
Electrical data
| Frequency AC [Hz] | 47...63 |
|---|---|
| Operating voltage tolerance [%] | -5...10 |
| Operating voltage [V] | 90...240 AC |
| Max. power consumption [VA] | 4 |
| Protection class | II |
| Reverse polarity protection | no |
| Power-on delay time [s] | 10...80; (adjustable (fixed-value resistors terminals 22-23)) |
| Number of channels | 1 |
Outputs
| Performance in case of a fault | In case of undervoltage all relays are de-energized, the LED "LOW VOLTAGE/WIRE BREAK-RELAY" lights |
|---|---|
| Electrical design | Relay |
| Contact rating | 4 A (250 V AC / 30 V DC) |
| Switching function flow monitoring | relay energized when flow is present and during the power-on delay time |
| Switching function temperature monitoring | relay de-energized when temperature is exceeded |
| Switching function wire break monitoring | relay de-energized in case of wire-break or short circuit |
| Short-circuit proof | no |
| Overload protection | no |
Reaction times
| Response time [s] | < 3 |
|---|
Software / programming
| Adjustment of the switch point | potentiometer |
|---|---|
| Selection liquids / gases | wire bridge; on delivery: monitoring of liquids.; for monitoring of gases: link terminals 23 / 24. |
| Switch point setting | potentiometer |
| Temperature range [°C] | 0...80 |
| Repeatability switch point / measured value [K] | 4 |
Operating conditions
| Ambient temperature [°C] | -20...60 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Protection | IP 20 |
Tests / approvals
| MTTF [years] | 168 |
|---|
Mechanical data
| Weight [g] | 249 |
|---|---|
| Housing | housing for DIN rail mounting |
| Dimensions [mm] | 100 x 25 x 103.5 |
| Material | PBT |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting |
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Combicon connector: |
|---|
