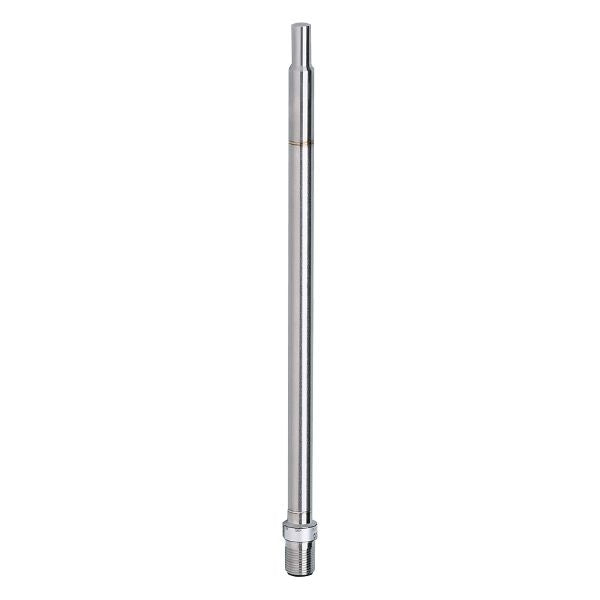

Ifm SF6200 Flow Sensor For Connection To An Evaluation Unit
$400.00 USD
Unit price
/
Unavailable
Product characteristics
| Probe length L [mm] | 15...156 |
|---|---|
| Process connection | Ø 10 mm |
Application
| System | gold-plated contacts |
|---|---|
| Application | high temperature |
| Installation | Sensor suitable for clamp fitting |
| Media | Liquids; Gases |
| Medium temperature [°C] | -25...80 |
| Pressure rating [bar] | 30 |
Liquids
| Application | high temperature |
|---|---|
| Installation | Sensor suitable for clamp fitting |
| Medium temperature [°C] | -25...80 |
Gases
| Medium temperature [°C] | -25...80 |
|---|
Electrical data
| Connection to control monitor | VS3000 |
|---|
Measuring/setting range
| Probe length L [mm] | 15...156 |
|---|
Liquids
| Setting range [cm/s] | 3...300 |
|---|---|
| Greatest sensitivity [cm/s] | 3...60 |
Gases
| Setting range [cm/s] | 200...3000 |
|---|---|
| Greatest sensitivity [cm/s] | 200...800 |
Accuracy / deviations
| Max. temperature gradient of medium [K/min] | 30 |
|---|
Reaction times
| Response time [s] | 1...10 |
|---|
Liquids
| Response time [s] | 1...10 |
|---|
Gases
| Response time [s] | 1...10 |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 8583 |
Mechanical data
| Weight [g] | 89 |
|---|---|
| Dimensions [mm] | Ø 10 |
| Material | stainless steel (1.4404 / 316L) several parts, welded |
| Materials (wetted parts) | stainless steel (1.4404 / 316L) several parts, welded |
| Process connection | Ø 10 mm |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated; Maximum cable length: 100 m |
|---|
