Ifm | SKU:
IF-SF2405-E

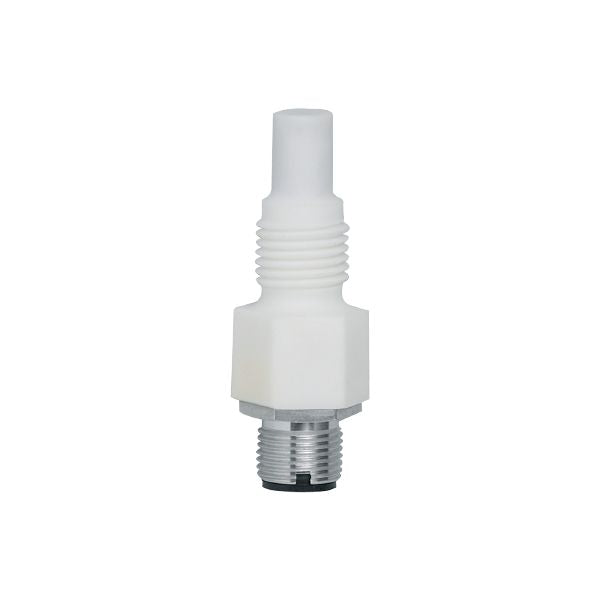

Ifm SF2405 Flow Sensor For Connection To An Evaluation Unit
$474.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm SF2405 Flow Sensor For Connection To An Evaluation Unit is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm SF2405 Flow Sensor For Connection To An Evaluation Unit
$474.44 USD
Unit price
/
Unavailable
Product characteristics
| Probe length L [mm] | 12 |
|---|---|
| Process connection | G 1/4 external thread |
Application
| Media | Liquids; aggressive media |
|---|---|
| Medium temperature [°C] | 5...70 |
| Pressure rating [bar] | 30 |
Liquids
| Medium temperature [°C] | 5...70 |
|---|
Electrical data
| Connection to control monitor | VS3000 |
|---|
Measuring/setting range
| Probe length L [mm] | 12 |
|---|
Liquids
| Setting range [cm/s] | 3...60 |
|---|---|
| Greatest sensitivity [cm/s] | 3...40 |
Accuracy / deviations
| Max. temperature gradient of medium [K/min] | 7 |
|---|
Reaction times
| Response time [s] | 2...20 |
|---|
Liquids
| Response time [s] | 2...20 |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 8648 |
Mechanical data
| Weight [g] | 41.5 |
|---|---|
| Housing | Threaded type |
| Material | ceramics (99.7 % Al2O3) |
| Materials (wetted parts) | ceramics (99.7 % Al2O3) |
| Process connection | G 1/4 external thread |
| Installation length EL [mm] | 27 |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Maximum cable length: 100 m |
|---|
