Ifm | SKU:
IF-SF0516-E

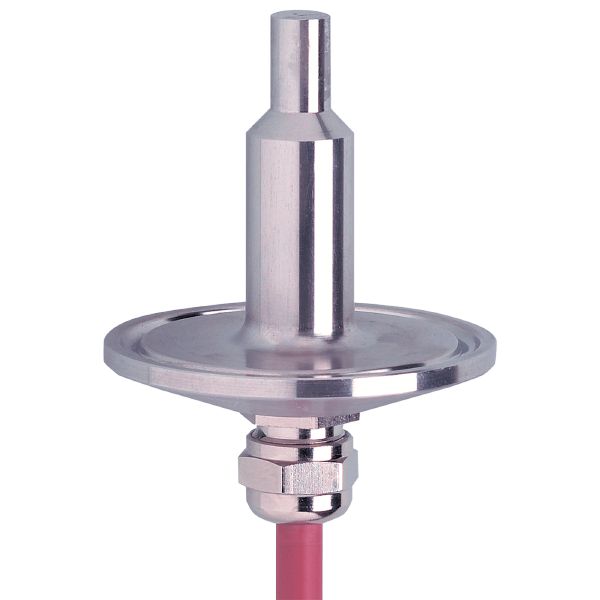

Ifm SF0516 Flow Sensor For Connection To An Evaluation Unit
$725.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm SF0516 Flow Sensor For Connection To An Evaluation Unit is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm SF0516 Flow Sensor For Connection To An Evaluation Unit
$725.56 USD
Unit price
/
Unavailable
Product characteristics
| Probe length L [mm] | 42 |
|---|---|
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
Application
| Application | high temperature; hygienic applications |
|---|---|
| Pressure rating [bar] | 30 |
Liquids
| Application | high temperature; hygienic applications |
|---|---|
| Medium temperature [°C] | 0...120 |
Gases
| Medium temperature [°C] | 0...100 |
|---|
Electrical data
| Connection to control monitor | VS3000 |
|---|
Measuring/setting range
| Probe length L [mm] | 42 |
|---|
Liquids
| Setting range [cm/s] | 3...300 |
|---|---|
| Greatest sensitivity [cm/s] | 3...60 |
Gases
| Setting range [cm/s] | 200...2000 |
|---|---|
| Greatest sensitivity [cm/s] | 200...800 |
Accuracy / deviations
| Max. temperature gradient of medium [K/min] | 15 |
|---|
Reaction times
| Response time [s] | 1...10 |
|---|
Liquids
| Response time [s] | 1...10 |
|---|
Gases
| Response time [s] | 1...10 |
|---|
Operating conditions
| Protection | IP 67 |
|---|
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 8648 |
Mechanical data
| Weight [g] | 485 |
|---|---|
| Material | stainless steel (1.4571/316Ti ) |
| Materials (wetted parts) | stainless steel (1.4571/316Ti ) |
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 6 m, silicone; Maximum cable length: 100 m; 5 x 0.34 mm² |
|---|
