Ifm | SKU:
IF-SBU323-E

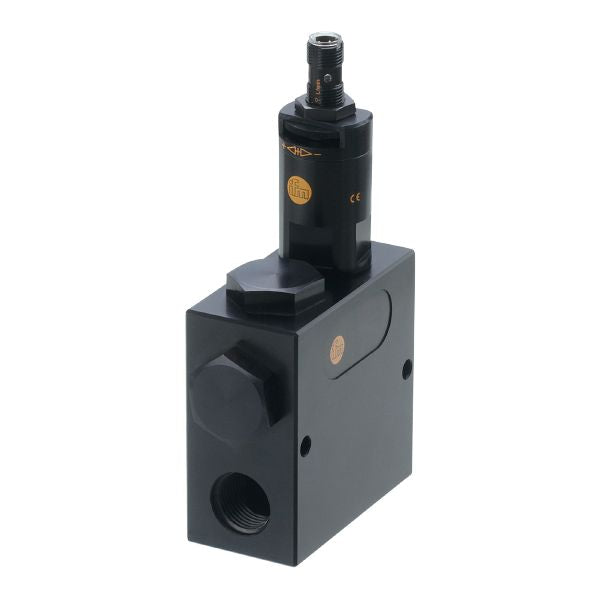

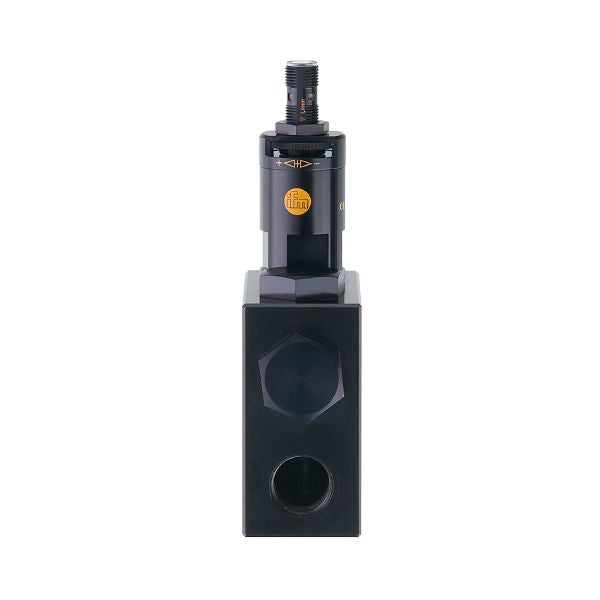

Ifm SBU323 Flow Sensor With Fast Response Time
$918.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm SBU323 Flow Sensor With Fast Response Time is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm SBU323 Flow Sensor With Fast Response Time
$918.33 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|---|
| Process connection | G 1/2 |
Application
| Application | Machine tools; Internal cooling of drill |
|---|---|
| Medium temperature [°C] | 0...60 |
| Pressure rating [bar] | 200 |
| Pressure rating [MPa] | 20 |
Electrical data
| Operating voltage [V] | 10...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Flow range [l/min] | 75 |
|---|---|
| Setting range [l/min] | 0.3...25 |
Accuracy / deviations
| Repeatability [% of the final value] | 1 |
|---|---|
| Hysteresis [l/min] | 0,1...1 |
| Measuring error [% of the final value] | ± 5 |
Reaction times
| Response time [s] | < 0.01 |
|---|
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | -15...80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 15.78 |
Mechanical data
| Weight [g] | 767 |
|---|---|
| Material | aluminum anodized; PA |
| Materials (wetted parts) | stainless steel (1.4310 / 301); stainless steel (1.4301 / 304); aluminum anodized; PBT; PU; O-ring: FKM |
| Process connection | G 1/2 |
| Switching cycles mechanical | 10 million |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
||||
|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
|
|
|
|---|
