Ifm | SKU:
IF-PN7097-E

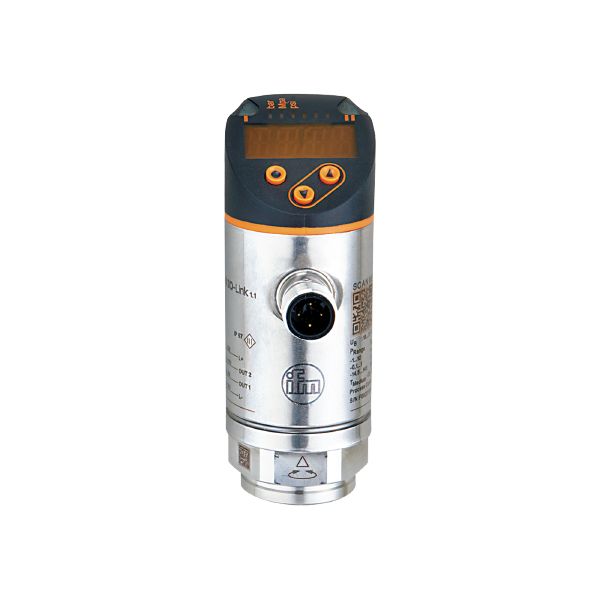

Ifm PN7097 Pressure Sensor With Display
$483.89 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm PN7097 Pressure Sensor With Display is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm PN7097 Pressure Sensor With Display
$483.89 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 | |||||
|---|---|---|---|---|---|---|
| Measuring range |
|
|||||
| Process connection | threaded connection G 1/4 Internal thread |
Application
| System | gold-plated contacts | ||||
|---|---|---|---|---|---|
| Measuring element | ceramic-capacitive pressure measuring cell | ||||
| Application | for industrial applications | ||||
| Media | liquids and gases | ||||
| Medium temperature [°C] | -25...80 | ||||
| Min. bursting pressure |
|
||||
| Pressure rating |
|
||||
| Vacuum resistance [mbar] | -1000 | ||||
| Type of pressure | relative pressure |
Electrical data
| Operating voltage [V] | 18...30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 35 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 0.3 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C) 250 (...40 °C)) |
| Switching frequency DC [Hz] | < 170 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Measuring/setting range
| Measuring range |
|
|---|
Factory setting / CMPT = 2
| Set point SP |
|
||||
|---|---|---|---|---|---|
| Reset point rP |
|
||||
| Min. difference between SP and rP |
|
||||
| In steps of |
|
Status_B High Resolution / CMPT = 3
| Set point SP |
|
||||
|---|---|---|---|---|---|
| Reset point rP |
|
||||
| Min. difference between SP and rP |
|
||||
| In steps of |
|
Accuracy / deviations
| Switch point accuracy [% of the span] | < ± 0,5 |
|---|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the span] | < ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting) |
| Hysteresis deviation [% of the span] | < ± 0,25 |
| Long-term stability [% of the span] | < ± 0,05; (per 6 months) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,2; (-0...80 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,2; (-0...80 °C) |
Reaction times
| Response time [ms] | < 3 |
|---|---|
| Delay time programmable dS, dr [s] | 0...50 |
Software / programming
| Parameter setting options | hysteresis / window; normally open / closed; switching logic; switch-on/switch-off delay; Damping; Display unit |
|---|
Interfaces
