Ifm | SKU: IF-PN7072-E | Barcode: DOES NOT APPLY

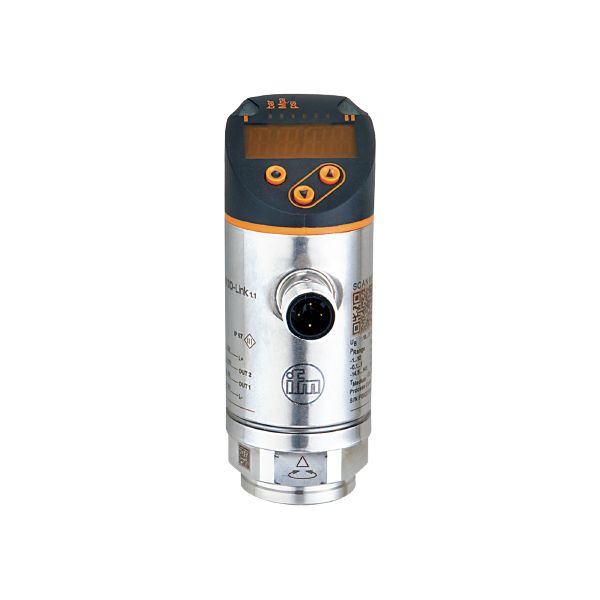

Ifm PN7072 Pressure Sensor With Display

Name: Ifm PN7072 Pressure Sensor With Display
Availability: BackOrder

$471.67 USD

Shipping calculated at checkout.

Ifm PN7072 Pressure Sensor With Display is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

0...100 bar

0...1450 psi

0...10 MPa

Process connection

threaded connection G 1/4 Internal thread

Application

System

gold-plated contacts

Measuring element

metallic thin film cell

Application

for industrial applications

Media

liquids and gases

Medium temperature [°C]

-25...80

Min. bursting pressure

1000 bar

14500 psi

100 MPa

Pressure rating

300 bar

4350 psi

30 MPa

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	18...30 DC; (to SELV/PELV)
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	0.3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]	< 170
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Measuring/setting range

Measuring range

0...100 bar

0...1450 psi

0...10 MPa

Factory setting / CMPT = 2

Set point SP

1...100 bar

10...1450 psi

0.1...10 MPa

Reset point rP

0.5...99.5 bar

5...1445 psi

0.05...9.95 MPa

Min. difference between SP and rP

0.5 bar

10 psi

0.05 MPa

In steps of

0.5 bar

5 psi

0.05 MPa

Status_B High Resolution / CMPT = 3

Set point SP

0.8...100 bar

12...1450 psi

0.08...10 MPa

Reset point rP

0.3...99.5 bar

5...1443 psi

0.03...9.95 MPa

Min. difference between SP and rP

0.5 bar

8 psi

0.05 MPa

In steps of

0.1 bar

1 psi

0.01 MPa

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5
Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]	< ± 0,25
Long-term stability [% of the span]	< ± 0,05; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	0,2; (-25...80 °C)
Temperature coefficient span [% of the span / 10 K]	0,2; (-25...80 °C)

Reaction times

Response time [ms]	< 3
Delay time programmable dS, dr [s]	0...50

Software / programming

Parameter setting options	hysteresis / window; normally open / closed; switching logic; switch-on/switch-off delay; Damping; Display unit

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
SIO mode	yes
