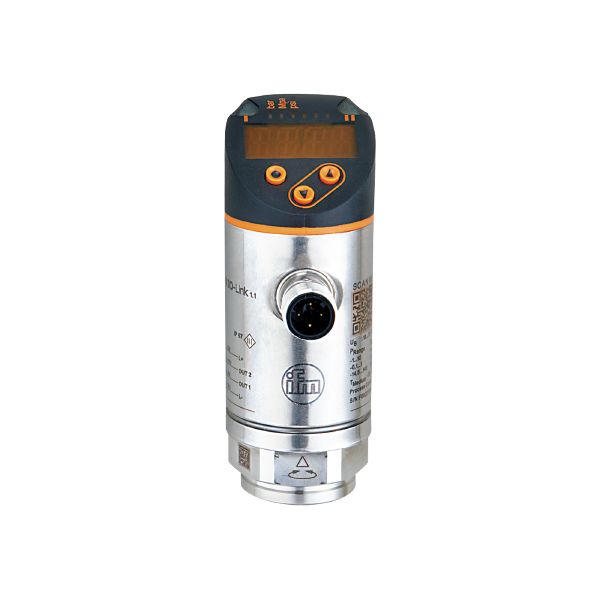

Ifm PN7012 Pressure Sensor With Display

Name: Ifm PN7012 Pressure Sensor With Display
Availability: BackOrder

$471.67 USD

Shipping calculated at checkout.

Ifm PN7012 Pressure Sensor With Display is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Number of inputs and outputs

Number of digital outputs: 2

Measuring range

0...160 bar

0...2322 psi

0...16 MPa

Process connection

threaded connection G 1/4 Internal thread

Application

System

gold-plated contacts

Measuring element

ceramic-capacitive pressure measuring cell

Application

for industrial applications

Media

liquids and gases

Conditionally suitable for

use in gases at pressures > 25 bar only on request

Medium temperature [°C]

-25...80

Min. bursting pressure

750 bar

10900 psi

75 MPa

Pressure rating

350 bar

5100 psi

35 MPa

Vacuum resistance [mbar]

-1000

Type of pressure

relative pressure

Electrical data

Operating voltage [V]	18...30 DC; (to SELV/PELV)
Current consumption [mA]	< 35
Min. insulation resistance [MΩ]	100; (500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Outputs

Total number of outputs	2
Output signal	switching signal; IO-Link; (configurable)
Electrical design	PNP/NPN
Number of digital outputs	2
Output function	normally open / closed; (configurable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	150; (200 (...60 °C) 250 (...40 °C))
Switching frequency DC [Hz]	< 170
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Measuring/setting range

Measuring range

0...160 bar

0...2322 psi

0...16 MPa

Set point SP

1.3...160 bar

19...2321 psi

0.13...16 MPa

Reset point rP

0.5...159.2 bar

7...2309 psi

0.05...15.92 MPa

Min. difference between SP and rP

0.8 bar

12 psi

0.08 MPa

In steps of

0.1 bar

1 psi

0.01 MPa

Accuracy / deviations

Switch point accuracy [% of the span]	< ± 0,5
Repeatability [% of the span]	< ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,25 (BFSL) / < ± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]	< ± 0,25
Long-term stability [% of the span]	< ± 0,05; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2; (0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,2; (0...80 °C)

Reaction times

Response time [ms]	< 3
Delay time programmable dS, dr [s]	0...50
Damping process value dAP [s]	0...4

Software / programming

Parameter setting options	hysteresis / window; normally open / closed; switching logic; switch-on/switch-off delay; Damping; Display unit

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)

SIO mode

yes

Required master port class

A; (when pin 2 not connected: B)

Min. process cycle time [ms]

IO-Link resolution pressure [bar]

0.05

IO-Link process data (cyclical)

Function	bit length
pressure	16
device status	4
binary switching information	2
