Ifm | SKU:
IF-PN4222-E

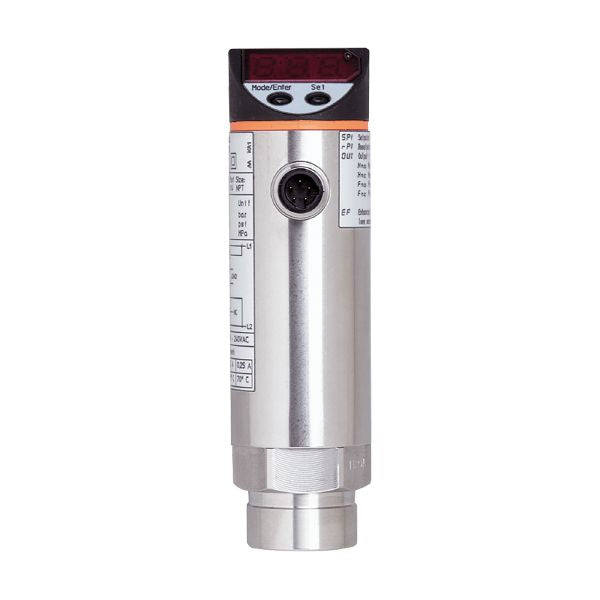

Ifm PN4222 Pressure Sensor With Display
$614.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm PN4222 Pressure Sensor With Display is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm PN4222 Pressure Sensor With Display
$614.44 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 | |||
|---|---|---|---|---|
| Measuring range |
|
|||
| Process connection | threaded connection 1/4" NPT Internal thread |
Application
| Application | for industrial applications | |||
|---|---|---|---|---|
| Media | liquids and gases | |||
| Conditionally suitable for | use in gases at pressures > 25 bar only on request | |||
| Medium temperature [°C] | -25...80 | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure |
Electrical data
| Operating voltage tolerance [%] | 5...10 |
|---|---|
| Operating voltage [V] | 90...250 AC |
| Nominal voltage AC [V] | < 250 |
| Current consumption [mA] | < 10 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | II |
| Reverse polarity protection | no |
| Power-on delay time [s] | 0.2 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal |
| Electrical design | Triac |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output AC [V] | 2 |
| Permanent current rating of switching output AC [mA] | 250; ((...70 °C) 1000 (...60 °C) 1500 (...45 °C) 2500 (...20 °C)) |
| Switching frequency AC [Hz] | < 160 |
| Short-circuit proof | no |
| Overload protection | no |
Measuring/setting range
| Measuring range |
|
|||
|---|---|---|---|---|
| Set point SP |
|
|||
| Reset point rP |
|
|||
| In steps of |
|
Accuracy / deviations
| Switch point accuracy [% of the span] | < ± 1,0 |
|---|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
| Linearity deviation [% of the span] | < ± 0,5 |
| Hysteresis deviation [% of the span] | < ± 0,1 |
| Long-term stability [% of the span] | < ± 0,1; (per year) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,2; (-25...80 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,3; (-25...80 °C) |
Reaction times
| Delay time programmable dS, dr [s] | 0, 0,2,...10, 11,...50 |
|---|---|
| Damping process value dAP [s] | 0...4 |
Software / programming
| Adjustment of the switch point | Programming button |
|---|---|
| Parameter setting options | hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| MTTF [years] | 225 | ||||||||
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight [g] | 358.4 |
|---|---|
| Material | stainless steel (1.4301 / 304); PC; PBT; PA; FKM |
