Ifm | SKU:
IF-PI1708-E

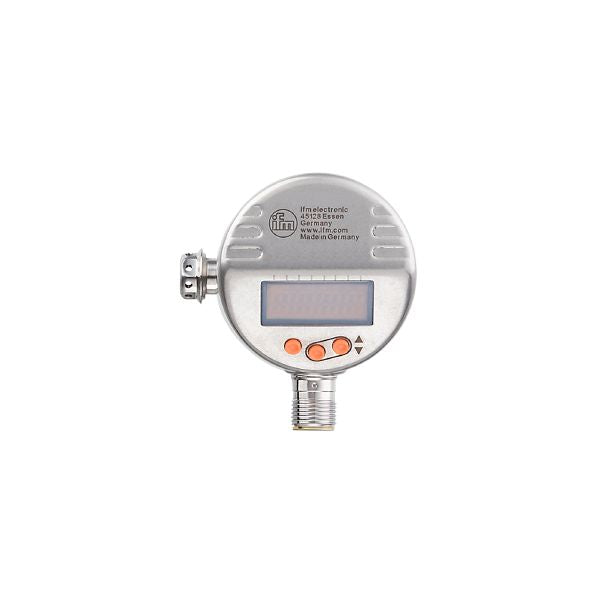

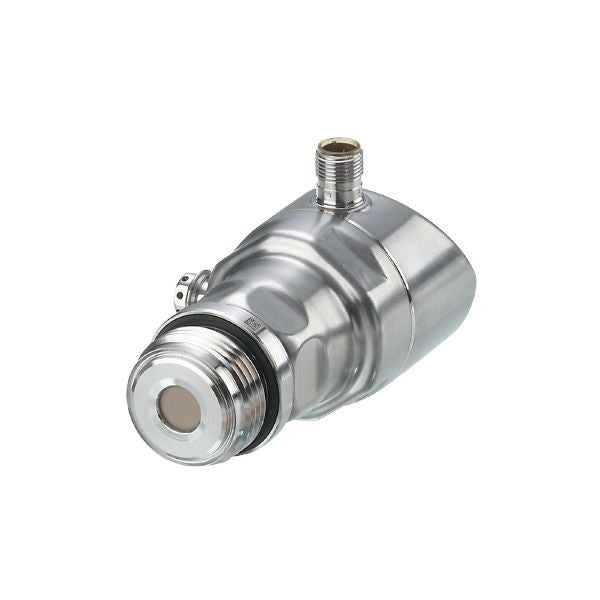

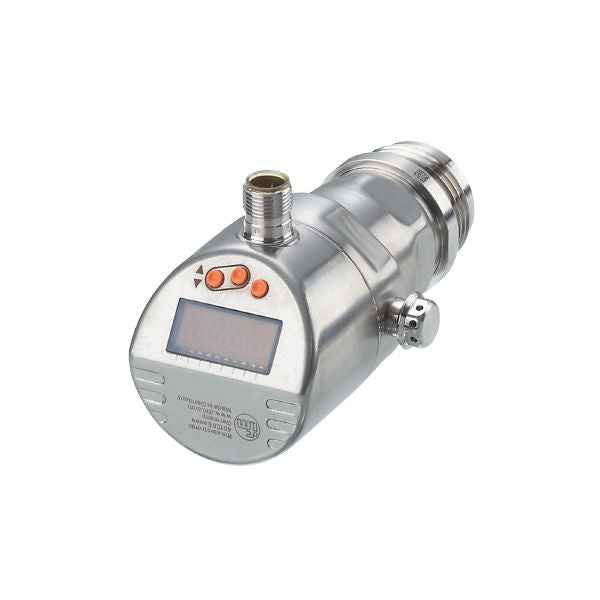

Ifm PI1708 Flush Pressure Sensor With Display
$774.44 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm PI1708 Flush Pressure Sensor With Display is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm PI1708 Flush Pressure Sensor With Display
$774.44 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 | ||||
|---|---|---|---|---|---|
| Measuring range |
|
||||
| Process connection | threaded connection G 1 external thread Aseptoflex Vario |
Application
| System | gold-plated contacts | |||
|---|---|---|---|---|
| Application | flush mountable for the food and beverage industry | |||
| Media | viscous media and liquids with suspended particles; liquids and gases | |||
| Medium temperature [°C] | -25...150 | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Vacuum resistance [mbar] | -1000 | |||
| Type of pressure | relative pressure; vacuum | |||
| No dead space | yes | |||
| MAWP (for applications according to CRN) [bar] | 6 |
Electrical data
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Integrated watchdog | yes |
2-wire
| Operating voltage [V] | 20...30 DC |
|---|---|
| Current consumption [mA] | 3.5...21.5 |
| Power-on delay time [s] | < 1 |
3-wire
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | 5...45; (430 bei max. Laststrom) |
| Power-on delay time [s] | < 0.5 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analog signal; IO-Link |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20, invertible; (scalable) |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
2-wire
| Max. load [Ω] | 300 |
|---|
3-wire
| Max. voltage drop switching output DC [V] | 2 |
|---|---|
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 125 |
| Max. load [Ω] | (Ub - 10 V) / 21,5 mA; 650 Ω (Ub = 24 V) |
Measuring/setting range
| Measuring range |
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Set point SP |
|
||||||||||||
| Reset point rP |
|
||||||||||||
| Analog start point |
|
||||||||||||
| Analog end point |
|
||||||||||||
| Min. difference between SP and rP |
|
||||||||||||
| In steps of |
|
||||||||||||
| Factory setting |
|
Temperature monitoring
| Measuring range |
|
|---|
Accuracy / deviations
| Switch point accuracy [% of the span] | < ± 0,2; (DIN EN IEC 62828-1; Turn down 1:1) |
|---|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) |
| Characteristics deviation [% of the s |
