Ifm | SKU: IF-O5S500-E | Barcode: DOES NOT APPLY

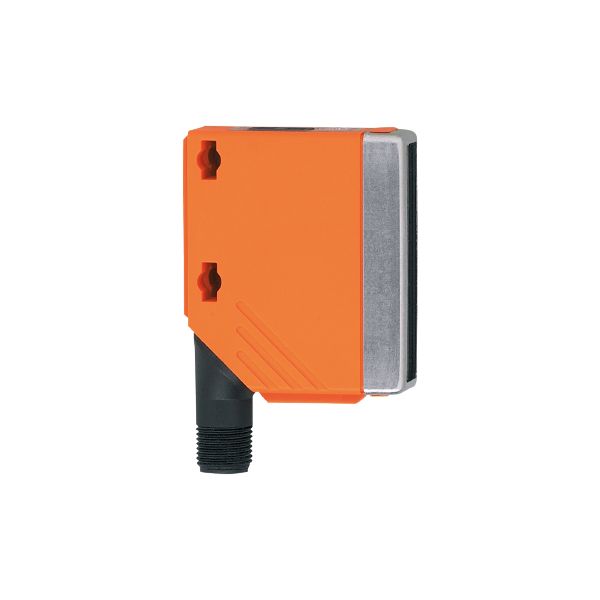

Ifm O5S500 Through-Beam Sensor Transmitter

Name: Ifm O5S500 Through-Beam Sensor Transmitter
Availability: BackOrder

$132.22 USD

Shipping calculated at checkout.

Ifm O5S500 Through-Beam Sensor Transmitter is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	20
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Monitoring range

Transmitter / receiver	transmitter
Range [m]	< 25
Range adjustable	no
Max. light spot diameter [mm]	625
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

617

Mechanical data

Weight [g]

65.5

Housing

rectangular

Dimensions [mm]

56 x 18.2 x 46.8

Material

housing: PA; Front framework: stainless steel; operator interface: TPU (urethane)

Lens material

PMMA

Lens alignment

Side sensing

Displays / operating elements

Display

Power

1 x LED, green

Remarks

cULus - Class 2 source required

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph
