Ifm | SKU:
IF-O5K500-E

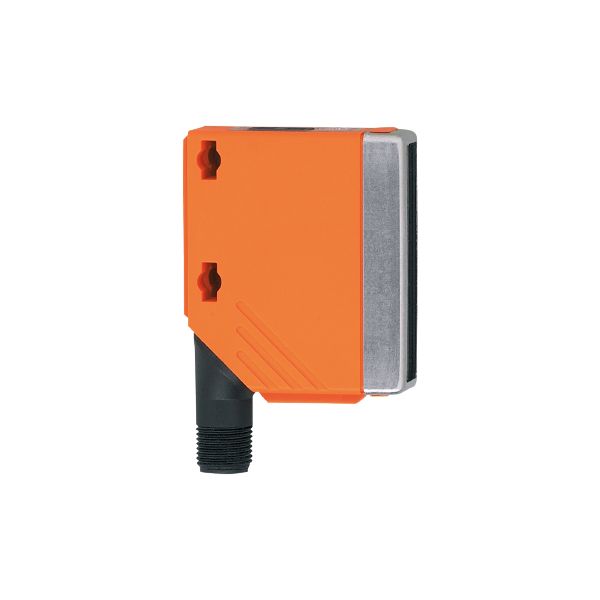

Ifm O5K500 Contrast Sensor
$328.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm O5K500 Contrast Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm O5K500 Contrast Sensor
$328.33 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light; green light; blue light |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 50; ((24 V)) |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light; green light; blue light |
| Wave length [nm] | 625; 525; 465 |
Outputs
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 10000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range [mm] | 18...22 |
|---|---|
| Max. light spot width [mm] | 1.5 |
| Max. light spot height [mm] | 5 |
Reaction times
| Response time [ms] | < 0.05 |
|---|
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 568 |
Mechanical data
| Weight [g] | 79.5 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 56 x 18.2 x 46.8 | |
| Material | housing: PA; Front framework: stainless steel; operator interface: TPU / PC | |
| Lens material |
|
|
| Lens alignment | Side sensing |
Displays / operating elements
| Display |
|
||
|---|---|---|---|
| Teach function | yes | ||
| Electronic lock | yes |
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: 1 x M12; coding: A |
