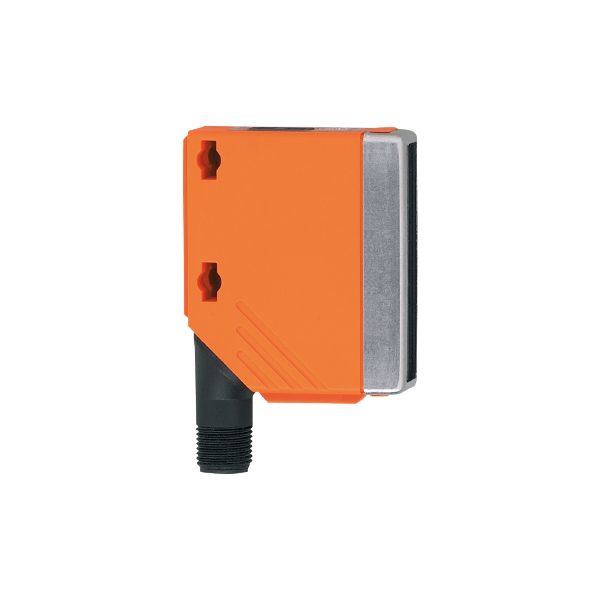

Ifm O5G500 Retro-Reflective Sensor For The Detection Of Transparent Objects
Ifm O5G500 Retro-Reflective Sensor For The Detection Of Transparent Objects is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm O5G500 Retro-Reflective Sensor For The Detection Of Transparent...
| Type of light | red light |
|---|---|
| Housing | rectangular |
| System | polarization filter; Function check output |
|---|---|
| Function principle | Retro-reflective sensor |
| Operating voltage [V] | 10...36 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Function check output | yes |
| Max. voltage drop of function check output [V] | 2.5 |
| Max. current load for function check output [mA] | 50 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Range referred to prismatic reflector [m] | 0...3; (Prismatic reflector 100 x 100 mm E20454) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter [mm] | 80 |
| Light spot dimensions refer to | at maximum range |
| Polarization filter available | yes |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 405 |
| Weight [g] | 73 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 56 x 18.2 x 46.8 | |
| Material | housing: PA; Front framework: stainless steel; operator interface: TPU (urethane) | |
| Lens material |
|
|
| Lens alignment | Side sensing |
| Display |
|
||||
|---|---|---|---|---|---|
| Teach function | yes | ||||
| Electronic lock | yes |
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
|
excess gain graph
|
|
|---|
