Ifm | SKU:
IF-O5E51A-E

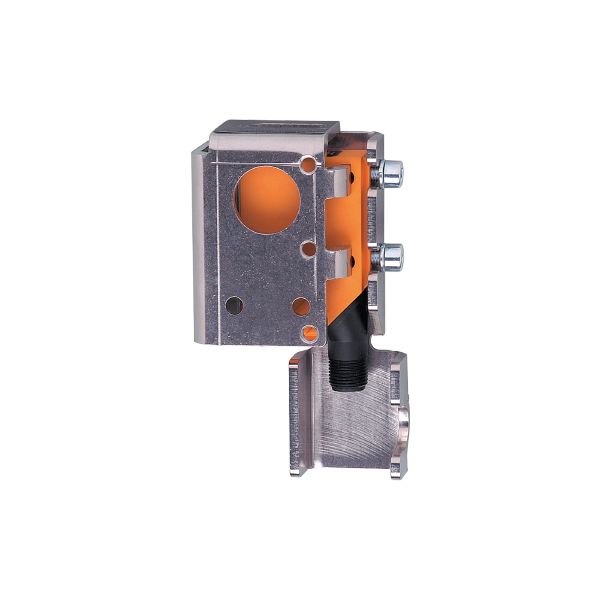

Ifm O5E51A Through-Beam Sensor Receiver
$208.89 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm O5E51A Through-Beam Sensor Receiver is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm O5E51A Through-Beam Sensor Receiver
$208.89 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC; (when used outside the hazardous area: 10...36) |
|---|---|
| Current consumption [mA] | 11 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100; (when used outside the hazardous area: 200) |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Transmitter / receiver | receiver |
|---|---|
| Range [m] | < 25 |
| Range adjustable | yes |
Operating conditions
| Ambient temperature [°C] | -10...50 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Protection | IP 65 |
Tests / approvals
| ATEX marking |
|
||
|---|---|---|---|
| EMC |
|
||
| MTTF [years] | 801 |
Mechanical data
| Weight [g] | 336 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 105 x 30 x 62 | |
| Material | housing: PA; Front framework: stainless steel; operator interface: TPU (urethane); Protective cover: stainless steel | |
| Lens material |
|
|
| Lens alignment | Side sensing |
Displays / operating elements
| Display |
|
||
|---|---|---|---|
| Teach function | yes | ||
| Electronic lock | yes |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
|
excess gain graph
|
|
|---|
