Ifm | SKU:
IF-O4H201-E

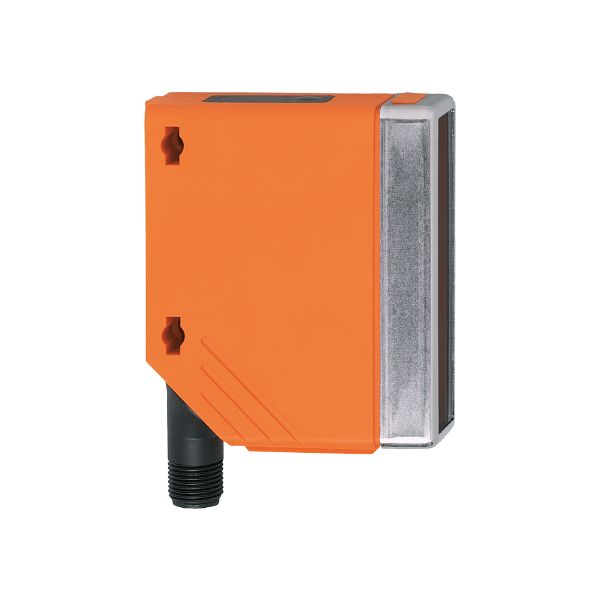

Ifm O4H201 Diffuse Reflection Sensors With Background Suppression
$183.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm O4H201 Diffuse Reflection Sensors With Background Suppression is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm O4H201 Diffuse Reflection Sensors With Background Suppression
$183.33 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| System | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage [V] | 10...36 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range [mm] | 100...2000; (white paper 200 x 200 mm 90 % remission) |
|---|---|
| Range on white object (90 % remission) [mm] | 100...2000 |
| Range on grey object (18 % remission) [mm] | 100...1100 |
| Range on black object (6 % remission) [mm] | 100...700 |
| Range adjustable | yes |
| Max. light spot diameter [mm] | 100 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 326 |
Mechanical data
| Weight [g] | 121.5 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 74.4 x 27 x 63.8 | |
| Material | housing: PA; Front framework: stainless steel; operator interface: TPE / PC | |
| Lens material |
|
|
| Lens alignment | Side sensing |
Displays / operating elements
| Display |
|
||
|---|---|---|---|
| Operating elements |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
|
|
|
|---|
|
Background suppression chart
|
|
|---|
