Ifm | SKU: IF-O1D209-E | Barcode: DOES NOT APPLY

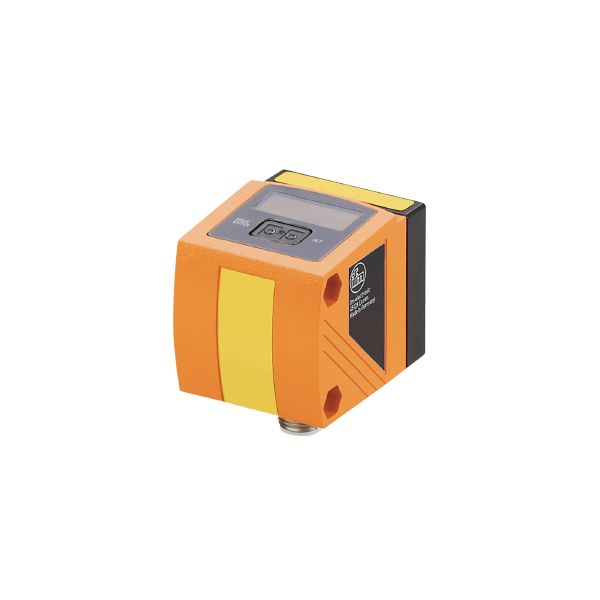

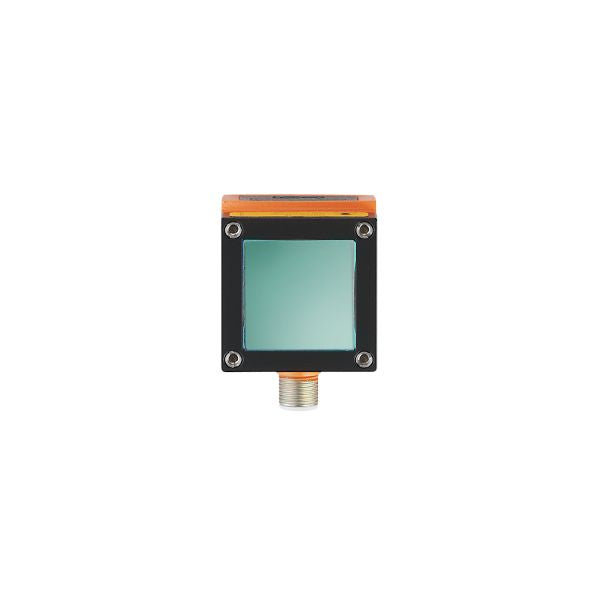

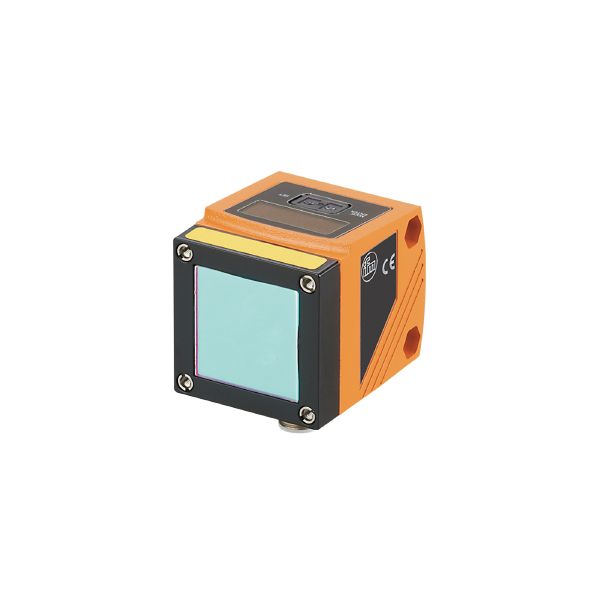

Ifm O1D209 Laser Distance Sensor

Name: Ifm O1D209 Laser Distance Sensor
Availability: BackOrder

$680.56 USD

Shipping calculated at checkout.

Ifm O1D209 Laser Distance Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Laser protection class	2
Housing	rectangular

Electrical data

Operating voltage [V]	18...30 DC; (cULus - Class 2 source required)
Current consumption [mA]	< 150
Protection class	III
Reverse polarity protection	yes
Typ. lifetime [h]	50000

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analog outputs: 1

Outputs

Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / closed; (programmable)
Max. current load per output [mA]	200
Number of analog outputs	1
Analog current output [mA]	4...20; (IEC 61131-2)
Max. load [Ω]	250
Analog voltage output [V]	0...10; (IEC 61131-2)
Min. load resistance [Ω]	5000
Short-circuit protection	yes
Type of short-circuit protection	yes (non-latching)
Overload protection	yes

Monitoring range

Max. light spot width [mm]	200
Max. light spot height [mm]	200
Light spot dimensions refer to	100 m
Background suppression [m]	100...600

Measuring/setting range

Measuring range [m]	1...100; (Reflector)
Sampling rate [Hz]	1...25

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

Laser protection class

Notes on laser protection

Caution:	Laser light
Power:	<= 4,0 mW
Wave length:	650 nm
pulse:	1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:	2
	EN / IEC60825-1:2007
	EN / IEC60825-1:2014
	Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.

MTTF [years]

186

Mechanical data

Weight [g]	314
Housing	rectangular
Dimensions [mm]	59 x 42 x 52
Material	housing: diecast zinc; front lens: glass; LED window: PC
Lens alignment	Side sensing

Displays / operating elements

Display

Switching status	2 x LED, yellow
Power	LED, green
Distance, programming	alphanumeric display, 4-digit

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
