Ifm | SKU:
IF-O1D100-E

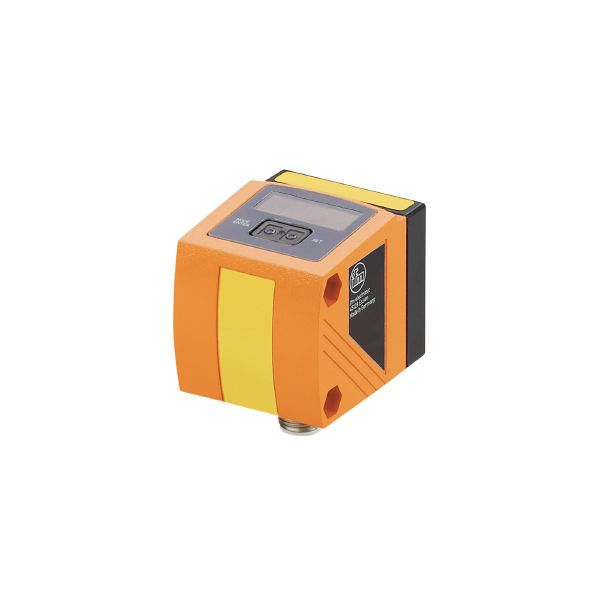

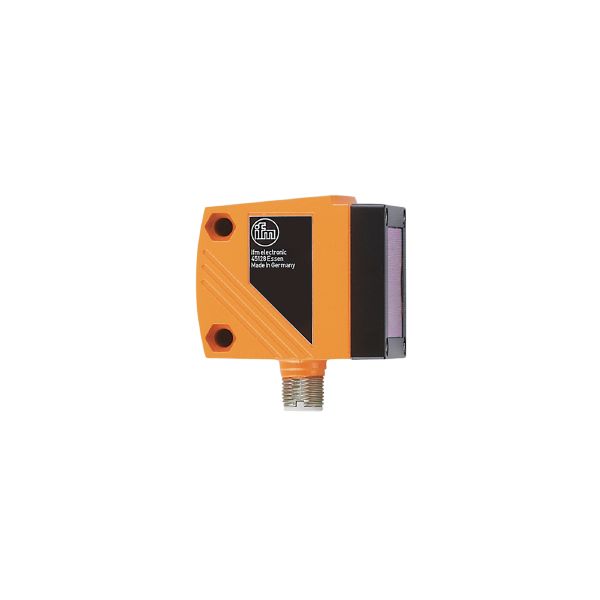

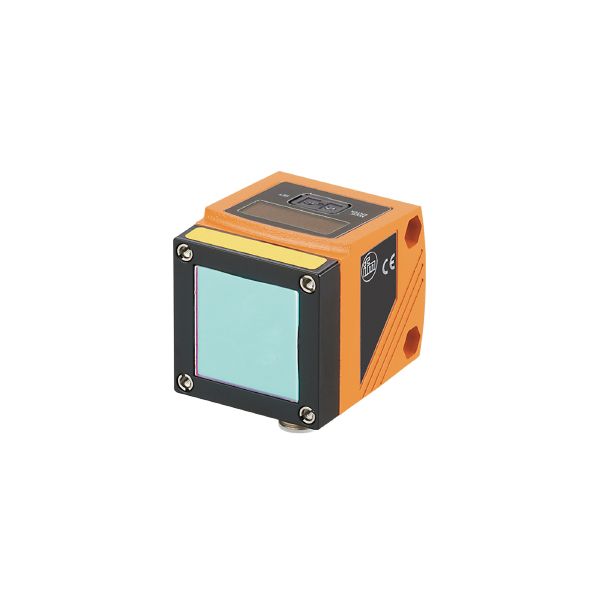

Ifm O1D100 Laser Distance Sensor
$600.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm O1D100 Laser Distance Sensor is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm O1D100 Laser Distance Sensor
$600.00 USD
Unit price
/
Unavailable
Product characteristics
| Laser protection class | 2 |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage [V] | 18...30 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analog outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. current load per output [mA] | 200 |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20; (IEC 61131-2) |
| Max. load [Ω] | 250 |
| Analog voltage output [V] | 0...10; (IEC 61131-2) |
| Min. load resistance [Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Max. light spot width [mm] | 15 |
|---|---|
| Max. light spot height [mm] | 15 |
| Light spot dimensions refer to | 10 m |
| Background suppression [m] | 0...19 |
Measuring/setting range
| Measuring range [m] | 0.2...10; (white paper 200 x 200 mm 90 % remission) |
|---|---|
| Sampling rate [Hz] | 1...50 |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis | ||||
| SIO mode | yes | ||||
| Required master port class | A | ||||
| Process data analog | 2 | ||||
| Process data binary | 3 | ||||
| Min. process cycle time [ms] | 6 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -10...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Laser protection class | 2 | ||||||||||||||||||||
| Notes on laser protection |
|
||||||||||||||||||||
| MTTF [years] | 182 |
Mechanical data
| Weight [g] | 243.5 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 59 x 42 x 52 |
| Material | housing: diecast zinc; front lens: glass; LED window: PC |
| Lens alignment | Side sensing |
Displays / operating elements
| Display |
|
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Other data
| Parameter | Setting range | Factory setting |
| Uni | mm, m, inch | mm |
| OU1 | Hno, Hnc, Fno, Fnc | Hno |
| SP1 [mm] | 200...9999 | 1000 |
| nSP1 [mm] | 200...9999< |
