Ifm | SKU: IF-NS5002-E | Barcode: DOES NOT APPLY

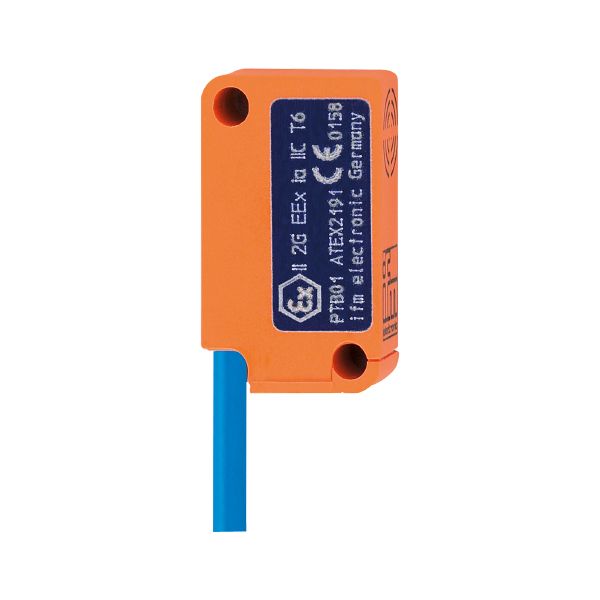

Ifm NS5002 Induktiver Namur-Sensor

Name: Ifm NS5002 Induktiver Namur-Sensor
Availability: BackOrder

$120.00 USD

Shipping calculated at checkout.

Ifm NS5002 Induktiver Namur-Sensor is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Electrical design	NAMUR
Output function	normally closed
Sensing range [mm]	2
Housing	rectangular
Dimensions [mm]	28 x 10 x 16

Electrical data

Connection at circuit amplifier	yes
Switching amplifiers	connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]	8.2; (1kΩ)
Supply voltage DC [V]	7.5...30; (when used outside the hazardous area)
Current consumption [mA]	< 1; (disabled; conductive: > 2,1)

Outputs

Electrical design	NAMUR
Output function	normally closed
Permanent current rating of switching output DC [mA]	30; (when used outside the hazardous area)
Switching frequency DC [Hz]	800

Monitoring range

Sensing range [mm]	2
Real sensing range Sr [mm]	2 ± 10 %

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...70
Protection	IP 67

Tests / approvals

Approval

PTB 01 ATEX 2191; BVS 04 ATEX E 153 X; IECEX BVS 06.0003X

ATEX marking

II 1G Ex ia IIB T6 Ga Ta -20...70°C

II 1G Ex ia IIB T5 Ga Ta -20...80°C

II 2G Ex ia IIC T6 Gb Ta -20...70°C

II 2G Ex ia IIC T5 Gb Ta -20...80°C

II 1D Ex ia IIIC T20090°C Da Ta: -20...70°C

II 1D Ex ia IIIC T200100° C Da Ta: -20...80°C

EMC

EN 60947-5-6

Shock/vibration resistance

30 g (11 ms) / 10-55 Hz (1 mm)

MTTF [years]

4776

Safety classification

Max. internal capacitance [nF]	80
Max. internal inductance [µH]	110

Mechanical data

Weight [g]	85
Housing	rectangular
Mounting	flush mountable
Dimensions [mm]	28 x 10 x 16
Material	PBT

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 2 x 0.14 mm²
