Ifm | SKU:
IF-NN5008-E

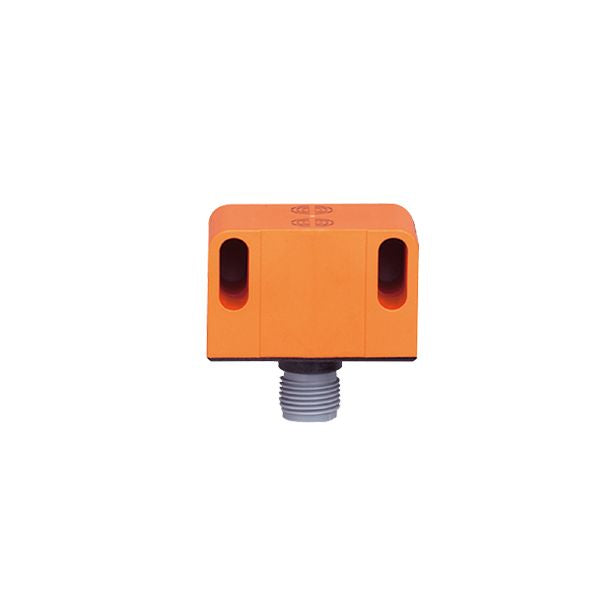

Ifm NN5008 Inductive Namur Dual Sensor For Valve Actuators
$156.11 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm NN5008 Inductive Namur Dual Sensor For Valve Actuators is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm NN5008 Inductive Namur Dual Sensor For Valve Actuators
$156.11 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | 2 x normally closed |
| Sensing range [mm] | 4 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 26 x 26 |
Electrical data
| Connection at circuit amplifier | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC [V] | 8.2; (1kΩ) |
| Supply voltage DC [V] | 7.5...15 |
| Current consumption [mA] | < 1; (disabled; conductive: > 2,1) |
| Protection class | III |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | 2 x normally closed |
| Switching frequency DC [Hz] | 1800 |
Monitoring range
| Sensing range [mm] | 4 |
|---|---|
| Real sensing range Sr [mm] | 4 ± 10 % |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Approval | DMT 02 ATEX E 028; BVS 04 ATEX E 153 X; IECEx BVS 06.0003X; TIIS TC22886 | ||
|---|---|---|---|
| ATEX marking |
|
||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
|
|
|||
| EMC |
|
||
| Shock/vibration resistance | 30 g (11 ms) / 10-55 Hz (1 mm) | ||
| MTTF [years] | 1253 |
Safety classification
| Max. internal capacitance [nF] | 140; (per intrinsically safe electric circuit) |
|---|---|
| Max. internal inductance [µH] | 130; (per intrinsically safe electric circuit) |
Mechanical data
| Weight [g] | 67 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 26 x 26 |
| Material | housing: PBT; cover: PC |
| Tightening torque [Nm] | 0.6...1.5; (knurled nut) |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
